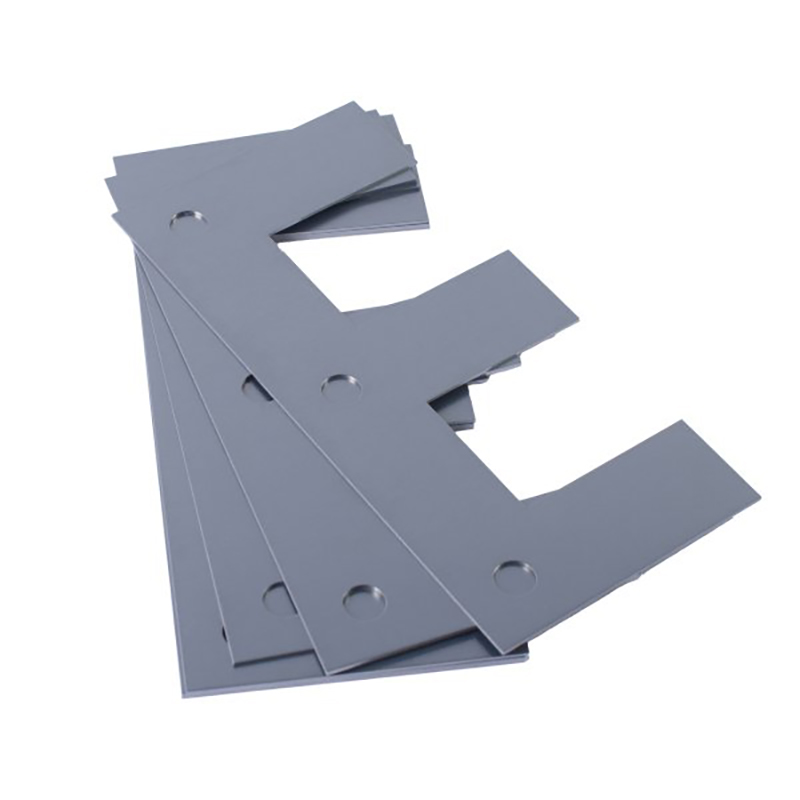

El Silicon Steel
El silicon steel sheet is made of Baosteel, Z11 new day iron, new rolled steel, stable perfomance, and high quality.
The malenal is H5. H20.H18. H14.H12. H9.241.240.7hickness of023mm.027mm.0.3mm.0.35mm 05mm.The main products are Elivpe. uvoe. F ivpe. and rina ivoe.
| Type | a | b | c | d | e | holes |
| EI-28 | 28 | 4 | 6 | 8 | 17 | |
| EI-35 | 35 | 5 | 7.5 | 10 | 19.5 | |
| El-41 | 41 | 6 | 8 | 13 | 21 | |
| EI-42 | 42 | 7 | 7 | 7 | 14 | |
| El-48 | 48 | 8 | 8 | 16 | 24 | |
| EI-50 | 50 | 8 | 9 | 16 | 25.5 | |
| EI-57 | 57 | 9.5 | 9.5 | 19 | 28.5 | 4 |
| EI-60 | 60 | 10 | 10 | 20 | 30 | 4 |
| El-66 | 66 | 11 | 11 | 22 | 33 | 4 |
| EI-76.2 | 76.2 | 12.7 | 12.7 | 25.4 | 38.1 | 4 |
| El-78 | 78 | 13 | 13 | 26 | 39 | 4 |
| EI-84 | 84 | 14 | 14 | 28 | 41 | 4 |
| EI-85.8 | 85.8 | 14.3 | 14.3 | 28.6 | 42.9 | 4 |
| EI-96 | 96 | 16 | 16 | 32 | 48 | 4 |
| EI-105 | 105 | 17.5 | 17.5 | 35 | 52.5 | 4 |
| El-108 | 108 | 18 | 18 | 36 | 54 | 4 |
| El-114 | 114 | 19 | 19 | 38 | 57 | 4 |
| EI-120 | 120 | 20 | 20 | 40 | 60 | 4 |

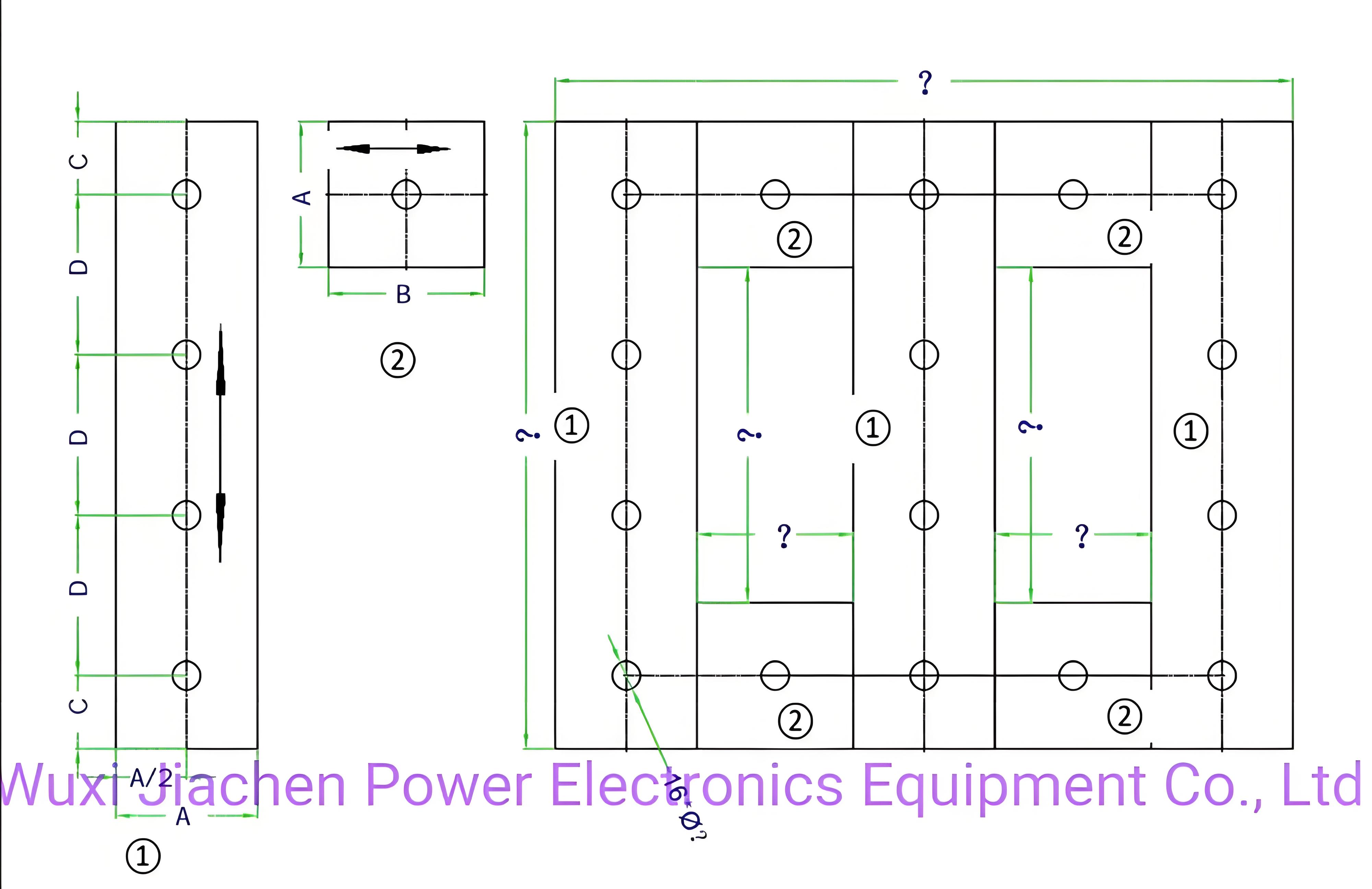

Ordering Instruction
Note:
If you want order assembly coreS, please offer detailed/full set of drawingwitclampers and1nSulat1OTS
| Item | Size (Must offer) | Material (Grade) | Stacked Height | Hole Size | Hole Qty. | Quantity (kg/Set) |
| ① | A *(2C+3D) Or designed size | Should Show in DWG | ||||
| ② | A*B | Should Show in DWG | ||||
