Price Concessions.
Our company's product price is in the middle level of the industry, and is famous for its high cost performance. There is still a lot of room for price. We look forward to your demand. We will give you a most suitable quotation.
Delivery on time and stable cooperation. Jiachen has had five years of trade experience since its establishment in 2014. Good service is a constant requirement and has always done so. You can rest assured of our promptness of delivery and the flexibility of expanding supply.
Service is trustworthy. We have been a high-quality supplier of made-in-china network, has been committed to foreign trade, foreign trade capacity has been audited by made-in-china network. s. We sincerely and warmly welcome you to visit and give advice to improve our shortcomings, learn new technologies, improve product performance, and mutual benefit.

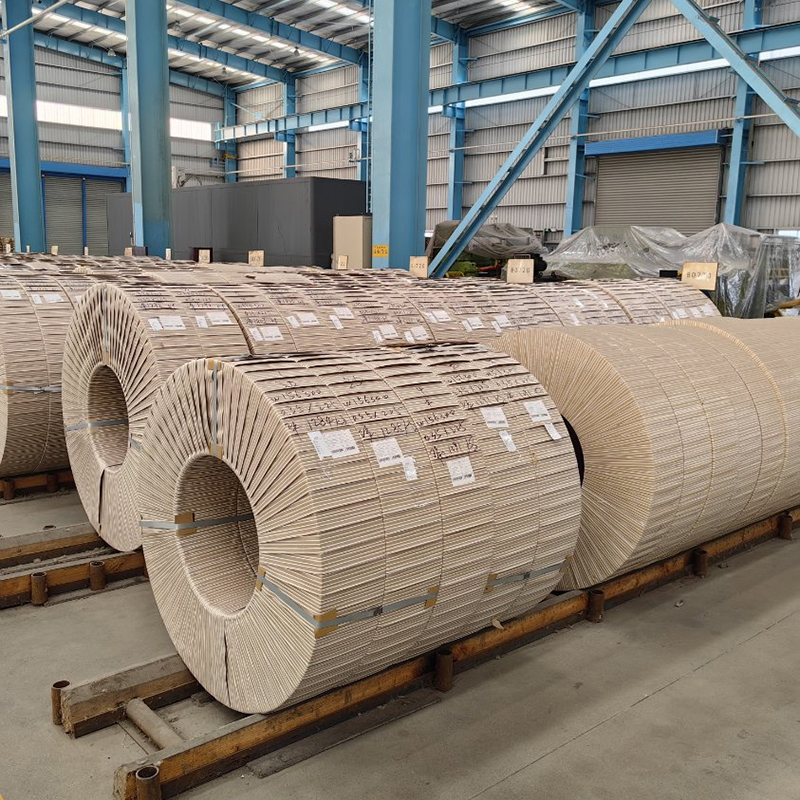

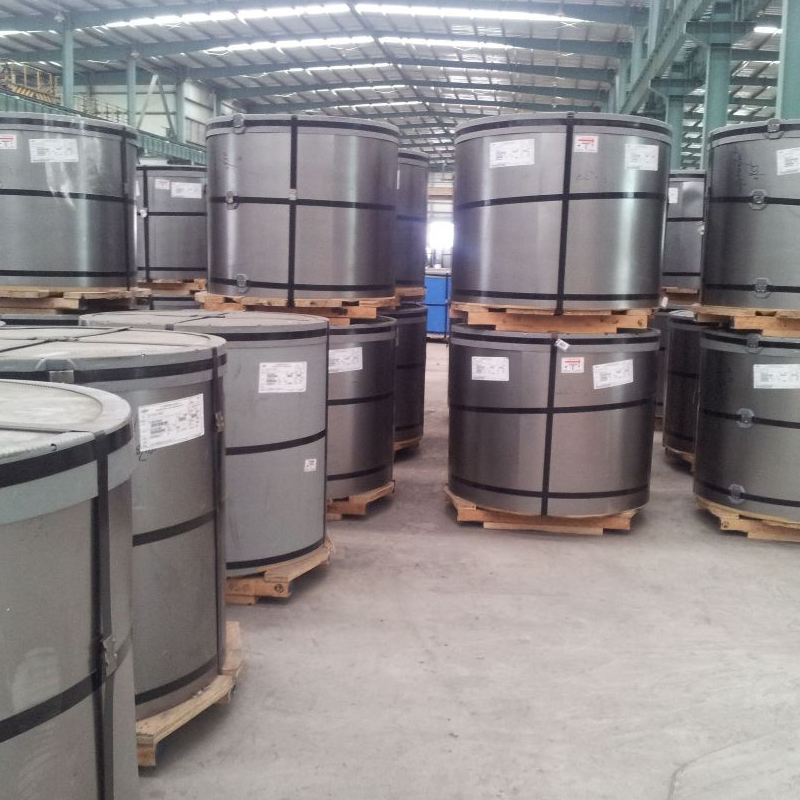

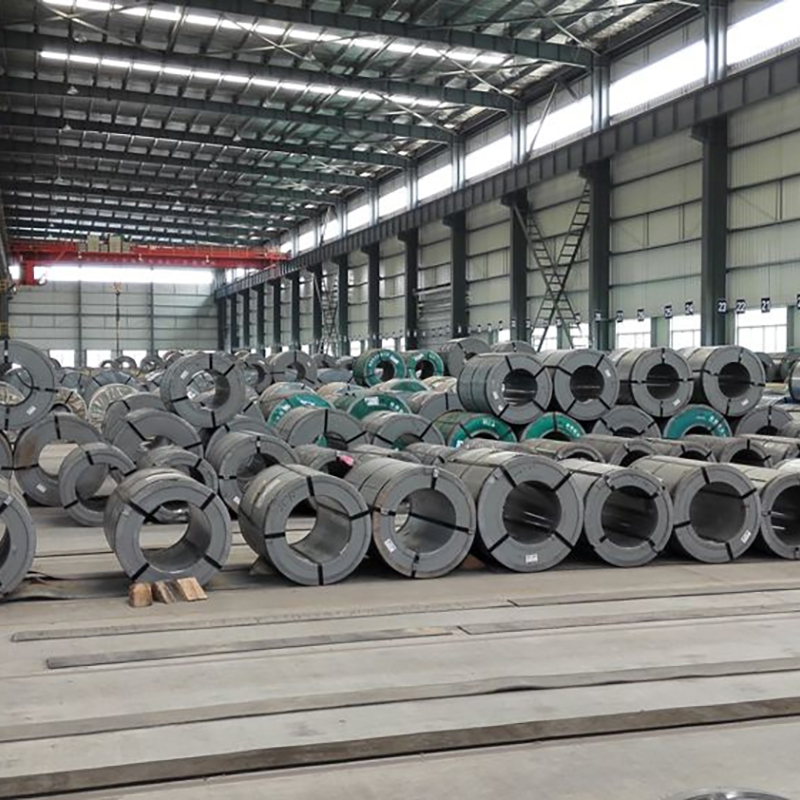

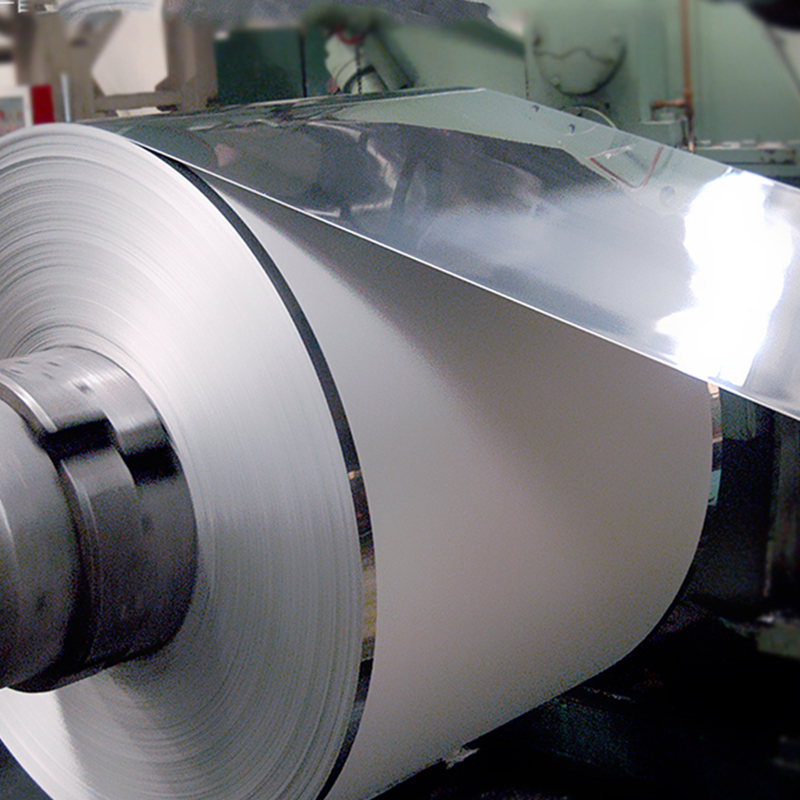

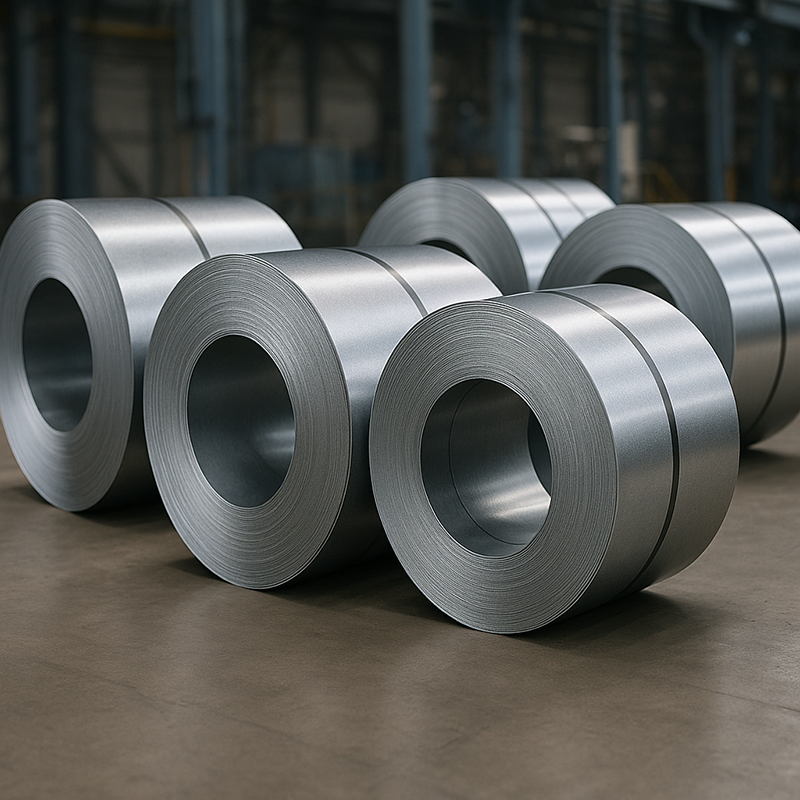

| Cold-rolled Grain-oriented (CRGO) | |||||
| Brand : | BAOSTEEL & WISCO Nippon Steel & AK (Detecting Basis GB/T3655-2022) | ||||
| Note: | P17/50 means core loss of sample per kg at max.magnetic induction 1.7T and frequency 50HZ B8 means magnetic induction corresponding to 800A/m magnetic field intensity | ||||
| Type | Grade | Thickness(mm) | Available Width range(mm) | P17/50Max. Core Loss (W/kg) | B8Min.Induction(T) |
| Common Type | B23G110 | 0.23 | 4mm-1200mm | 1.10 | 1.80 |
| B27G120 | 0.27 | 1.20 | 1.80 | ||
| B30G120 | 0.30 | 1.20 | 1.80 | ||
| B30G130 | 1.30 | 1.80 | |||
| B30G140 | 1.40 | 1.80 | |||
| B35G135 | 0.35 | 1.35 | 1.80 | ||
| B35G145 | 1.45 | 1.80 | |||
| B35G155 | 1.55 | 1.80 | |||
| High Induction Type | B23P090 | 0.23 | 0.90 | 1.87 | |
| B23P095 | 0.95 | 1.87 | |||
| B23P100 | 1.00 | 1.87 | |||
| B27P095 | 0.27 | 0.95 | 1.88 | ||
| B27P100 | 1.00 | 1.88 | |||
| B27P110 | 1.10 | 1.88 | |||
| B30P100 | 0.30 | 1.00 | 1.88 | ||
| B30P105 | 1.05 | 1.88 | |||
| B30P110 | 1.10 | 1.88 | |||
| B30P120 | 1.20 | 1.88 | |||
| B35P135 | 0.35 | 1.35 | 1.88 | ||
| B35P155 | 1.55 | 1.88 | |||
| Domain Refined High Induction Type | B23R080 | 0.23 | 0.80 | 1.87 | |
| B23R085 | 0.85 | 1.87 | |||
| B23R090 | 0.90 | 1.87 | |||
| B27R090 | 0.27 | 0.90 | 1.87 | ||
| B27R095 | 0.95 | 1.87 | |||
| Nominal thickness: 0.1mm; 0.18mm; 0.20mm; 0.23mm; 0.27mm; 0.30mm; 0.35mm; 0.5mm | |||||
| Standard | EN 10107; IEC 60404; ASTM; DIN; GB/T 2521.2-2016; ISO 7785-1/-2; JIS C 2552 | ||||
| Surface coating | Commonly used C6/C9; Surface resistance (Ω) C6:>10^2(800°C without peeling) C9:>10^4(320°C without peeling) | ||||
| Application | Power Transformers; Distribution Transformers; Instrument Transformers;High-Voltage Reactors; Shunt Reactors; Uninterruptible Power Supplies (UPS); Large Inductors/Chokes | ||||
Price Concessions.
Our company's product price is in the middle level of the industry, and is famous for its high cost performance. There is still a lot of room for price. We look forward to your demand. We will give you a most suitable quotation.
Delivery on time and stable cooperation. Jiachen has had five years of trade experience since its establishment in 2014. Good service is a constant requirement and has always done so. You can rest assured of our promptness of delivery and the flexibility of expanding supply.
Service is trustworthy. We have been a high-quality supplier of made-in-china network, has been committed to foreign trade, foreign trade capacity has been audited by made-in-china network. s. We sincerely and warmly welcome you to visit and give advice to improve our shortcomings, learn new technologies, improve product performance, and mutual benefit.
| Cold-rolled Grain-oriented (CRGO) | |||||
| Brand : | BAOSTEEL & WISCO Nippon Steel & AK (Detecting Basis GB/T3655-2022) | ||||
| Note: | P17/50 means core loss of sample per kg at max.magnetic induction 1.7T and frequency 50HZ B8 means magnetic induction corresponding to 800A/m magnetic field intensity | ||||
| Type | Grade | Thickness(mm) | Available Width range(mm) | P17/50Max. Core Loss (W/kg) | B8Min.Induction(T) |
| Common Type | B23G110 | 0.23 | 4mm-1200mm | 1.10 | 1.80 |
| B27G120 | 0.27 | 1.20 | 1.80 | ||
| B30G120 | 0.30 | 1.20 | 1.80 | ||
| B30G130 | 1.30 | 1.80 | |||
| B30G140 | 1.40 | 1.80 | |||
| B35G135 | 0.35 | 1.35 | 1.80 | ||
| B35G145 | 1.45 | 1.80 | |||
| B35G155 | 1.55 | 1.80 | |||
| High Induction Type | B23P090 | 0.23 | 0.90 | 1.87 | |
| B23P095 | 0.95 | 1.87 | |||
| B23P100 | 1.00 | 1.87 | |||
| B27P095 | 0.27 | 0.95 | 1.88 | ||
| B27P100 | 1.00 | 1.88 | |||
| B27P110 | 1.10 | 1.88 | |||
| B30P100 | 0.30 | 1.00 | 1.88 | ||
| B30P105 | 1.05 | 1.88 | |||
| B30P110 | 1.10 | 1.88 | |||
| B30P120 | 1.20 | 1.88 | |||
| B35P135 | 0.35 | 1.35 | 1.88 | ||
| B35P155 | 1.55 | 1.88 | |||
| Domain Refined High Induction Type | B23R080 | 0.23 | 0.80 | 1.87 | |
| B23R085 | 0.85 | 1.87 | |||
| B23R090 | 0.90 | 1.87 | |||
| B27R090 | 0.27 | 0.90 | 1.87 | ||
| B27R095 | 0.95 | 1.87 | |||
| Nominal thickness: 0.1mm; 0.18mm; 0.20mm; 0.23mm; 0.27mm; 0.30mm; 0.35mm; 0.5mm | |||||
| Standard | EN 10107; IEC 60404; ASTM; DIN; GB/T 2521.2-2016; ISO 7785-1/-2; JIS C 2552 | ||||
| Surface coating | Commonly used C6/C9; Surface resistance (Ω) C6:>10^2(800°C without peeling) C9:>10^4(320°C without peeling) | ||||
| Application | Power Transformers; Distribution Transformers; Instrument Transformers;High-Voltage Reactors; Shunt Reactors; Uninterruptible Power Supplies (UPS); Large Inductors/Chokes | ||||
1. Where is your company located?
Wuxi Jiachen Power Electronics Equipment Co., Ltd. was established in 2014 and is located in Wuxi City. The transportation is very convenient; it will only take you about 15 minutes from Wuxi East Super-Speed Railway Station, and about 20 minutes from Wuxi Shuofang Airport.
2. What types of steel products do you supply?
We mainly supply CRGO &CRNGO materials, as well as customized transformer cores, etc.
3. What are your manufacturing facilities?
We have factories, processing centers, and warehouses for better quality control and efficient order fulfillment.
4. How do you ensure product quality?
We carefully select manufacturing partners and conduct thorough tests and pre-loading and pre-shipment inspections to ensure high-quality products.
5. Do you offer certifications for your products?
Yes, our products comply with international standards and certifications upon request.
6. What payment terms do you offer?
We offer flexible payment terms to accommodate clients' needs.
7. What is your capacity for supplying products?
With our own facilities and inventory management, we can efficiently supply products of varying quantities.
8. Can you handle customized orders or specific requirements?
Certainly, we specialize in handling customized orders and meeting specific requirements.
9. What are your shipping and delivery capabilities?
We have a reliable logistics network for global delivery of our products.Normally, the delivery date is 7~15 days after T/T prepayment or L/C date.
10. How can clients get in touch with your company?
For inquiries or e-mail , clients can contact us directly and our sales team is ready to assist promptly.
1. Where is your company located?
Wuxi Jiachen Power Electronics Equipment Co., Ltd. was established in 2014 and is located in Wuxi City. The transportation is very convenient; it will only take you about 15 minutes from Wuxi East Super-Speed Railway Station, and about 20 minutes from Wuxi Shuofang Airport.
2. What types of steel products do you supply?
We mainly supply CRGO &CRNGO materials, as well as customized transformer cores, etc.
3. What are your manufacturing facilities?
We have factories, processing centers, and warehouses for better quality control and efficient order fulfillment.
4. How do you ensure product quality?
We carefully select manufacturing partners and conduct thorough tests and pre-loading and pre-shipment inspections to ensure high-quality products.
5. Do you offer certifications for your products?
Yes, our products comply with international standards and certifications upon request.
6. What payment terms do you offer?
We offer flexible payment terms to accommodate clients' needs.
7. What is your capacity for supplying products?
With our own facilities and inventory management, we can efficiently supply products of varying quantities.
8. Can you handle customized orders or specific requirements?
Certainly, we specialize in handling customized orders and meeting specific requirements.
9. What are your shipping and delivery capabilities?
We have a reliable logistics network for global delivery of our products.Normally, the delivery date is 7~15 days after T/T prepayment or L/C date.
10. How can clients get in touch with your company?
For inquiries or e-mail , clients can contact us directly and our sales team is ready to assist promptly.
