Wound Core

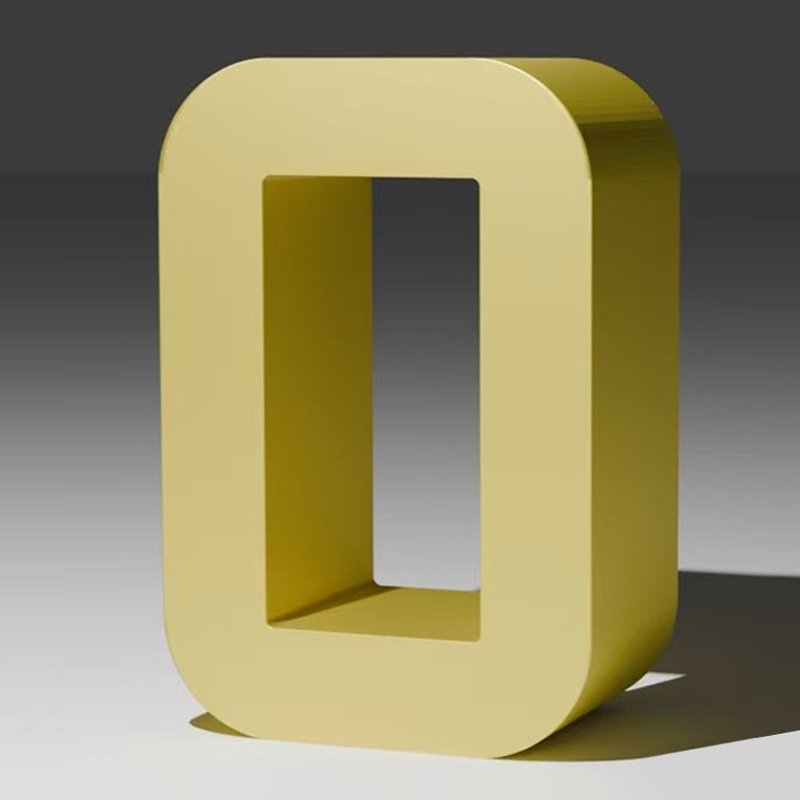

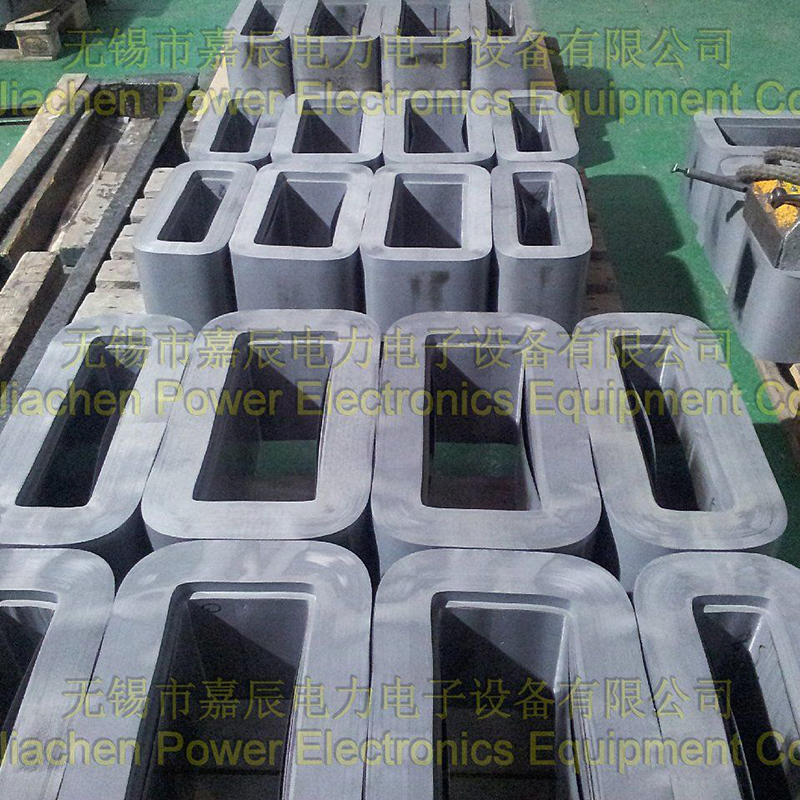

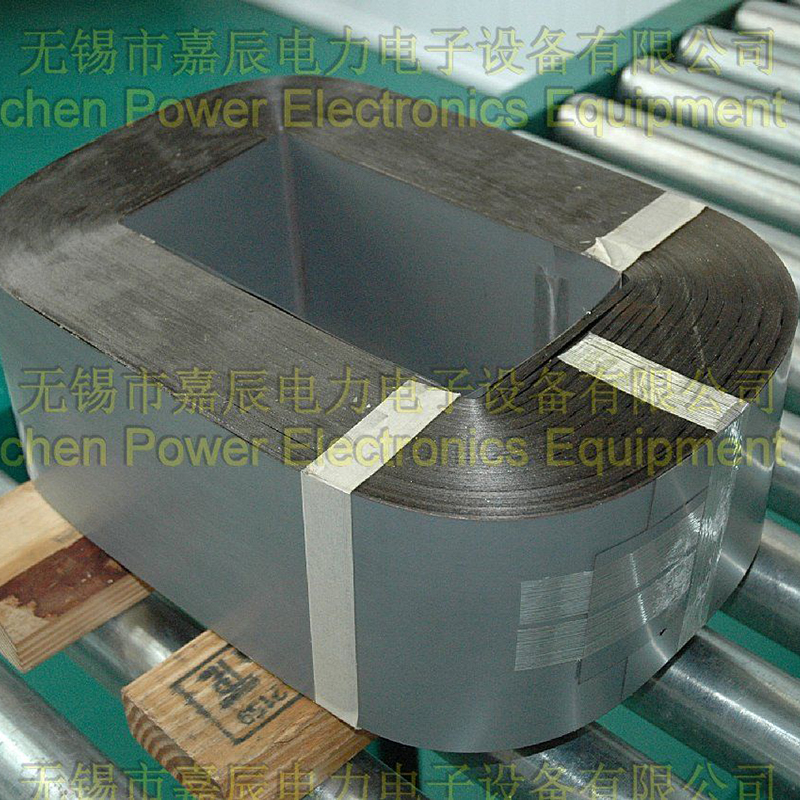

C type wound cores:

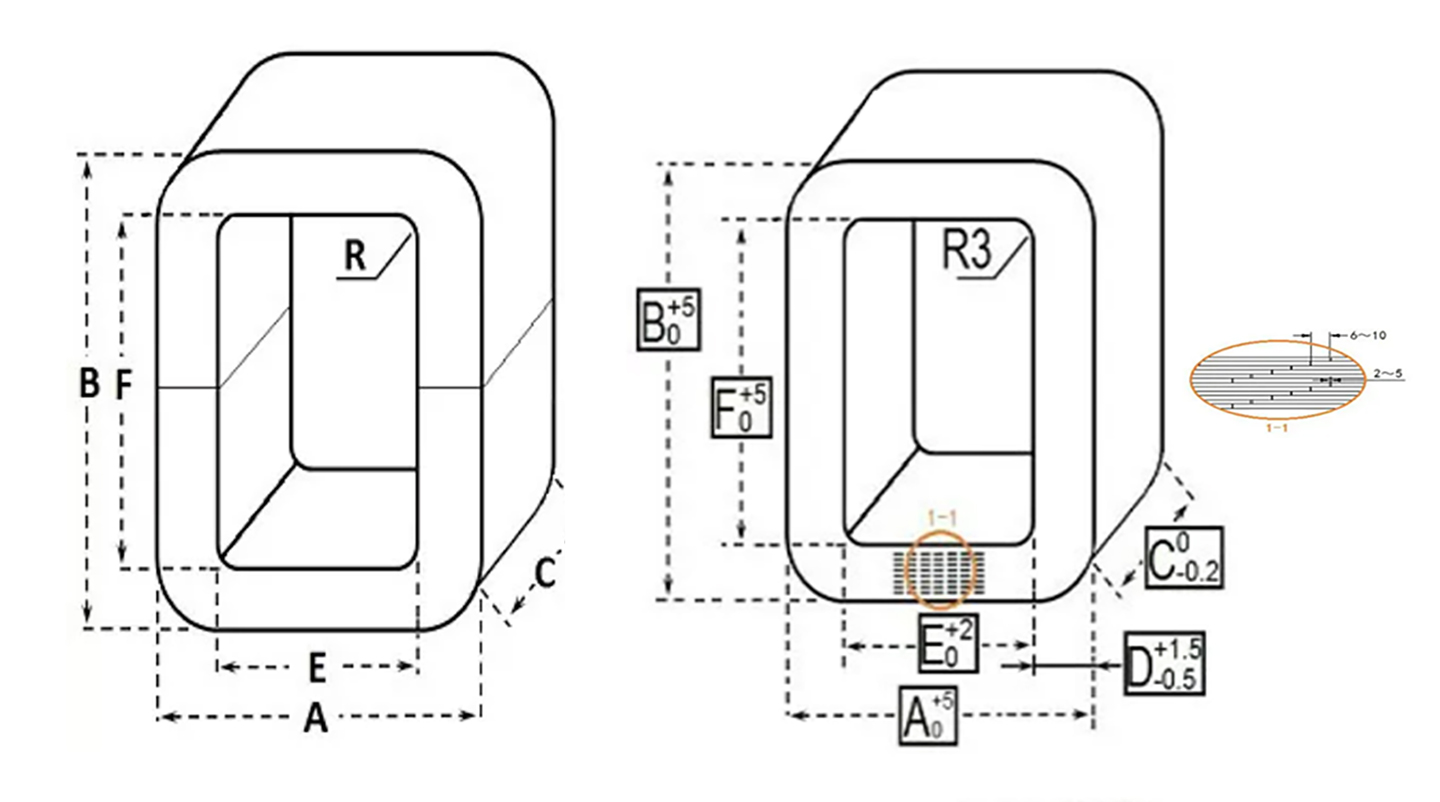

The right graphic for your reference.

Our actual manufacturing scope as below:

Min.E size: 6mm

Min.F size: 6mm

All the dimensions should be finally meet our customers drawing requirements(Customized)

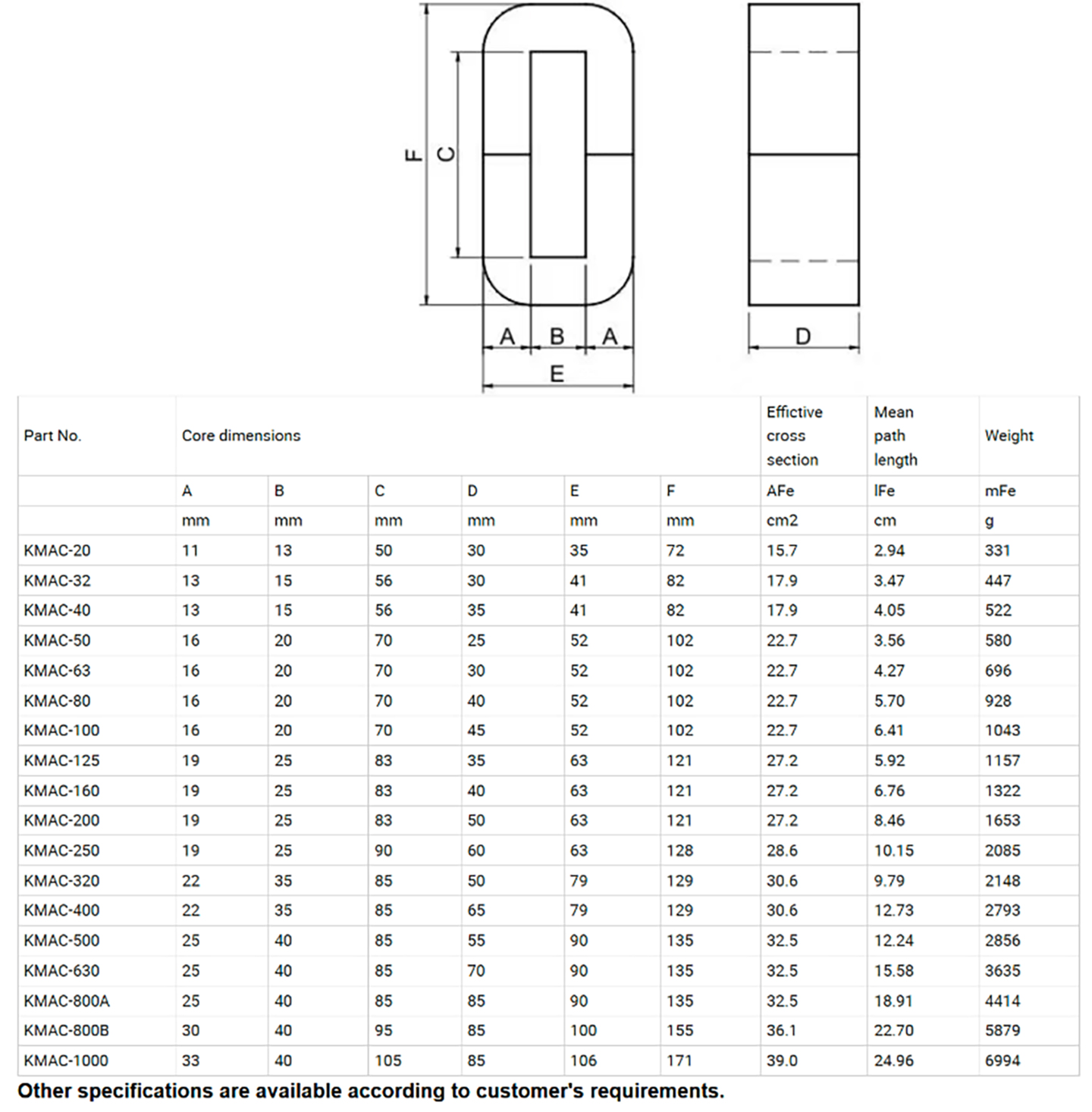

Standard core dimensions of amorphous C cores

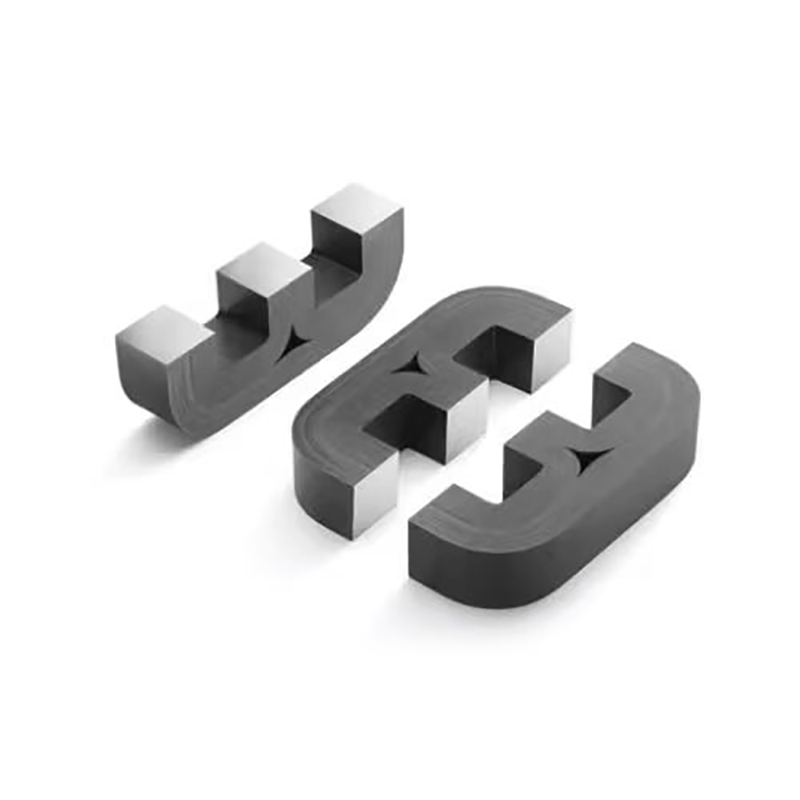

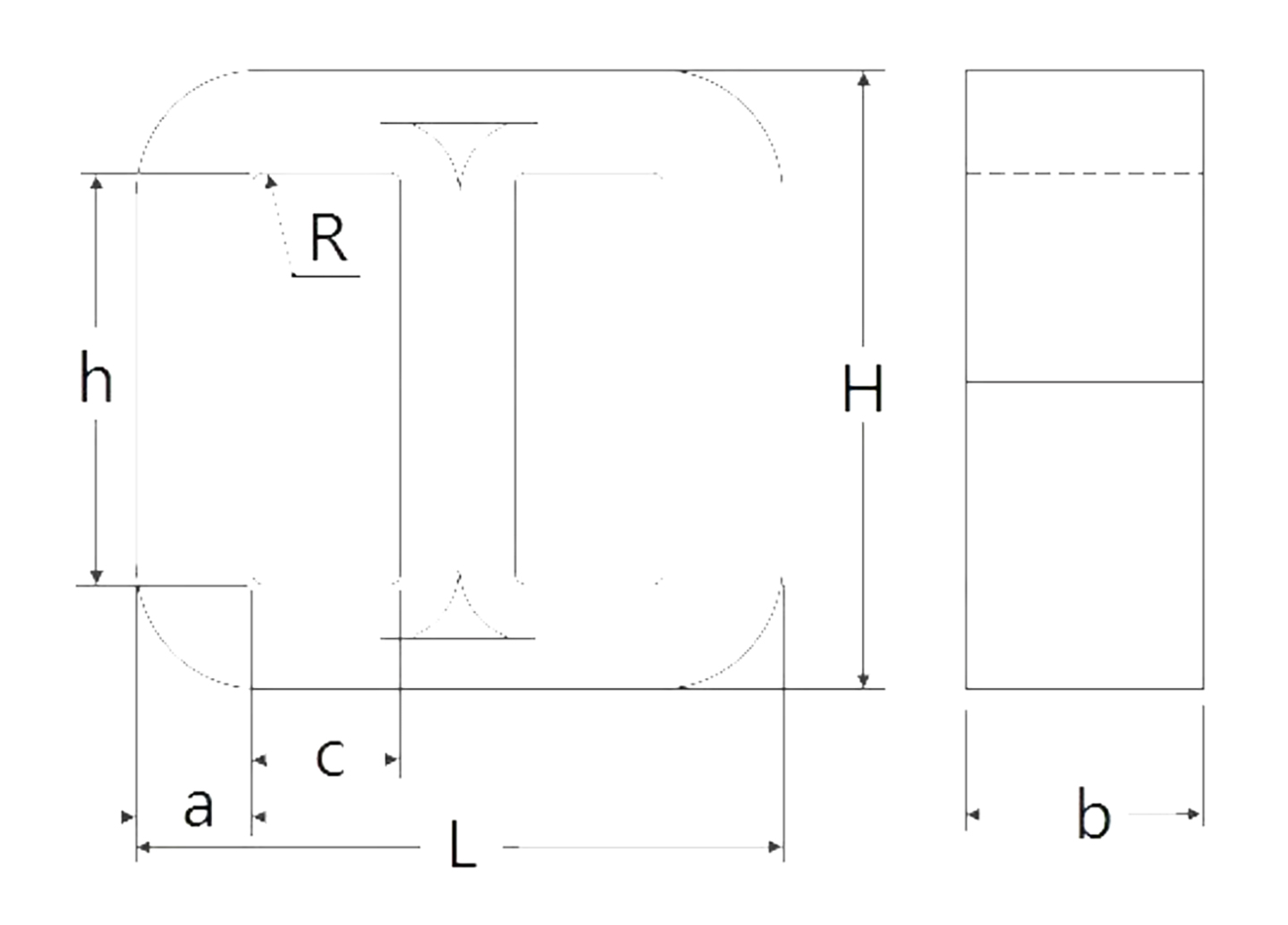

E type coresThe right graphic for your reference

Our actual manufacturing scope as below:

Min.c size:6mm

Min. h size:6mm

All the dimensions should be finally meet our customers drawing requirements(Customized).
