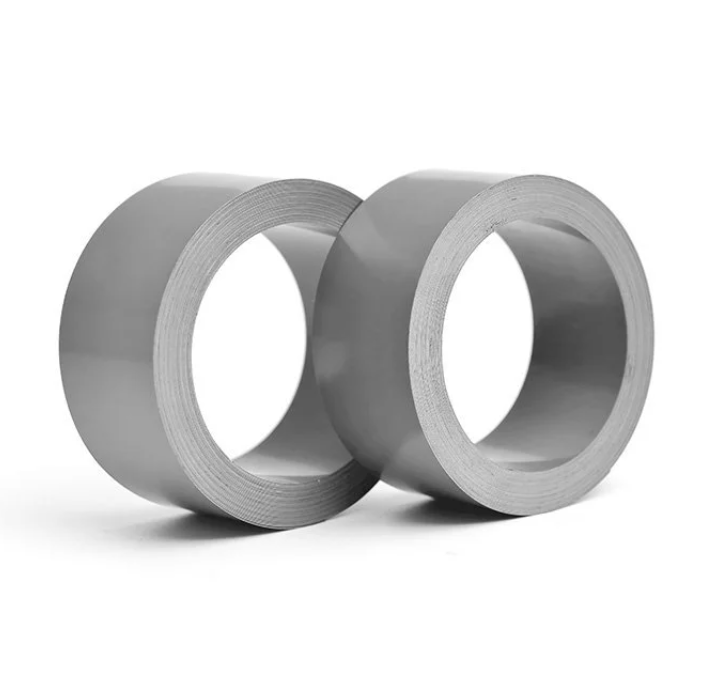

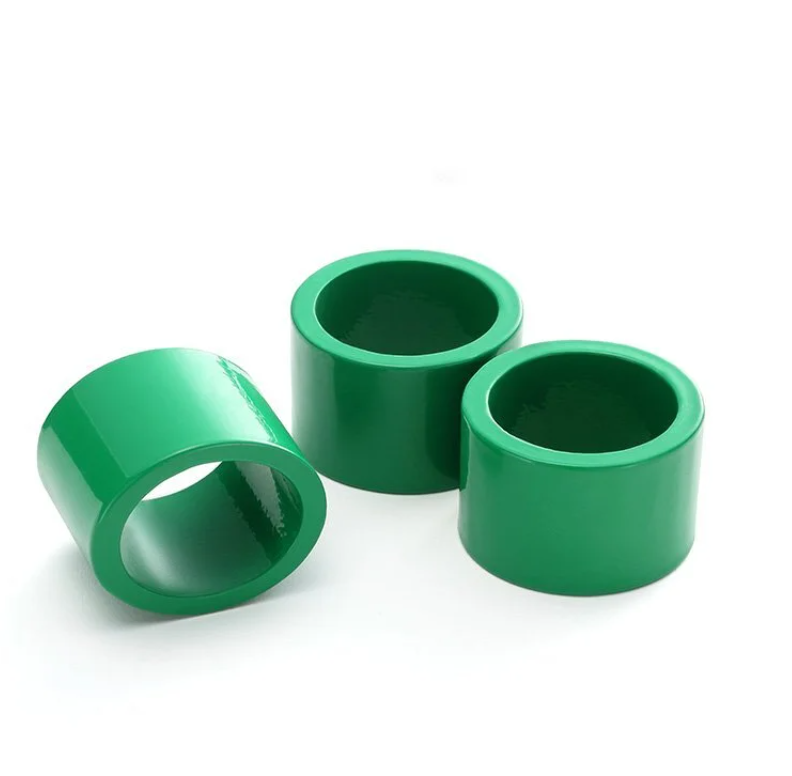

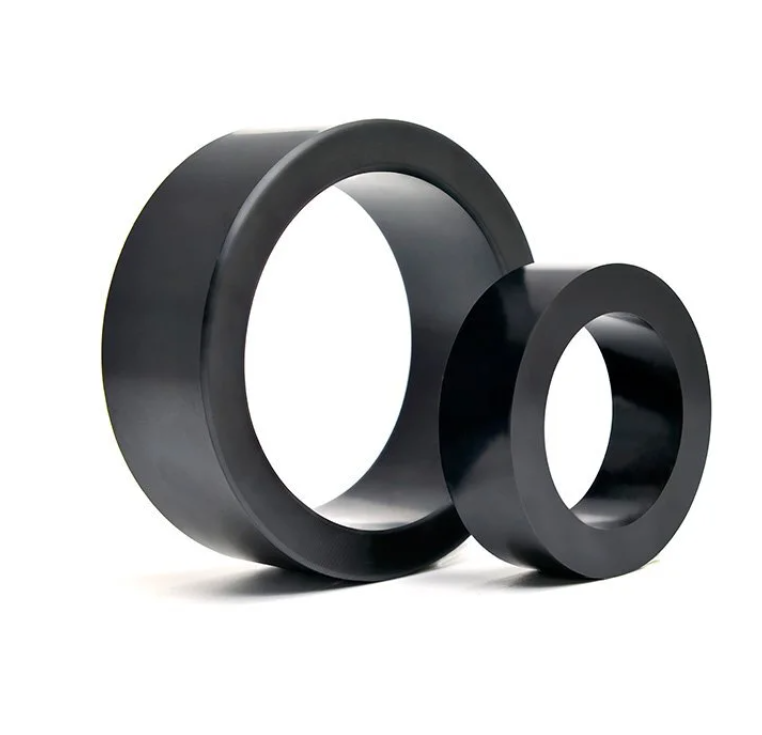

Toroidal cores:
Widely used in potential transformers, current transformers, voltage transformers, and various audio equi pments; Due to its particular structure, it has better performance than EI cores;

  • toroidal core

  • jiachen

Availability:
Quantity:
Inquire Add to Basket

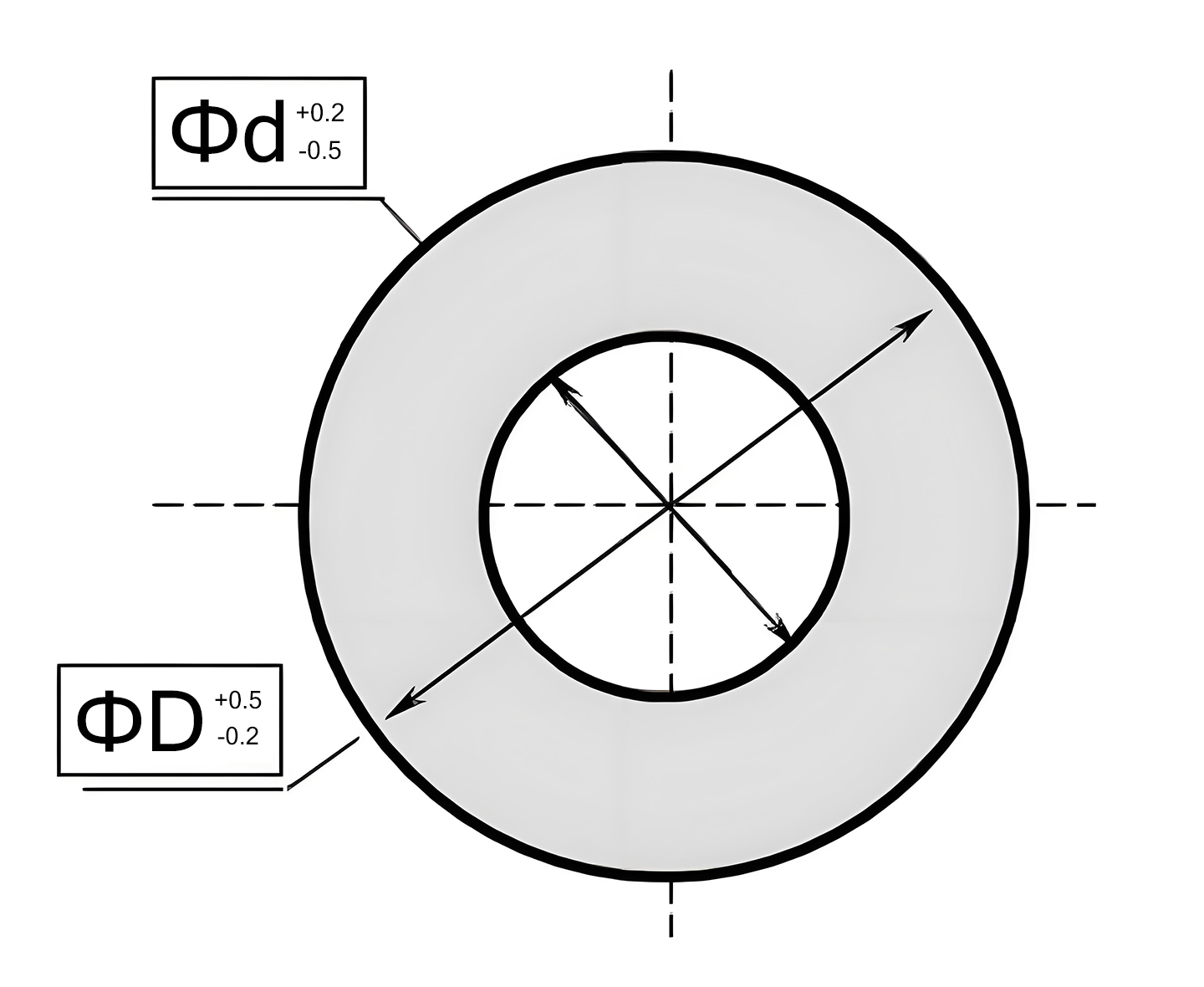

The graphic on right for your reference.

Our actual manufacturing scope as below:

ID (Inner diameter) 5mm - 1200mm

OD(out diameter) 6mm - 1800mm

We could also customize cores including the air gap according to customers requirements.
