Views: 0 Author: Site Editor Publish Time: 2025-10-28 Origin: Site
Transformer cores are crucial components in electrical systems, guiding magnetic flux for efficient voltage transformation. Two key types, wound core and toroidal core transformers, serve distinct purposes depending on the application. In this article, we will explore their structures, applications in power transformers and meters, and help you choose the right core for your needs.

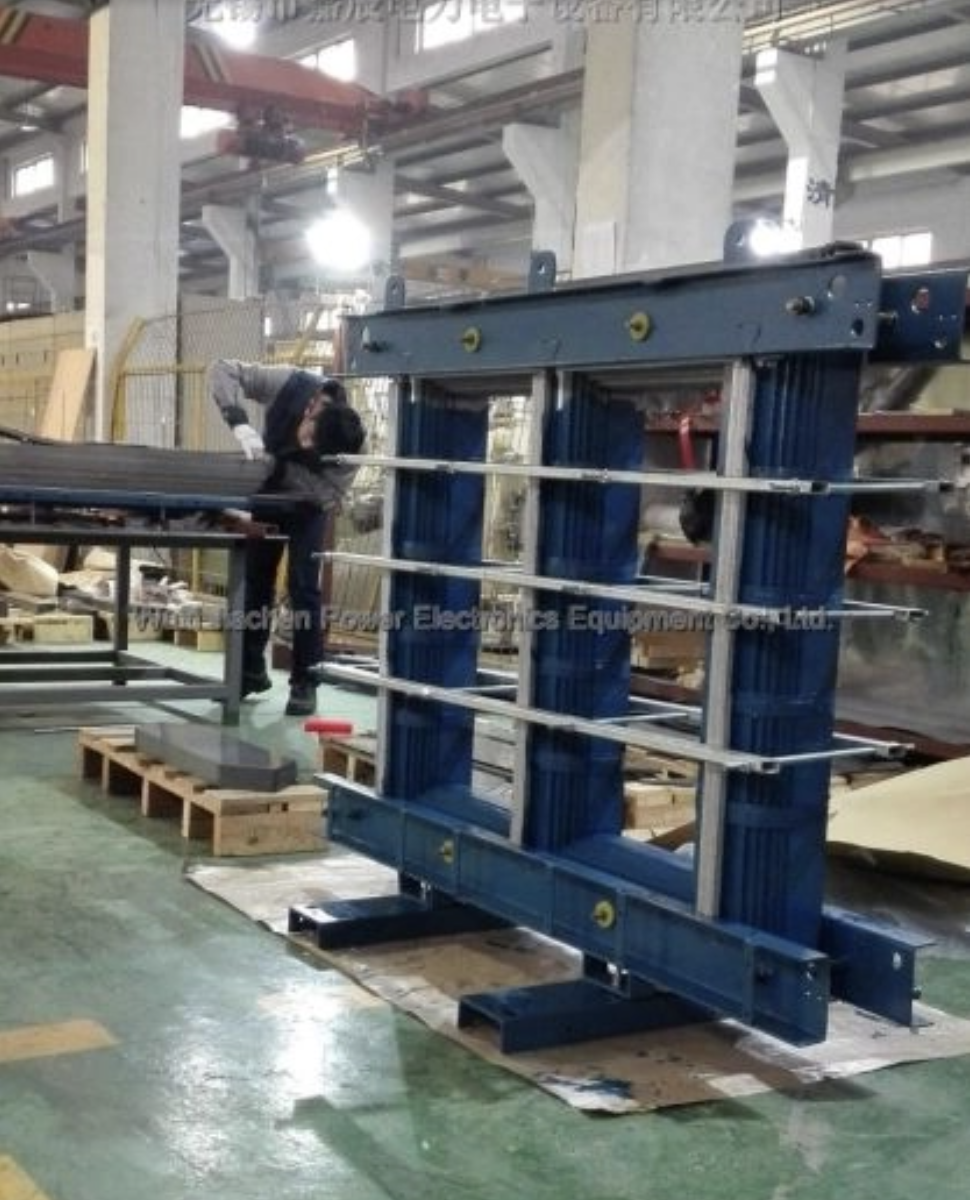

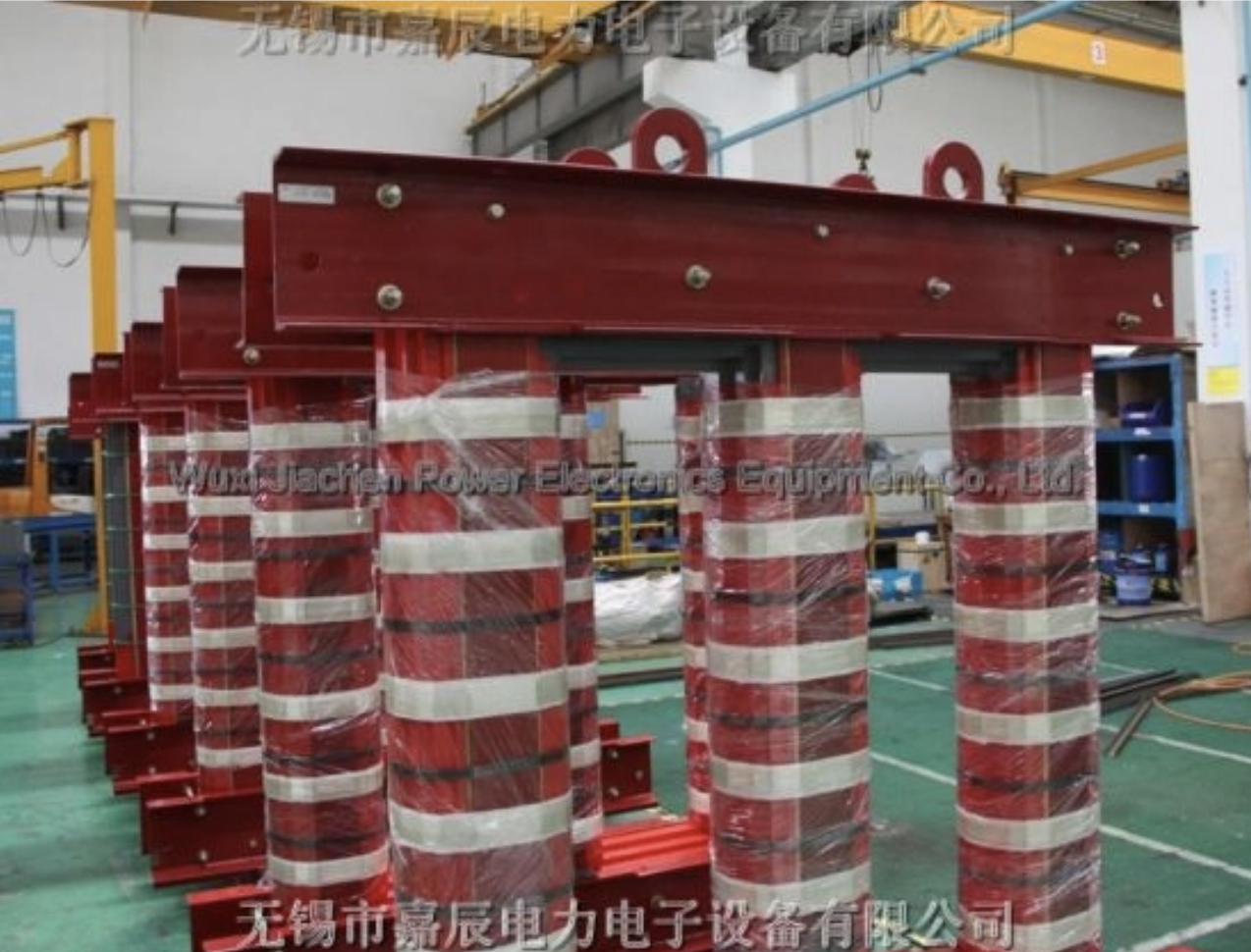

A transformer core is a magnetic structure around which coils of wire are wound. When alternating current flows through the primary winding, it generates a magnetic field that passes through the core, inducing a voltage in the secondary winding. The core’s main role is to provide a low-reluctance path for magnetic flux, maximizing energy transfer and minimizing losses.
High-quality cores reduce hysteresis and eddy current losses, ensuring energy efficiency. Laminated steel sheets or high-permeability alloys, commonly used in wound and toroidal cores, help achieve these goals. Proper core selection also enhances electromagnetic compatibility (EMC), reducing interference with nearby electronics. In sensitive measurement applications, core choice directly impacts the accuracy and reliability of current and voltage readings.
The magnetic flux generated in the primary winding flows through the core to the secondary winding. Any gaps, misalignments, or low-quality materials can cause flux leakage, which reduces efficiency and accuracy. Wound cores with laminated steel and tightly layered windings provide stable and uniform flux paths, making them ideal for high-voltage and industrial metering applications. Toroidal cores, with their continuous ring design, minimize stray flux and acoustic noise, suitable for compact and noise-sensitive devices.
Transformer cores are designed for specific applications, balancing efficiency, accuracy, and space requirements.
Core Type | Structure & Features | Applications | Advantages | Limitations |
Wound Core | Laminated steel sheets tightly wound around a cylinder or rectangle | High-voltage distribution, industrial meters | High precision, robust insulation | Large, heavier, complex manufacturing |
Toroidal Core | Continuous doughnut-shaped core with evenly wound wire | Audio, medical devices, residential meters | Compact, low EMI, high efficiency | Higher inrush current, higher cost |
Bar-Type | Solid bar with conductor passing through | High-current industrial applications | High current handling, simple design | Large footprint, less precise |
Split-Core | Can clamp around existing conductors | Retrofit, maintenance | Easy installation, no disconnection | Limited precision, not for high-voltage |
Summation Core | Combines currents from multiple circuits | Complex monitoring systems | Aggregates multiple signals efficiently | Niche applications |
Wound cores excel in industrial metering and protective relays requiring precise flux control. Toroidal cores are ideal for compact, noise-sensitive applications. Bar-type cores handle high currents in industrial settings. Split cores are convenient for retrofits and maintenance without disconnecting circuits. Summation cores are specialized for combining multiple inputs in complex monitoring systems. Core selection depends on current rating, environment, installation space, and required accuracy.
Transformer cores are more than just magnetic components—they directly influence efficiency, operational stability, electromagnetic compatibility, and measurement accuracy in electrical systems. Selecting the right core material and design ensures that transformers perform reliably, safely, and efficiently across diverse applications.
Transformer cores are crucial in determining overall transformer efficiency. Energy losses in transformers primarily come from two sources: eddy currents and hysteresis losses. Laminated wound cores reduce eddy currents by breaking the core into thin insulated layers, preventing circulating currents that generate heat and waste energy. Toroidal cores, with their continuous closed-loop design, minimize magnetic flux leakage and reduce hysteresis loss, as the flux flows smoothly along the circular path with minimal interruptions.
High-quality cores made from low-loss silicon steel or amorphous alloys can improve transformer efficiency by 2–5%, which is particularly important in large-scale power distribution, industrial substations, and high-voltage applications. For example, in a 10 MVA industrial transformer, improving core efficiency by 3% can save hundreds of kilowatts of energy per year, directly reducing operational costs. Moreover, reduced core losses lower the internal temperature of the transformer, extending insulation life and enhancing long-term reliability.
Transformers inherently produce magnetic fields and vibrations, which can interfere with nearby electronic equipment if not properly managed. Toroidal cores, with their symmetrical, continuous magnetic path, generate minimal stray magnetic fields, significantly reducing electromagnetic interference (EMI). Additionally, their circular design distributes mechanical stresses evenly, reducing core vibration and acoustic hum. This makes toroidal transformers ideal for sensitive electronics, such as audio amplifiers, medical imaging devices, and precision laboratory instruments.
On the other hand, wound cores may produce more audible hum due to the rectangular or laminated E-I core design, but their robust construction allows them to operate reliably in industrial environments, such as high-voltage power distribution and protective relays, where EMI and noise are less critical. In such settings, insulation integrity, thermal performance, and voltage regulation take priority over acoustic performance.
In metering and protective systems, transformer cores have a direct effect on the accuracy of voltage and current measurements. Wound cores offer controlled magnetic flux paths due to their layered windings and laminated core structure. This controlled flux minimizes errors in high-current and high-voltage applications, making them essential for utility-grade energy meters, industrial monitoring systems, and protective relays. Accurate flux control ensures reliable billing, precise load measurement, and correct operation of protective devices.
Toroidal cores, while slightly less precise than wound cores in extreme industrial conditions, provide sufficient accuracy for residential and commercial metering. Their compact size and low EMI make them ideal for smart meters, home energy monitoring, and compact control panels, where space is limited and installation simplicity is important. The closed-loop design of toroidal cores ensures consistent flux distribution, reducing leakage that could otherwise introduce measurement errors.
Wound-core transformers feature cores formed by winding long ribbons of magnetic steel into a heavy-walled cylinder or rectangular frame. Primary and secondary windings are layered concentrically, separated by insulating materials. This design supports high-voltage insulation, precise turns ratio, and reduces leakage flux. Laminated cores minimize eddy current and hysteresis losses, enhancing efficiency.
Wound core transformers are widely used in utility substations, industrial metering, protective relays, and high-voltage power systems. Their robust design allows handling of large currents and voltages while maintaining accuracy.
Feature | Wound Core Transformers |
Precision | High, suitable for protective relays and industrial meters |
Construction | Robust, layered windings |
Installation | Bulkier and heavier, requires more space |
Maintenance | Complex due to layered insulation |
Cost | Higher due to materials and labor |
Toroidal cores use a continuous ring of high-permeability magnetic material. Windings are evenly distributed around the ring, producing a smooth, low-loss magnetic path. This compact design reduces stray flux and acoustic noise. Materials like silicon steel or permalloy enhance flux flow and energy efficiency.
Toroidal cores are highly efficient (90–95%), generate less heat, and provide low EMI. The compact shape allows easier installation in tight spaces, and uniform winding reduces mechanical stress and vibration, increasing longevity.
They are used in audio amplifiers, home theater systems, medical devices, computer power supplies, lighting controls, and residential energy meters. Limitations include higher inrush current at startup and higher manufacturing costs due to precision winding requirements.
Wound cores provide precise voltage and current transformation, especially in high-voltage or high-accuracy applications, but may have slightly higher leakage flux. Toroidal cores feature minimal leakage flux, high efficiency, and low EMI but require careful handling of inrush current.
Wound cores are larger and heavier, requiring multiple mounting points and careful handling during maintenance. Toroidal cores are compact and lightweight, installable with a single central bolt, and have lower maintenance due to uniform winding.
Wound cores involve higher material and labor costs due to their layered construction. Toroidal cores are more expensive per unit, but their smaller size and high efficiency may lower long-term operational costs.
Wound cores are used in high-voltage power distribution, substations, and industrial plants, providing durability and accurate voltage transformation. Toroidal cores are ideal for compact power supplies, residential systems, and noise-sensitive electronics.
Toroidal cores achieve 90–95% efficiency, reducing heat and energy loss. Wound cores, though slightly less efficient, provide stable power delivery under heavy loads, ensuring consistent voltage regulation for industrial processes.
Utility Substations: Step-down voltage using wound cores for accurate power delivery.
Medical Equipment: Toroidal cores minimize EMI for precise diagnostic readings.
Audio Amplifiers: Toroidal cores reduce hum for clean audio output.
Industrial Metering: Wound cores ensure precise current measurement in protective relays and billing meters.
Current transformers (CTs) convert high currents into manageable levels for meters. Wound core CTs provide high precision and stable performance for industrial or high-voltage meters. Toroidal CTs, with compact ring-shaped cores, are easy to install in residential or commercial settings.
Wound cores minimize flux leakage and maintain accuracy for utility-grade meters. Toroidal cores provide sufficient precision for space-constrained installations, ensuring reliable measurements with low EMI.
Utility Billing Meters: Wound core CTs for precise billing.
Smart Meters: Toroidal CTs for compact, retrofit installations.
Industrial Monitoring: Wound core CTs handle higher currents.
Residential Monitoring: Toroidal CTs provide quiet, compact solutions.
Wound core transformers offer precision and durability in high-voltage applications, while toroidal cores excel in compact, noise-sensitive environments. Choosing the right core depends on accuracy needs and space constraints. Future trends may focus on enhancing efficiency and reducing interference. Wuxi Jiachen Power Electronics Equipment Co., Ltd. provides innovative transformer solutions, ensuring superior performance and reliability in diverse electrical systems.
A: A transformer core is a magnetic structure that guides magnetic flux in transformers, enhancing voltage transformation efficiency.
A: A wound core transformer uses laminated steel sheets with primary and secondary windings, offering precise control and high voltage insulation.
A: Choose a toroidal core transformer for its compact size, low electromagnetic interference, and quiet operation, ideal for noise-sensitive environments.
A: Wound cores provide high accuracy and stable performance in industrial and high-voltage metering applications.
A: Toroidal core transformers offer high efficiency (90-95%) by minimizing core losses and heat generation.
