In the realm of electrical power systems, transformer cores play a pivotal role in determining the efficiency and functionality of transformers, reactors, and various other electromagnetic devices. The two primary types of cores used in these applications are stacked cores and wound cores. Both serve as the central magnetic component of transformers, but they have distinct construction processes, material handling, and performance characteristics. This article will dive into the differences between stacked cores and wound cores, with a specific focus on wound core technology.
Wound cores have gained prominence due to their superior energy efficiency and performance. However, understanding when and why to use a wound core over a stacked core requires a deeper dive into their respective characteristics, manufacturing processes, and applications.
A stacked core is a type of transformer core made from layers of thin, magnetic material sheets that are stacked together. These sheets are typically made from high-grade electrical steel, which is specifically designed to conduct magnetic flux efficiently.
The manufacturing process of stacked cores involves several steps:
Material Selection: Electrical steel is selected for its high magnetic permeability, which ensures that the core will conduct magnetic flux with minimal energy loss.
Cutting Sheets: The steel sheets are cut into specific sizes based on the required core design. These sheets are typically thin, measuring between 0.2 mm to 0.35 mm in thickness.
Stacking: The cut sheets are stacked one on top of the other, aligned in a way that minimizes the gaps between them. This stacked arrangement helps in enhancing the magnetic flux density within the core.
Insulation: Each sheet in the stack is coated with an insulating layer to prevent eddy currents, which could lead to energy losses and heating within the core.
Final Assembly: The stack is then placed into a housing or frame to maintain its shape and to facilitate ease of installation into transformers or reactors.
Stacked cores offer several benefits, including:
Cost-Effectiveness: The manufacturing process for stacked cores is relatively simple and inexpensive compared to wound cores, making them a more affordable choice for lower-performance applications.
Ease of Production: Stacked cores are easier to produce at scale due to their simpler construction process. This makes them ideal for applications where mass production and cost minimization are priorities.
Flexibility in Design: The use of individual sheets allows for flexibility in the core design, making stacked cores adaptable to various transformer sizes and configurations.
Despite their cost advantages, stacked cores come with limitations:
Lower Energy Efficiency: The stacking of thin sheets can lead to increased core losses due to eddy currents and hysteresis. These losses can significantly reduce the overall efficiency of the transformer or reactor.
Magnetic Flux Leakage: The gaps between stacked sheets can lead to leakage of magnetic flux, which reduces the effectiveness of the core in transferring energy.
Bulkier Design: Stacked cores are often bulkier and heavier, which can be a disadvantage in applications where compactness and lightweight design are important.

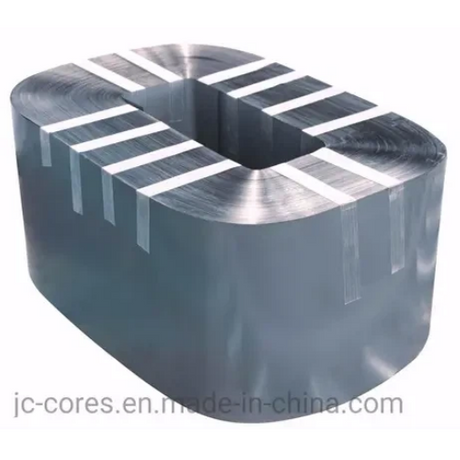

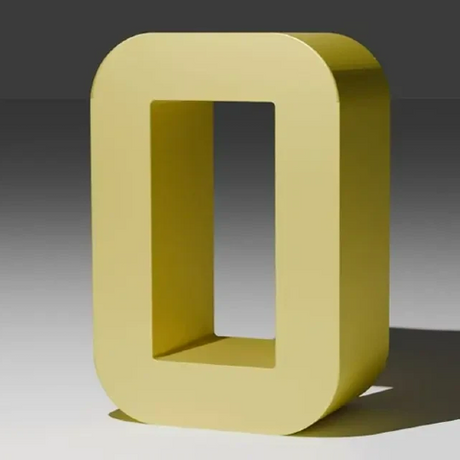

A wound core, on the other hand, is constructed by winding a magnetic material, such as electrical steel, into a cylindrical or toroidal shape. This type of core has become increasingly popular in high-efficiency transformers due to its superior magnetic properties and energy performance.
The manufacturing process for wound cores is more complex and involves the following steps:
Material Selection: Similar to stacked cores, wound cores use high-grade electrical steel, but the material must be wound into precise coils to ensure proper magnetic flux conduction.
Winding Process: The steel strips are wound tightly into a cylindrical or toroidal shape. The winding process is carried out carefully to ensure uniform tension and alignment, which are crucial for the core’s performance.
Annealing: The wound core undergoes an annealing process, which involves heating the core to a high temperature and allowing it to cool slowly. This process removes internal stresses and improves the magnetic properties of the core.
Insulation: The winding is coated with a thin insulating layer to prevent short circuits and energy losses due to eddy currents.
Final Assembly: Once wound and annealed, the core is placed into a suitable housing. The final assembly ensures that the core holds its shape and can be easily integrated into a transformer or reactor.
Wound cores offer several advantages over stacked cores:
Higher Efficiency: The wound construction allows for more efficient magnetic flux linkage and reduces core losses. This makes wound cores ideal for high-performance applications where energy efficiency is crucial.
Lower Energy Losses: The continuous structure of wound cores results in less magnetic flux leakage compared to stacked cores, leading to reduced energy losses.
Compact Design: Wound cores can be made more compact and lightweight compared to stacked cores, making them suitable for applications where space and weight are concerns.
Uniform Magnetic Flux: The winding process ensures that the magnetic flux is distributed more uniformly across the core, enhancing its performance and efficiency.
While wound cores are highly efficient, they come with a few challenges:
Complex Manufacturing Process: The winding process is more complex and requires higher precision, which makes wound cores more expensive to produce.
Higher Cost: Due to the intricate manufacturing process and material costs, wound cores tend to be more expensive than stacked cores.
Limited Flexibility: The rigid shape of the wound core makes it less flexible in terms of design and customization, compared to the more adaptable stacked core.
Understanding the fundamental differences between stacked cores and wound cores is essential for selecting the right type of core for a specific application.
Feature | Stacked Core | Wound Core |
Manufacturing Process | Stacked sheets of magnetic material | Wound coil of magnetic material |
Magnetic Flux Distribution | Less uniform, with potential for flux leakage | More uniform, better magnetic flux transfer |
Energy Efficiency | Higher energy loss due to eddy currents | Lower energy loss, higher efficiency |
Cost | More affordable and cost-effective | Higher cost due to complexity |
Design Flexibility | More flexible in design and customization | Less flexible, typically rigid design |
Size & Weight | Bulkier and heavier | More compact and lightweight |
Application | Ideal for low-cost, low-performance applications | Best for high-performance, high-efficiency systems |
The decision to use a stacked core or a wound core depends on the specific requirements of the application, such as cost, efficiency, and performance.
Cost-Sensitive Applications: Stacked cores are often used in applications where the primary goal is to minimize cost rather than maximize performance. Examples include:
Small transformers
Low-power transformers
General-purpose electrical devices
Low-Efficiency Applications: If the transformer or reactor does not require high energy efficiency, a stacked core might be a sufficient and cost-effective option.
High-Performance Transformers: Wound cores are ideal for applications that require high efficiency and low energy loss, such as:
Power transformers
High-efficiency reactors
High-performance electrical systems
Compact Designs: For applications where space and weight are limited, wound cores offer a more compact and lightweight solution without sacrificing performance.
In conclusion, both stacked cores and wound cores offer distinct advantages depending on the specific needs of an application. Stacked cores are a cost-effective choice for low-power, non-critical applications, providing an affordable solution where performance is not the top priority. On the other hand, wound cores excel in high-performance settings, offering superior energy efficiency, compact design, and reduced energy losses, making them the ideal choice for transformers and reactors requiring high efficiency.
When selecting between the two, it is essential to evaluate factors such as energy efficiency, cost constraints, size limitations, and overall performance requirements. For applications where energy savings and performance are critical, wound cores are the preferred option. However, for budget-conscious projects or less demanding applications, stacked cores remain a practical solution.
At Wuxi Jiachen Power Electronics Equipment Co., Ltd., we offer both stacked and wound core solutions tailored to meet diverse industry needs. Whether you're looking for cost-effective options or high-efficiency cores, our team is ready to help you find the best solution for your project. Feel free to reach out to us for more information or to discuss your requirements.
Q1: What are the main advantages of a wound core over a stacked core?
A wound core offers better energy efficiency, lower core losses, and more uniform magnetic flux distribution, making it ideal for high-performance transformers and reactors.
Q2: Are wound cores more expensive than stacked cores?
Yes, wound cores typically involve a more complex manufacturing process, making them more expensive than stacked cores. However, the long-term energy savings and performance benefits often justify the higher cost.
Q3: Can stacked cores be used in high-power transformers?
While stacked cores are commonly used in smaller, cost-sensitive transformers, they are not ideal for high-power transformers where energy efficiency and performance are critical. Wound cores are typically preferred for these applications.
Q4: How does the construction process of a wound core differ from a stacked core?
A stacked core is made by stacking thin sheets of material, while a wound core is made by winding the material into a coil shape. The wound core provides more uniform magnetic properties and improved performance.
Q5: What is the typical application of wound cores in the industry?
Wound cores are commonly used in high-efficiency transformers, reactors, and high-performance power systems where energy conservation and compact design are prioritized.
