Wound cores play a vital role in the efficiency and performance of various electrical equipment, including transformers, reactors, and inductors. These components are critical in power distribution, electrical transmission, and signal processing, where magnetic properties need to be tightly controlled. Ensuring the wound core is fixed correctly is crucial to prevent performance issues, enhance efficiency, and prolong the lifespan of the equipment.
In this guide, we’ll explore the structure and functionality of wound cores, common issues that necessitate repairs, the step-by-step process for fixing them, and troubleshooting tips to ensure optimal performance.

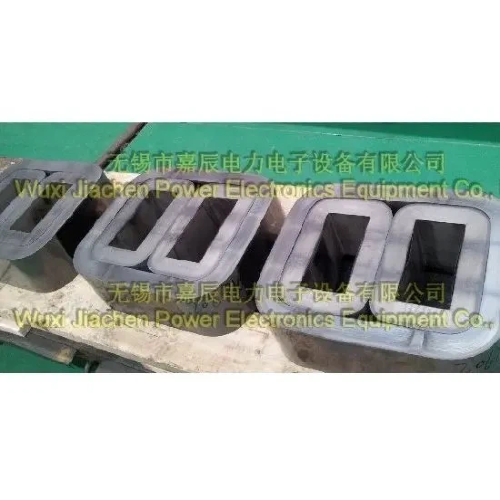

A wound core refers to a magnetic core made by winding a conductive material (typically electrical steel) into a cylindrical or rectangular shape, which then forms the basis for components like transformers and inductors. The core serves as a conduit for magnetic fields, and its design is critical in determining the efficiency and operational stability of the device it’s used in.
Wound cores can be categorized into several types based on their application and design. These include:
Transformer Wound Core: Used in power transformers, they handle high voltage and large currents, ensuring efficient energy transfer while minimizing energy losses.
Audio Transformer Wound Core: These cores are designed to handle lower currents but require high precision in the magnetic field to ensure quality sound transmission.
Reactors and Inductors: Wound cores in reactors and inductors focus on controlling the flow of current in circuits, often in power regulation systems.
Each of these core types serves distinct purposes but relies on similar construction techniques and magnetic principles.
Like any complex mechanical and electrical component, wound cores can face a variety of issues that compromise their function. Understanding these problems is the first step toward successful repair.
Mechanical deformation is one of the most common issues in wound cores. Over time, the core can become misaligned due to physical stress, improper handling, or faulty installation. This misalignment leads to inefficiencies in the magnetic field and reduces the overall performance of the transformer or reactor. Symptoms of mechanical deformation include abnormal noise and heating.
The primary function of a wound core is to channel magnetic flux. If the core is not properly fixed, the magnetic properties can deteriorate. Factors such as insulation failure, improper winding, or physical damage to the core can lead to increased losses in magnetic flux. This inefficiency can result in a significant decrease in the performance of electrical equipment, reducing its lifespan and increasing operational costs.
Another major issue is the core’s inability to handle electrical surges and overheating, particularly in high-load applications. Excessive heat can damage the insulation and lead to further degradation of the core’s magnetic properties. In some cases, the heat may cause the core to expand, which can disrupt its tight fit and lead to further malfunctions.
Fixing a wound core requires a systematic approach, as improper repairs can cause additional damage. Below is a detailed, step-by-step process that ensures the core is restored to its optimal working condition.
The first step in fixing any wound core is to conduct a thorough inspection. This helps identify the exact issue, whether it’s mechanical damage, loss of magnetic efficiency, or overheating.
Visual Inspection: Look for signs of wear, overheating, or any obvious mechanical deformation such as dents or cracks in the core.
Magnetic Testing: Use tools like a Gauss meter or magnetic flux tester to check the magnetic field strength. A loss of field strength typically signals internal damage or misalignment.
Thermal Imaging: Thermal cameras can help detect hot spots in the core, which indicate overheating or electrical surges.
Tool | Purpose |
Gauss Meter | Measures magnetic field strength. |
Thermal Camera | Detects heat anomalies. |
Visual Inspection Tools | Magnifying glass, flashlight, and inspection gloves. |
Once the problem is identified, it’s time to disassemble the core carefully. This step must be done with precision to avoid causing any additional damage.
Cut Power to the Equipment: Ensure that all power sources are disconnected to avoid electrical shocks or further damage.
Remove the Wound Core: Depending on the size and type of core, you may need a lifting tool to remove it from the housing.
Remove Insulation: Carefully remove any insulation around the core to avoid damaging the delicate magnetic steel.
If the core is physically damaged or its magnetic efficiency has diminished, it may need to be rewound. This involves replacing the winding wire or correcting the winding alignment.
Prepare the New Winding Wire: Use high-quality wire with proper insulation to ensure long-lasting repairs.
Rewind the Core: Using a winding machine, carefully wind the wire onto the core, ensuring each layer is tightly wound and evenly spaced.
Check Alignment: Throughout the winding process, regularly check the alignment to prevent miswinding, which can lead to inefficiency and additional repairs later.
After rewinding, the core must be reassembled. During this process, it’s crucial to check for any misalignment or structural weaknesses.
Reassemble the Core: Place the core back into its housing, ensuring it fits snugly and securely.
Reinforce with Insulation: If necessary, apply fresh insulation around the core to protect it from electrical surges or external damage.
Fix in Place: Ensure that all components are tightly fixed and that there is no chance for movement once the core is in operation.
Once the core is reassembled, conduct several tests to ensure its proper functioning.
Magnetic Field Test: Use a Gauss meter or similar device to ensure the magnetic field is uniform and strong.
Overload Test: Test the core under load conditions to verify it can handle the expected current without overheating.
Visual and Acoustic Inspection: Listen for unusual noises and visually check for any signs of abnormal wear or heating.
Fixing a wound core requires specialized tools and materials. Below is a list of the essentials:
Tool/Material | Purpose |
Winding Machine | Used for rewinding the core with precision. |
Insulation Tape | Used to insulate the winding and prevent electrical leakage. |
Gauss Meter | Measures magnetic field strength. |
Thermal Camera | Identifies hot spots and areas of heat concentration. |
Precision Measuring Tools | Ensures accurate measurements for winding alignment. |
Protective Gloves | For safety during handling of the core. |
Even after following the proper steps, there can still be lingering issues. Here are some troubleshooting tips for fixing wound cores.
If the core is still experiencing inefficiencies after rewinding, misalignment might be the issue. Always ensure the winding is tight, evenly spaced, and properly aligned.
If there is a significant loss in magnetic efficiency after reassembly, it could be due to poor insulation around the core. Replace any worn-out insulation, and double-check the insulation quality before reassembling.
If overheating persists even after repairs, ensure that the core isn’t overloaded or that the cooling systems (if any) aren’t malfunctioning. Check for proper airflow and ensure the core is not exposed to excessive external heat.
Fixing a wound core is a meticulous process that demands precision and attention to detail. From thoroughly inspecting the core to identify potential issues, to carefully rewinding and reassembling it, every step plays a vital role in restoring the core’s optimal performance. Regular maintenance and inspections are essential to prevent common issues, ensuring that the core continues to operate efficiently and extends the lifespan of the equipment it supports.
At Wuxi Jiachen Power Electronics Equipment, we understand the importance of quality and reliability in every wound core we produce. Our team of experts is dedicated to providing top-tier solutions, whether you need assistance with repairs or are looking to invest in new components. We are committed to ensuring your equipment functions at its best, helping you avoid costly downtime and optimize operational performance. If you're seeking professional support or high-quality wound cores, don't hesitate to contact us. We're here to help you keep your equipment running smoothly for years to come.
Signs that a wound core needs fixing include overheating, unusual noise, and reduced performance. Testing for magnetic field strength or visual signs of mechanical damage can help identify issues early.
In many cases, a damaged wound core can be repaired through rewinding, re-insulation, or realignment. However, severe damage may require replacement.
Wound cores should be inspected regularly, especially in high-load applications, to prevent potential failures. A routine inspection every 6 months is recommended.
Essential tools include winding machines, insulation materials, precision measuring devices, thermal cameras, and safety gloves for handling the components.
