A transformer may look simple from outside. Yet its real work starts inside the core. A distribution transformer core guides magnetic energy, cuts waste, and helps voltage change safely. In this article, you will learn why the distribution transformer core matters, how it affects performance, and what buyers should check before ordering.
● A distribution transformer core gives magnetic flux a controlled path between the primary and secondary windings.
● Its main purpose is to support electromagnetic induction, so voltage can be transformed efficiently.
● A good core reduces no-load loss, heat, noise, and wasted energy during daily operation.
● Core material, lamination thickness, cutting quality, stacking accuracy, and insulation all affect performance.
● Wound cores often support smooth magnetic continuity and compact designs.
● Stacked cores offer flexible sizing and easier customization for different transformer drawings.
● The right core should match capacity, phase type, loss target, winding space, and installation needs.
The main purpose of a distribution transformer core is to create a strong magnetic path. This path lets energy move from one winding to another without direct electrical contact. It is the part that makes voltage transformation practical, stable, and efficient.
Without a proper core, much of the magnetic flux would spread into the surrounding air. The transformer would need more magnetizing current. It would waste more energy and produce more heat. For distribution transformers, this is a serious issue because they often stay energized all day.
Reluctance is magnetic resistance. Air has high reluctance. Electrical steel and other magnetic core materials have much lower reluctance. A distribution transformer core gives magnetic flux an easier path to follow.
This helps the transformer use less exciting current. It also keeps the magnetic field concentrated where it is needed. Better flux control usually means better efficiency and more predictable performance.
A distribution transformer does not transfer power through direct contact between windings. It works through electromagnetic induction. Alternating current in the primary winding creates changing magnetic flux. The core carries this flux to the secondary winding.
When the flux changes, it induces voltage in the secondary winding. This is how the transformer steps voltage down for local distribution. The core makes this process stronger and more controlled.
Every energized transformer has no-load loss. This loss happens even when the transformer carries little or no load. Since distribution transformers often run for long periods, small losses can become large operating costs over time.
A well-designed core reduces magnetic loss. It does this through proper material choice, accurate lamination work, tight assembly, and suitable insulation between layers. These details help the transformer consume less energy during normal service.
Magnetic flux should stay inside the core as much as possible. When too much flux leaks outside, the transformer becomes less efficient. Leakage flux may also increase stray losses and local heating.
The core shape, joint design, window size, and assembly quality all affect flux behavior. A stable magnetic path helps the transformer deliver voltage more reliably under changing load conditions.
Distribution transformers usually reduce higher distribution voltage to a usable local voltage. The core helps this process by supporting the magnetic field needed for voltage conversion.
A correct core design must match the transformer’s capacity, phase type, frequency, and winding layout. If the core is undersized or poorly matched, the transformer may show higher loss, louder operation, or poor thermal behavior.
Core loss becomes heat. If the core creates too much heat, it can add stress to oil, insulation, clamps, and nearby windings. Over time, this may reduce service life.
A reliable core helps control heat at its source. Lower core loss reduces thermal stress and supports stable operation. This matters in distribution networks where equipment often faces long duty cycles.
Transformer hum is closely tied to core behavior. Magnetic steel expands and contracts slightly during magnetization. If laminations are loose, uneven, or poorly clamped, vibration can become louder.
A core made with accurate cutting, tight stacking, proper winding, or well-controlled curing can reduce vibration. It cannot remove all sound, but it can help keep noise within a more acceptable range.
Core Purpose | What It Means in Practice | Why It Matters |
Magnetic flux path | Guides flux through the core | Improves induction |
Loss control | Reduces no-load loss | Lowers energy waste |
Heat control | Limits excess core heating | Protects service life |
Noise control | Reduces vibration risk | Improves operation |
Structural support | Fits windings and clamps | Helps assembly stability |
Note：When comparing cores, ask for loss and no-load current data, not only size and weight.
Core loss is one of the most important reasons to care about core quality. Even a small difference in no-load loss can matter because many distribution transformers stay connected to the grid continuously.
A transformer may have no connected load, but the core still magnetizes. This creates no-load loss. It is always present when the transformer is energized.
For utilities, factories, and equipment builders, this loss affects long-term operating cost. A low-loss core can improve total ownership value, especially in large-scale transformer projects.
Hysteresis loss happens when the core material is magnetized and demagnetized again and again. Better magnetic material can reduce this repeated energy loss.
This is why core material selection matters. Silicon steel, grain-oriented electrical steel, and amorphous materials may be selected based on the required efficiency level, cost target, and transformer design.
If the core were made from one solid metal block, circulating currents would form inside it. These are called eddy currents. They create heat and waste energy.
Thin insulated laminations help solve this problem. They break the current paths inside the metal. This lowers eddy current loss and helps the core run cooler.
A core is not only a magnetic component. It is also a mechanical structure. Its construction quality affects assembly fit, sound level, and resistance to operational stress.
Small air gaps can affect magnetic flux. Uneven joints can also increase local vibration. When laminations do not sit tightly, the core may buzz more during operation.
This is why precision matters. A transformer core should be built with stable geometry, clean edges, and controlled assembly pressure. These details help reduce sound and improve consistency.
The winding window, core leg size, and overall geometry must match the transformer drawing. If the dimensions are wrong, the windings may not fit correctly. Assembly may become harder or less stable.
Dimensional accuracy also helps the transformer keep its designed magnetic path. It reduces the chance of unwanted gaps, poor clamping, and uneven stress during production.
During a short-circuit event, transformer windings may face strong mechanical forces. A stable core structure helps maintain alignment and support the transformer assembly.
The core alone does not determine short-circuit strength. Yet its accuracy, clamping fit, and rigidity support the whole transformer structure. This is why core design and core manufacturing should not be separated.
The purpose of a distribution transformer core depends heavily on material quality. A good design can still fail if the material, lamination work, or insulation is poor.
Different transformer projects need different loss levels. Some focus on cost control. Others need higher efficiency, lower noise, or better thermal stability.
The material should match the transformer’s rated capacity, frequency, magnetic flux density, and efficiency target. Buyers should provide clear drawings and technical parameters before production. This helps the supplier choose suitable material and process routes.
Thin laminations usually help reduce eddy current loss. But thickness is only one factor. The insulation between laminations must also work well.
If interlayer insulation fails, small currents can pass between layers. This raises loss and heat. Final inspection should include insulation checks, surface checks, and performance verification where needed.
A clean lamination edge helps protect insulation and stacking quality. Burrs, rust, scratches, or contamination can create problems during assembly.
Poor cutting may lead to uneven stacking. It may also increase local stress or damage insulation. A well-controlled process helps the core perform closer to the design target.
Tip：Before approval, confirm lamination thickness, insulation condition, drawing tolerance, and final inspection methods.
A distribution transformer core can use different structures. Two common options are wound cores and stacked cores. Both can work well when designed and manufactured correctly. The right choice depends on transformer structure, performance goals, and production needs.
A wound core is made by winding magnetic strip material into a continuous form. This structure can create a smooth magnetic path. It often supports compact design and lower magnetic interruption.
For many distribution transformer designs, wound cores can help reduce loss and noise. Their performance depends on winding tension, annealing quality, curing, and final inspection.

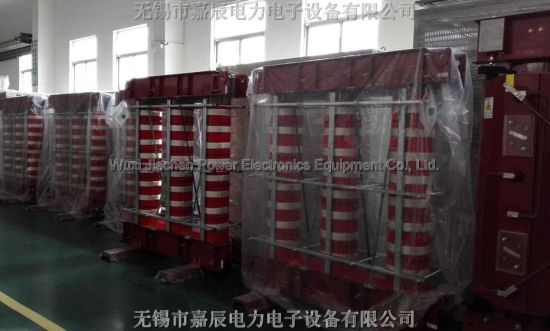

A stacked core is made from layers of magnetic laminations. These sheets are cut, stacked, and assembled into the required shape.
Stacked cores are useful when the transformer needs flexible dimensions or a custom geometry. They can match different drawings, window sizes, and capacity ranges. Proper step-lap or joint design can also improve flux distribution and reduce noise.
A wound core may be suitable when the design needs compact size, smooth magnetic performance, and strong efficiency control. It can be useful for distribution transformer projects where no-load loss and sound level are important.
However, wound core production requires careful process control. Strip flatness, winding tension, annealing curve, and curing quality all affect the final result.
A stacked core may be preferred when the transformer needs special dimensions or easier adjustment to customer drawings. It is also practical for many dry-type, oil-immersed, and customized transformer structures.
The key is not simply choosing stacked or wound. The better question is whether the core design fits the transformer’s real performance target.
The right core should be selected from both electrical and mechanical views. A core may look correct, but still fail to meet loss, noise, or assembly requirements.
The core must match the transformer’s rated capacity. It must also match single-phase or three-phase structure. A wrong match can affect magnetic balance, winding space, and thermal performance.
The frequency and installation environment also matter. A core for a standard distribution transformer may not suit a high-frequency or special-duty application.
Core loss and no-load current show how the core behaves when energized. These values are more useful than appearance alone.
A supplier should understand the target magnetic flux density and loss requirement. Performance tests can help confirm whether the finished core meets the design value.
Transformer cores are usually built according to drawings. The drawing should include key dimensions, tolerances, window size, and technical parameters.
Tight dimensional control helps winding installation, clamping, and final transformer assembly. It also reduces correction work during production.
A reliable core should pass practical checks before shipment. These may include visual inspection, dimensional inspection, interlayer insulation checks, ground insulation checks, and excitation characteristic tests.
These inspections help catch hidden problems. They also support stable transformer production at scale.
Tip：A clear drawing package reduces delays, material mismatch, and repeated production adjustments.
A distribution transformer core guides magnetic flux, supports induction, lowers loss, controls heat, and improves stable voltage conversion. JIACHEN POWER provides wound, stacked, and customized transformer core solutions focused on low loss, quieter operation, dimensional accuracy, and reliable service. Its products help transformer builders improve performance and match demanding project needs.
A: A distribution transformer core guides magnetic flux for voltage conversion.
A: The distribution transformer core reduces loss, heat, and noise.
A: It uses magnetic material and laminations to limit waste.
A: Yes. Lower loss can reduce long-term energy cost.
A: It depends on design, size, loss target, and drawings.
A: Yes. A poor distribution transformer core may vibrate more.
