What Is the Purpose of Providing an Iron Core in a Transformer?

A transformer looks simple from outside. Yet its real work happens inside. The transformer iron core is the reason power moves efficiently between windings. In this article, we will explain why it matters, how it controls magnetic flux, and what buyers should check when choosing a core.

Key Takeaways

● A transformer iron core provides a low-reluctance path for magnetic flux, so energy can transfer efficiently between the primary and secondary windings.

● It concentrates magnetic flux inside the transformer instead of letting it spread through air.

● The iron core helps reduce magnetizing current, heat, vibration, and energy waste.

● Laminated silicon steel is used because it reduces eddy current loss and improves long-term efficiency.

● Core design, material grade, lamination thickness, stacking accuracy, and joint quality all affect performance.

● A well-made transformer iron core supports stable voltage output, lower no-load loss, lower noise, and better service life.

● Buyers should not judge a core only by size or price. They should review drawings, loss targets, material requirements, and application conditions.



The Main Purpose of a Transformer Iron Core

The main purpose of providing an iron core in a transformer is to guide magnetic flux. When AC current enters the primary winding, it creates a changing magnetic field. The iron core gives this field a controlled path.

Without a core, much of the magnetic field would spread into the air. Air has high magnetic reluctance. That means it resists magnetic flux. Iron and silicon steel have much higher magnetic permeability, so they carry flux far better.

This is why a transformer iron core is often called the magnetic heart of the transformer. It does not create energy. Instead, it helps the transformer transfer energy more efficiently from one winding to another.

The core also improves electromagnetic induction. As the magnetic flux changes inside the core, it links with the secondary winding. This changing flux induces voltage in the secondary side. The stronger and more controlled the flux path is, the more stable the transformer can be.

A good core also reduces magnetizing current. The transformer needs less current to build the required magnetic field. This lowers wasted energy and helps reduce heating during operation.

Tip：When checking a transformer iron core, ask for core loss targets, drawing tolerances, and material thickness before comparing prices.



How the Iron Core Guides Magnetic Flux Between Windings

A transformer works through electromagnetic induction. The primary winding receives alternating current. This current creates an alternating magnetic flux. The iron core carries that flux around a closed magnetic path.

The secondary winding sits around the same core. When the flux passes through it, voltage appears across the secondary winding. This is the basic process behind step-up and step-down transformers.

The core keeps the flux concentrated. This matters because flux leakage reduces efficiency. Leakage flux does not link fully with the secondary winding. It can also create extra heat and unwanted electromagnetic effects.

A transformer iron core improves magnetic coupling between the primary and secondary windings. Better coupling means the transformer can transfer energy with less waste. It also supports more predictable output voltage.

This is why most power transformers do not use air as the main flux path. Air-core designs can work in special high-frequency systems. Yet for power distribution, industrial equipment, reactors, and converter-related applications, an iron-based core is far more practical.



Why Core Material Affects Transformer Efficiency

The core material has a direct effect on transformer efficiency. The best material must magnetize and demagnetize easily during each AC cycle. It must also limit internal losses.

Standard iron is not enough for most modern transformers. It can carry magnetic flux, but it may also create high losses. That is why electrical steel, often called silicon steel, is widely used in transformer core production.

Silicon steel offers high magnetic permeability and improved electrical resistivity. High permeability helps carry flux. Higher resistivity helps reduce eddy currents. Together, they support lower core loss and better energy efficiency.

Two common loss types matter here. Hysteresis loss happens when magnetic domains inside the steel reverse direction during AC operation. Eddy current loss happens when circulating currents form inside the metal. Both turn useful energy into heat.

A transformer iron core should use material suited to the design. The correct choice depends on frequency, capacity, voltage class, efficiency target, and working environment. It also depends on the drawing and technical requirements.

For many transformer projects, material selection should be discussed early. If the material grade is wrong, the finished transformer may run hotter, waste more energy, or fail to meet performance goals.

Note：Low core loss is not only an efficiency issue. It also affects heat control, noise, and long-term reliability.



Why Transformer Iron Cores Are Laminated

A transformer iron core is not usually made from one solid block of metal. It is made from many thin sheets. These sheets are called laminations.

The reason is simple. A solid metal core allows large eddy currents to circulate inside it. These currents waste energy and create heat. Heat can reduce efficiency and shorten the life of insulation and nearby parts.

Laminations reduce this problem. Each thin sheet limits the path of eddy currents. Surface insulation between sheets further restricts current flow. This helps the transformer run with lower iron loss.

Lamination thickness also matters. Thinner sheets can help reduce eddy current loss, especially when the design requires lower losses. However, the best thickness depends on the transformer design, operating frequency, and required performance.

Manufacturing quality is just as important as material choice. Burrs, poor alignment, uneven stacking, and loose joints can create unwanted gaps. These gaps increase magnetic reluctance. They may also increase noise and vibration.

A high-quality laminated core needs accurate cutting, clean edges, proper stacking, and stable packing. For stacked iron cores, the process usually starts with prime coils, slitting to the required width, cutting by drawing, stacking, and final packing.



How Core Shape and Construction Influence Performance

The shape and construction of the core affect how smoothly magnetic flux flows. A transformer iron core may use stacked construction, wound construction, or special joint structures.

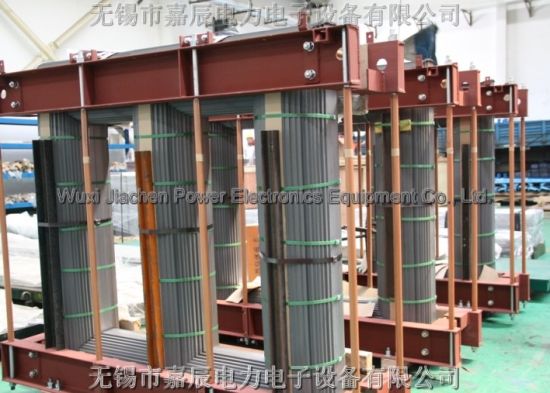

Stacked cores use cut laminations arranged layer by layer. They are common in many transformer designs because they allow flexible dimensions and drawing-based customization. They are also suitable for a range of power and distribution applications.

Wound cores are made from continuous strips of electrical steel. The strip is wound into the required shape, then processed further. This design can create a smoother magnetic path in some applications.

Step-lap construction is another important method. In this design, laminations overlap in steps at the joints. This reduces magnetic gaps and helps flux move more smoothly across the joint area.

Smoother flux flow can improve efficiency. It can also reduce vibration and noise. For transformers installed in commercial, residential, or industrial environments, lower noise is often a valuable benefit.

Core construction must match the application. A transformer used in continuous operation needs stable loss control. A dry-type transformer may place more focus on noise and heat. A reactor or converter application may require a different magnetic design.

There is no single best core for every transformer. The best choice depends on the electrical design, installation environment, duty cycle, and performance target.

Tip：For custom cores, provide complete drawings and technical parameters early. This helps avoid material mismatch and tolerance problems.



What Problems the Iron Core Helps Solve

The iron core solves several practical transformer problems. The first is weak magnetic coupling. If the flux does not link both windings well, the transformer wastes energy. A proper core improves coupling and supports stable energy transfer.

The second problem is high magnetizing current. A poor flux path forces the transformer to draw more current just to build the magnetic field. This increases no-load current and reduces efficiency.

The third problem is heat. Core losses appear as heat inside the transformer. If the core material, lamination, or stacking quality is poor, the transformer may run hotter than expected.

The fourth problem is noise. Transformer noise is often linked to magnetic behavior, vibration, and core assembly quality. Better material, tighter joints, and smoother flux paths can reduce operational noise.

The fifth problem is size. Without an iron core, a transformer would need more turns, more space, or more current to reach similar performance. The core allows a compact and practical design.

These benefits make the transformer iron core essential for modern power systems. It improves performance in ways that are easy to overlook but costly to ignore.



Transformer Iron Core vs Air Core

The main difference between an iron core and an air core is magnetic permeability. Iron-based materials carry magnetic flux much more easily than air. This makes them better for most power transformer designs.

An air-core transformer has no iron path to concentrate flux. This reduces some core-related losses, but it also reduces magnetic coupling. For power transfer at common power frequencies, this is usually inefficient.

An iron core gives the magnetic field a defined path. It allows the transformer to use fewer turns, smaller size, and lower magnetizing current. This is why iron-core transformers are widely used in power distribution and industrial systems.

Air-core designs still have value. They can be used in radio-frequency circuits, pulse systems, or special applications where avoiding core saturation matters. But they are not the normal choice for distribution or power transformers.

The comparison below shows the practical difference.

This comparison explains why the iron core remains central in most transformer designs. It offers the best balance of efficiency, size, and practical performance.



Practical Factors When Evaluating a Transformer Iron Core

When selecting a transformer iron core, the first factor is core loss. Lower no-load loss helps reduce operating cost. This is especially important when the transformer runs for long hours.

The second factor is material grade. Electrical steel should match the required magnetic performance. Buyers should not select material only by price. A cheaper material may cause higher losses over the transformer’s service life.

The third factor is lamination thickness. Common transformer core designs may use different thicknesses based on loss targets and design needs. The correct choice should follow engineering requirements.

The fourth factor is dimensional accuracy. Core dimensions must match the drawing. Poor tolerances can affect assembly, magnetic gaps, and final transformer performance.

The fifth factor is stacking quality. Tight stacking, proper alignment, and clean edges support better flux flow. They also help reduce noise and vibration.

The sixth factor is application fit. Distribution transformers, power transformers, electronic transformers, reactors, and converters do not always need the same core structure. Each application has its own load profile and design target.

Here is a simple evaluation table.

A good transformer iron core should not only meet size requirements. It should also support the target efficiency, noise level, thermal behavior, and service life.



Conclusion

A transformer iron core gives magnetic flux a clear, low-loss path. It improves induction, lowers wasted energy, and supports stable transformer output. JIACHEN POWER provides laminated and customized transformer cores focused on low core loss, lower noise, and reliable performance. Its products help engineers build efficient transformers for demanding power applications.



FAQS

Q: What does a transformer iron core do?

A: A transformer iron core guides magnetic flux between windings.

Q: Why is iron used in transformer cores?

A: Iron carries magnetic flux better than air.

Q: How does the core reduce energy loss?

A: Laminations reduce eddy currents and heat.

Q: Does core quality affect transformer price?

A: Yes. Better material and accuracy often cost more.

Q: Is an air core better than an iron core?

A: Not for most power transformers.

Q: Can a bad core cause noise?

A: Yes. Poor joints and gaps can increase vibration.
