Can a Transformer Work Without an Iron Core?

A transformer without iron sounds impossible at first. Yet the answer is more interesting. A transformer can work without an iron core, but it will not work the same way. In this article, we explain why the transformer iron core matters, when coreless designs work, and when they create problems.

Key Takeaways

● A transformer can work without an iron core if changing magnetic flux still links the primary and secondary windings.

● The transformer iron core is not the source of electricity. It guides magnetic flux and improves coupling.

● Air-core transformers can work in high-frequency, wireless, and signal applications, but they are usually poor choices for 50/60 Hz power use.

● A transformer iron core helps reduce leakage flux, magnetizing current, size, heat, and unstable voltage output.

● Silicon steel, laminated structures, wound cores, stacked cores, and ring cores help improve efficiency and control magnetic loss.

● The best core choice depends on frequency, load, efficiency target, space, heat, and cost.

● For most power transformers, removing the core is technically possible but commercially impractical.



Quick Answer: Can a Transformer Work Without an Iron Core?

Yes, a transformer can work without an iron core. It only needs changing magnetic flux between two windings. When alternating current flows through the primary winding, it creates a changing magnetic field. If that field reaches the secondary winding, it can induce voltage.

So, the iron core is not the basic reason a transformer works. The basic reason is electromagnetic induction. Still, the transformer iron core plays a major role in making the process useful. It gives the magnetic field a better path. It helps more flux reach the secondary winding. It also reduces waste.

When the core is removed, the magnetic field must pass through air. Air has very low magnetic permeability compared to iron, silicon steel, or other magnetic materials. This means the field spreads out more easily. Much of it misses the secondary winding. This is called leakage flux.

An air-core transformer can still transfer energy. It may work in radio-frequency circuits, wireless charging systems, or laboratory demonstrations. But for normal power applications, especially at 50 or 60 Hz, it usually becomes large, weak, and inefficient.

The direct answer is simple: yes, it can work, but not well for most power needs. The transformer iron core turns a working idea into a practical machine.

Yes, if magnetic flux still links both windings

A transformer needs two coils and a changing magnetic field. The primary coil creates the field. The secondary coil receives it. If the flux changes through the secondary coil, voltage appears across it.

This can happen even without iron. Two coils placed close together can transfer energy through air. That is why simple air-core transformers work in experiments. It is also why wireless charging is possible.

However, weak coupling limits performance. Only part of the field reaches the second coil. The rest escapes into nearby space.

What changes when the core is removed?

The magnetic path becomes much weaker. The transformer needs more current to create useful flux. It may also need larger coils or closer spacing.

Voltage regulation becomes worse. Output voltage may drop more when load increases. Heat can rise because more current is needed. The design may also disturb nearby electronics due to stray magnetic fields.

Why the transformer iron core changes everything

A transformer iron core concentrates magnetic flux. It keeps most of the field inside a controlled path. It also helps the primary and secondary windings share the same magnetic circuit.

This improves power transfer. It reduces leakage. It allows a smaller transformer to handle more energy. It also helps stabilize performance under load.

Tip: For low-frequency power projects, treat the core as a main design part, not a support part.



Why Most Practical Transformers Use a Transformer Iron Core

Most practical transformers use a magnetic core because efficiency matters. The goal is not only to induce voltage. The goal is to transfer energy safely, steadily, and economically.

A transformer iron core gives the magnetic field a low-reluctance path. Reluctance is like resistance, but for magnetic flux. Air has high reluctance. Iron and silicon steel have much lower reluctance. This is why they guide flux better.

In power transformers, this difference is huge. A low-frequency transformer without a magnetic core would need many more turns or a much larger coil area. It would also waste more energy.

The core also helps reduce the magnetizing current. This is the current needed to set up the magnetic field. If the core is poor, the current rises. If it rises too much, the transformer heats up and loses efficiency.

Many modern transformer cores use electrical steel. Grain-oriented silicon steel is often used when flux mainly follows one direction. Non-grain-oriented steel may be used when flux travels in more than one direction. Laminated construction helps reduce eddy current losses by breaking the path of unwanted circulating currents.

A good core is not only about material. Its shape, lamination fit, cutting quality, insulation coating, and assembly accuracy also matter. Small gaps can increase noise, loss, and heat. Poor surface quality may weaken long-term performance.



What Types of Transformers Can Work Without an Iron Core?

Some transformers are designed to work without an iron core. These are not usually power distribution transformers. They serve special applications.

Air-core transformers are the clearest example. They use air as the main magnetic path. The windings are arranged to transfer energy through open space. This design can be useful at high frequencies, where iron or silicon steel may create too much loss.

Radio-frequency transformers may use air-core designs. In these circuits, bandwidth and low core loss can matter more than compact power transfer. Iron cores may not respond well at high frequency. They may heat, distort signals, or saturate.

Wireless power systems also transfer energy across an air gap. A phone charger, inductive pad, or contactless power coupler does not use a closed transformer iron core in the same way as a standard power transformer. Instead, the design accepts the air gap and compensates for it with coil geometry, frequency, and control circuits.

Coreless coils also appear in educational models. They help students see how induction works. But they should not be confused with industrial transformer design. A demo can show the principle, while a real power system must meet efficiency, safety, and thermal demands.

Note: “No iron core” does not always mean “no core.” Some transformers use ferrite, amorphous alloy, or other magnetic materials instead.



Why Air-Core Transformers Are Not Ideal for Power Distribution

Power distribution needs stable voltage, low loss, safe operation, and long service life. Air-core transformers struggle in these areas.

The first issue is leakage flux. Without a transformer iron core, the magnetic field spreads through air. Only part of it links both windings. This wastes energy and weakens output.

The second issue is size. To increase coupling, the coils may need more turns, larger diameter, or tighter placement. This increases material use. It can also make insulation and mechanical support harder.

The third issue is magnetizing current. Air is a poor magnetic path, so the primary winding needs more current to build the same useful flux. This can cause extra heat and lower efficiency.

The fourth issue is voltage regulation. A power transformer must hold output voltage within a useful range. If coupling is weak, the output can fall sharply under load. This makes the transformer less reliable for industrial equipment, buildings, or grid systems.

There is also a safety and interference concern. Stray magnetic fields can affect nearby parts. In high-power systems, this can become a serious design problem.

Tip: If the application runs at 50/60 Hz and carries meaningful power, an air-core design usually needs extra review before approval.



How Transformer Iron Core Design Improves Efficiency

A transformer iron core is not just a block of metal. It must be designed for magnetic performance. Material, structure, and processing all affect loss.

One major loss is hysteresis loss. It happens as the magnetic domains inside the core reverse again and again. Better electrical steel reduces this loss. That means less heat and better efficiency.

Another major loss is eddy current loss. When the magnetic field changes, unwanted currents can flow inside the core. Laminations reduce these currents. Thin sheets, proper insulation, and precise stacking help keep losses under control.

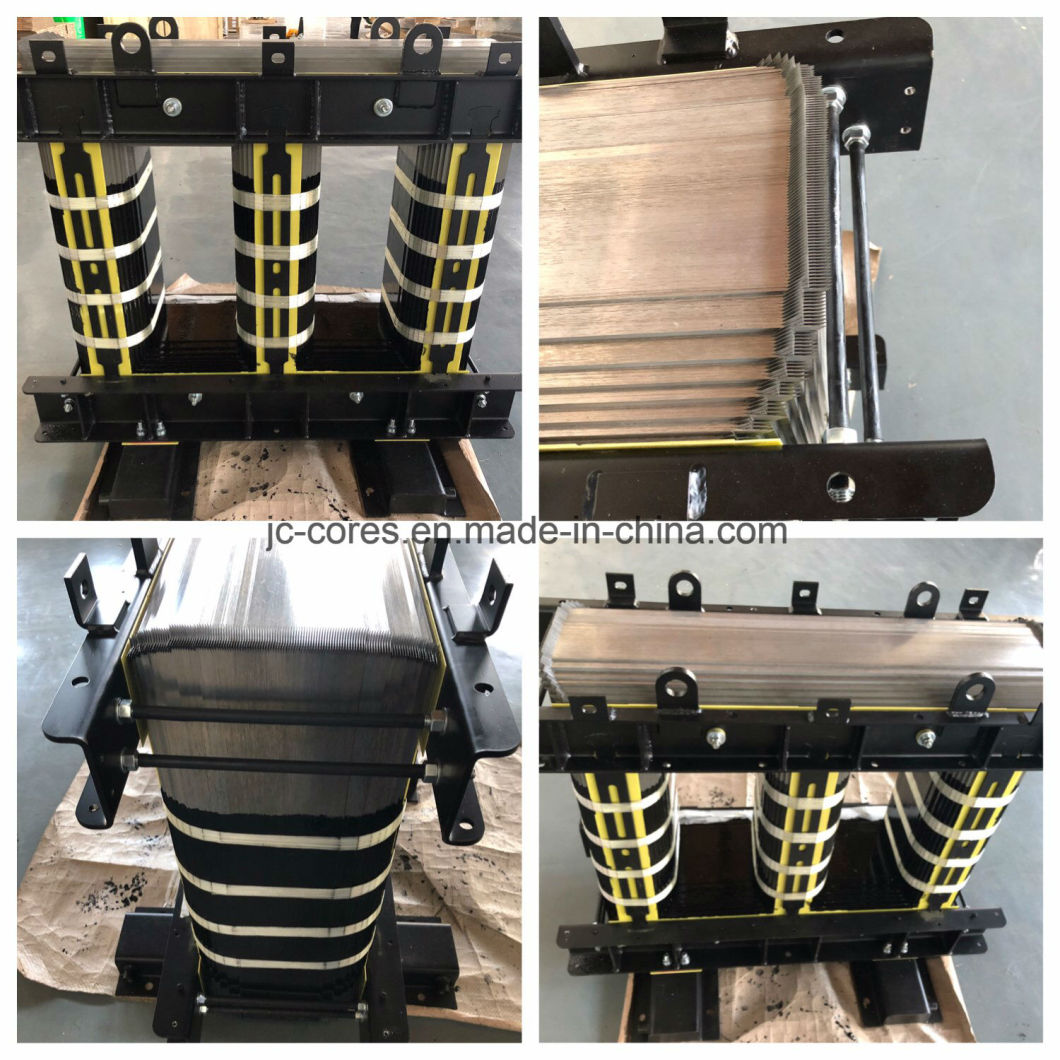

Core shape also matters. A wound core can provide a more continuous magnetic path. This can support uniform flux flow. A stacked core may offer practical cost and assembly advantages. A ring core can provide a compact closed path for specific applications. Cut lamination structures support flexible transformer geometry.

The right core structure depends on the transformer. A power transformer, reactor, instrument transformer, and electronic transformer may need different priorities. Some need low no-load loss. Some need compact shape. Some need stable performance under changing loads.

Quality control is also critical. A high-grade material can fail to perform if cutting, stacking, or assembly is poor. Burrs, gaps, damaged coatings, and loose construction can increase noise and loss. This is why dimensional accuracy and material consistency matter.

Note: Core loss happens even when a transformer has no load, so low-loss core design can reduce long-term operating cost.



Iron Core vs Ferrite Core vs Air Core

The phrase “without an iron core” can mean different things. It may mean a true air-core transformer. It may also mean a transformer using ferrite or another magnetic core material.

Iron and silicon steel cores are common in power-frequency transformers. They are strong choices for 50/60 Hz applications. They offer high permeability, good flux guidance, and practical cost-performance balance.

Ferrite cores are common in high-frequency transformers. They often appear in switching power supplies, chargers, converters, and electronic circuits. Ferrite materials have high electrical resistance, which helps reduce eddy current loss at high frequency. They are not the same as a transformer iron core, but they still guide magnetic flux.

Air cores suit special high-frequency or contactless applications. They avoid core saturation. They also avoid some core losses. But they give up strong magnetic coupling. This limits their use in power transfer at low frequency.

A simple way to decide is to start with frequency. Low-frequency and high-power applications usually need a magnetic core. High-frequency and low-power applications may use ferrite or air. Wireless systems may accept an air gap, but they need careful coil and circuit design.



How to Decide Whether Your Transformer Needs an Iron Core

Start with operating frequency. If the transformer works at 50 or 60 Hz, it will usually need a transformer iron core, silicon steel core, or another suitable magnetic core. At high frequency, ferrite or air-core designs may become possible.

Next, check the power level. Low-power signal transformers can accept lower efficiency in some cases. Power transformers cannot. Higher power means more heat risk, more material cost, and more need for stable magnetic coupling.

Then review the efficiency target. A transformer used every day can waste a lot of energy over time if its core is poor. Low no-load loss and stable flux flow can create real savings in long-term operation.

Space also matters. A coreless transformer may need more winding material and more physical room. A well-designed core can make the transformer more compact.

Thermal performance is another key point. More current and higher loss create heat. Heat reduces insulation life and may shorten transformer service life. Core choice affects this directly.

Finally, match the core structure to the application. Wound cores, stacked cores, ring cores, cut lamination cores, and instrument cores serve different design goals. A good supplier should help align the core structure with voltage, power, frequency, size, and efficiency needs.



Conclusion

A transformer can work without an iron core, but most power designs need one for stable and efficient output. JIACHEN POWER provides transformer core solutions built for magnetic performance, low core loss, and long service life. Its wound, laminated, ring, stacked, and customized core options help users match real power needs with reliable transformer value.



FAQS

Q: Can a transformer work without a transformer iron core?

A: Yes. A transformer iron core is not required, but efficiency drops in most power uses.

Q: Why does a transformer use an iron core?

A: It guides magnetic flux, reduces leakage, and improves power transfer.

Q: Is an air-core transformer cheaper?

A: Sometimes, but larger coils and lower efficiency can raise total cost.

Q: Which is better, air core or transformer iron core?

A: A transformer iron core is better for low-frequency power. Air cores suit special high-frequency uses.

Q: Can removing the core cause failure?

A: It may cause weak output, heat, poor regulation, or magnetic interference.

Q: Does a ferrite core count as iron core?

A: No. Ferrite is different, but it still guides magnetic flux.
