What Is the Distribution Transformer Core?

A transformer may look simple from outside. Yet its real performance starts inside. The distribution transformer core controls magnetic flow, energy loss, noise, and long-term reliability. In this article, you will learn what it is, how it works, and how to judge a good core.

Key Takeaways

● A distribution transformer core is the magnetic center of a distribution transformer. It provides a low-resistance path for magnetic flux, helping electrical energy transfer efficiently between windings.

● Its material, structure, cutting accuracy, lamination quality, and assembly process all affect transformer loss, sound level, heat, and long-term service stability.

● Common core forms include wound cores and stacked laminated cores. Wound cores often support compact design and smooth magnetic flow, while stacked cores offer flexible sizing and easier customization.

● Electrical steel and amorphous alloy are common core materials. The right choice depends on efficiency targets, cost needs, and transformer design requirements.



What Is a Distribution Transformer Core?

A distribution transformer core is the part that carries magnetic flux inside a distribution transformer. It is usually made from magnetic materials such as electrical steel or amorphous alloy. Its job is not to carry current like a wire. Instead, it guides the changing magnetic field created by the primary winding.

When current flows through the primary winding, it creates magnetic flux. The core gives this flux a controlled path. The flux then links to the secondary winding and helps induce voltage. This is how the transformer transfers energy from one voltage level to another.

Without a suitable core, much of the magnetic field would spread into the air. That would reduce efficiency and increase energy loss. The transformer would need more input energy to deliver the same output. It may also become larger, hotter, and less stable.

A distribution transformer core also affects no-load loss. This loss happens even when the transformer has little or no load. Since distribution transformers often stay energized all day, no-load loss matters a lot. A small improvement in core loss can create long-term energy savings.

It is useful to think of the core as the magnetic road inside the transformer. A smooth road reduces resistance and waste. A poor road causes delay, noise, and heat. The same idea applies to magnetic flux inside the core.

Note：When comparing cores, do not only ask for size. Ask for core loss, material type, structure, and inspection standards.



Main Components and Structure of a Distribution Transformer Core

A typical distribution transformer core includes limbs, yokes, and windows. The limbs carry the windings. The yokes connect the limbs and complete the magnetic circuit. The window area gives space for the coil structure and insulation design.

In a single-phase transformer, the core may have a simpler magnetic path. In a three-phase transformer, the core must support balanced magnetic flow among phases. This makes the core layout more important. The geometry affects flux distribution, mechanical strength, and final transformer size.

There are two common structural ideas: wound core and stacked core. A wound core is made by winding magnetic strip material into a continuous shape. This can create a smoother magnetic path. A stacked core is made from layers of cut laminations. These sheets are arranged to form the required magnetic circuit.

Both structures can work well. The right choice depends on the transformer design, production method, performance target, and installation needs. A compact pole-mounted transformer may value low loss and tight structure. A larger customized transformer may need flexible core dimensions and easy assembly.

Dimensional accuracy also matters. If the core window is not correct, coil assembly becomes difficult. If the joints are poor, magnetic resistance can rise. Small errors may cause higher loss, extra vibration, or uneven stress.



Common Materials Used in Distribution Transformer Cores

The most common material for a distribution transformer core is electrical steel. Grain-oriented electrical steel is widely used because its magnetic properties are strong in the rolling direction. This helps magnetic flux move more easily through the core.

Electrical steel is usually made into thin sheets or strips. Thin material helps reduce eddy current loss. Eddy currents are small circular currents caused by changing magnetic fields. They waste energy as heat. Laminated or wound construction helps control this problem.

Amorphous alloy is another option. It is often used when energy-saving performance is a priority. It can reduce no-load loss compared with many traditional silicon steel designs. However, it may need careful handling and a suitable manufacturing process.

Material thickness, coating quality, and surface condition all affect performance. A good material can still perform poorly if it is damaged, stressed, or assembled badly. Cutting burrs, scratches, rust, or poor insulation between layers can reduce core quality.

Material choice should match the transformer’s real duty. A low-loss material may cost more at first. Yet it may reduce long-term power loss. For transformers that run continuously, this difference can be important.

Tip：Choose core material based on lifetime operating cost, not only purchase cost.



Wound Core and Stacked Core: Which Design Is Used for What?

A wound core is produced from continuous magnetic strip material. The material is wound into the required shape under controlled tension. This structure can reduce gaps in the magnetic path. It can also support lower core loss and quieter operation when made correctly.

Wound cores are often valued for compact design and stable magnetic performance. They are useful where efficiency and noise control are important. The winding process must be consistent. If tension is uneven, internal stress can build up and affect magnetic properties.

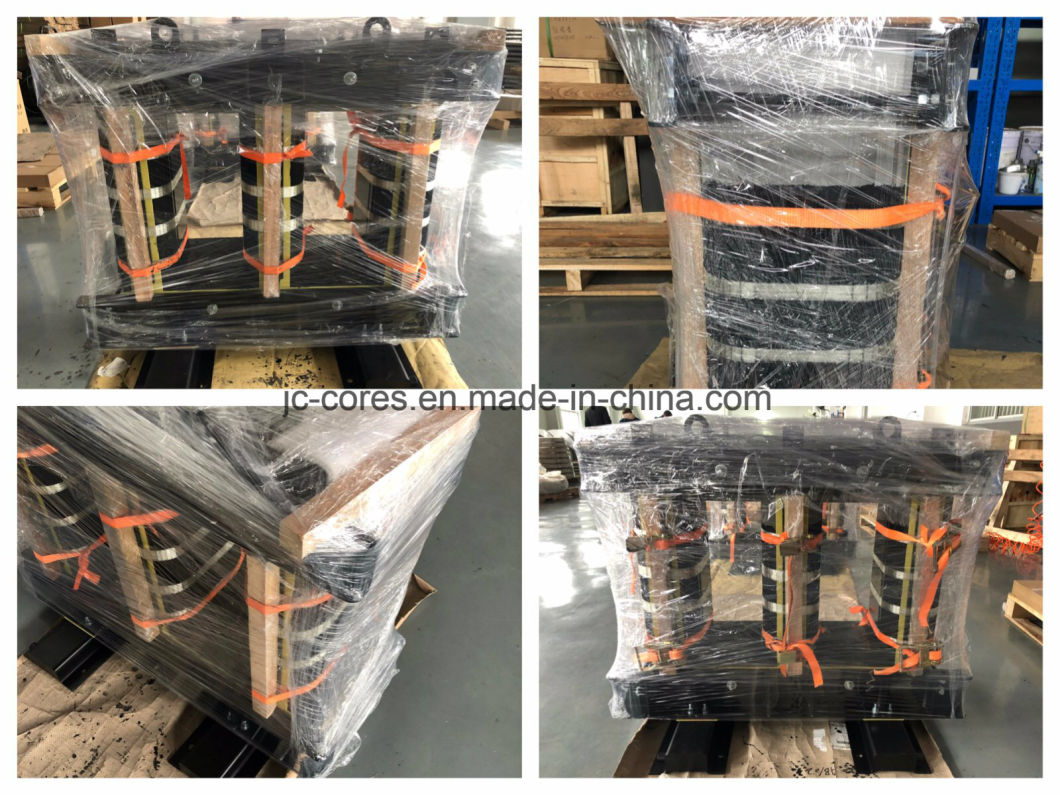

A stacked core is built from cut laminations. The sheets are stacked in a planned pattern. This design is flexible because manufacturers can adjust size and geometry for different transformer requirements. It also allows practical assembly for larger or custom designs.

Stacked cores depend heavily on cutting accuracy and joint quality. If the layers are not aligned well, the magnetic circuit may become less efficient. A good stacked design can still deliver reliable performance when materials and assembly are controlled.

Here is a simple comparison:

The best choice is not always the most expensive one. It is the one that matches the transformer’s design goal. A core for a quiet residential area may need strong noise control. A core for continuous industrial power supply may need low loss and thermal stability.



How a Distribution Transformer Core Affects Performance

The core has a direct effect on transformer efficiency. Core loss comes mainly from hysteresis loss and eddy current loss. Hysteresis loss happens as the magnetic domains reverse during each AC cycle. Eddy current loss happens when circulating currents form inside the metal.

Lower core loss means less wasted energy. It also means less heat. Less heat can improve the working environment inside the transformer. This may support longer insulation life and more stable operation.

Noise is another key factor. Transformer hum often comes from magnetostriction and vibration. Magnetostriction means the core material slightly changes shape as magnetic flux changes. Better material, tighter structure, and good assembly can reduce this effect.

The core also supports mechanical reliability. During short-circuit events, the transformer may face strong electromagnetic forces. A stable core structure helps the unit resist movement and stress. Poor core assembly may increase vibration or looseness over time.

Thermal behavior is also important. A high-loss core creates more heat, even at low load. Since distribution transformers often operate day and night, this steady heat can affect long-term reliability.

Note：A low-noise transformer often starts with a well-designed core, not only better outer housing.



Manufacturing and Quality Control Factors Buyers Should Notice

A distribution transformer core needs more than good raw material. The process must protect magnetic properties from start to finish. Cutting, winding, stacking, annealing, curing, and inspection all matter.

For wound cores, strip flatness and winding tension are key. The strip should be tight and even. It should not show waviness, overlap, or gaps. Constant tension helps reduce internal stress. This improves magnetic consistency.

Annealing is also important for many wound core designs. It helps remove stress and restore magnetic properties. Poor annealing can leave the core stressed. That can increase loss and noise.

For stacked cores, cutting accuracy and lamination quality are critical. The sheets should be clean and flat. Edges should be controlled. Surface insulation should stay intact. The joint design should help the magnetic flux pass smoothly.

Final inspection should include dimensions, appearance, insulation, and performance checks. Dimensional checks confirm the core fits the drawing. Visual checks find rust, contamination, cracks, or physical damage. Insulation checks help prevent interlayer shorts. Excitation testing can confirm no-load current and loss behavior.

A reliable supplier should also support drawing-based customization. Distribution transformer designs vary by capacity, phase, coil shape, and installation space. Standard cores may not fit every design. Custom core manufacturing helps match the magnetic circuit to the real transformer structure.

Tip：Before ordering, prepare drawings, target loss values, phase type, capacity range, and installation limits.



How to Choose the Right Distribution Transformer Core

Choosing the right core starts with the transformer’s basic design. You need to know the capacity, voltage class, phase type, frequency, and cooling method. These factors affect core size, material, and structure.

Next, define the performance target. If energy saving is the main goal, low no-load loss becomes important. If the transformer will operate near homes, schools, or commercial spaces, noise control may matter more. If it serves a demanding load, mechanical strength and heat stability become critical.

Material selection should follow these targets. Electrical steel is a mature and common choice. Amorphous alloy can fit projects that prioritize lower no-load loss. The final decision should include purchase cost, energy cost, processing needs, and transformer design limits.

The structure should also fit production and maintenance needs. Wound cores may support compact and efficient designs. Stacked cores may offer more flexible sizing. A custom core may be the best option when standard dimensions do not match the winding or tank design.

Buyers should also ask how the core is tested. A clear inspection process gives more confidence. Core loss, no-load current, insulation resistance, and dimensional tolerance are practical indicators. They help reveal whether the core will perform well after transformer assembly.

Price should not be reviewed alone. A cheaper core may increase energy loss for years. It may also create more heat or noise. The right core should balance initial cost, operating cost, performance, and reliability.



Common Misunderstandings About Distribution Transformer Cores

One common misunderstanding is that all transformer cores are the same. They are not. Two cores may look similar but perform very differently. Material grade, processing quality, joint design, stress control, and insulation all change the final result.

Another misunderstanding is that the core only matters at full load. In fact, core loss happens whenever the transformer is energized. Even at light load, the core still uses energy. This is why no-load loss matters in distribution networks.

Some buyers also think material grade alone decides performance. It is important, but it is not the whole story. Poor cutting, rough handling, bad annealing, or weak stacking can reduce the benefit of good material.

Another mistake is ignoring noise. If the transformer will be installed near people, noise may become a serious concern. A better core design can help reduce hum before it becomes a field problem.

Finally, some teams select cores only by drawing size. Size matters, but it is only the starting point. A complete review should include loss, current, insulation, structure, and process quality.



Conclusion

A distribution transformer core guides magnetic flux, reduces energy waste, and supports stable transformer operation. JIACHEN POWER provides wound, stacked, laminated, and amorphous core options for practical transformer needs. Its value comes from low-loss design, careful process control, reliable inspection, and customized service for different power applications.



FAQS

Q: What is a distribution transformer core?

A: A distribution transformer core is the magnetic path inside the transformer.

Q: Why does the distribution transformer core matter?

A: The distribution transformer core affects loss, heat, noise, and reliability.

Q: How does a core reduce energy loss?

A: It guides flux through low-loss magnetic material.

Q: Is a wound core better than a stacked core?

A: It depends on efficiency, size, noise, and design needs.

Q: Does core material affect price?

A: Yes. Better materials may cost more but save energy.

Q: What causes core noise?

A: Magnetic vibration, stress, gaps, and loose assembly can cause noise.
