What Is the Best Material for a Transformer Core?

Choosing core material is not a small detail. It can change loss, heat, noise, and service life. For most 50/60 Hz transformers, a transformer iron core made from grain-oriented silicon steel is the most practical choice. In this article, we explain why, compare other materials, and show what buyers should check before selection.

Key Takeaways

● The best material for most transformer cores is grain-oriented silicon steel, often called CRGO silicon steel.

● A high-quality transformer iron core should offer low core loss, high permeability, good coating quality, and stable magnetic performance.

● CRGO steel works well because transformer flux usually follows one main direction.

● CRNGO steel is useful in other electrical equipment, but it is not usually the first choice for standard transformer cores.

● Amorphous alloy can reduce no-load loss, but it may bring higher cost and different processing needs.

● Ferrite is better for high-frequency electronics, not large power or distribution transformers.

● Material quality matters, but cutting, slitting, stacking, winding, and annealing also affect final performance.

● Buyers should match core material with transformer type, efficiency target, frequency, and structure.



Best Material for a Transformer Core: Why CRGO Silicon Steel Leads

For most power and distribution transformers, grain-oriented silicon steel is the best balanced material. It offers strong magnetic performance, controlled loss, stable processing, and broad design flexibility.

This material is designed so magnetic flux moves more easily in one direction. That matters because transformer flux usually travels along a fixed magnetic path. When the core material supports this path, the transformer needs less magnetizing current and wastes less energy.

A transformer iron core using CRGO silicon steel can reduce hysteresis loss and eddy current loss. Hysteresis loss comes from repeated magnetization. Eddy current loss comes from circulating currents inside the metal. Thin laminated sheets help control these losses.

The surface coating also matters. It separates laminations and improves interlaminar insulation. This helps reduce unwanted current flow between layers. Good coating quality also supports long-term stability during assembly and operation.

CRGO silicon steel is not only efficient. It is also practical. It can be slit, cut, stacked, or wound into different core structures. This makes it suitable for many transformer designs, including wound cores, stacked cores, ring cores, and other custom magnetic core forms.

Tip：When efficiency and reliability both matter, start material selection with low-loss grain-oriented silicon steel.



How CRGO Compares With Other Core Materials

CRGO silicon steel is often compared with CRNGO steel, amorphous alloy, ferrite, and ordinary iron. Each material has value, but not every one fits the same transformer.

CRNGO electrical steel has magnetic properties in many directions. This makes it useful for motors, generators, and equipment where flux direction changes. In a standard transformer, flux direction is more controlled. That is why CRGO steel is usually a better fit.

Ordinary iron is not the best choice. It may carry magnetic flux, but it has higher losses and weaker performance control. Modern transformer design needs more than basic magnetism. It needs low loss, stable permeability, and repeatable sheet quality.

Amorphous alloy can offer very low no-load loss. It can be attractive for energy-saving transformers. However, it may cost more and require different processing methods. It is best used when no-load loss reduction is the main goal.

Ferrite works well in high-frequency transformers. It is common in electronic power supplies. For large low-frequency transformers, silicon steel remains more practical because it handles power frequency operation better.

Note：The best material is not always the most advanced one; it is the one that fits the transformer design.



Key Factors That Decide the Best Transformer Iron Core Material

Operating frequency is the first factor. Most distribution and power transformers work at 50 or 60 Hz. For this range, laminated silicon steel is normally the preferred material. At higher frequencies, designers may choose ferrite or other special materials.

Core loss is the next factor. Lower core loss means less wasted energy when the transformer is energized. It also helps reduce heat. Over long service life, small loss differences can become large operating costs.

Magnetic permeability is also important. Higher permeability allows the core to carry magnetic flux more easily. This can reduce magnetizing current and improve no-load performance.

Flux density must be checked carefully. A material should support the target design without reaching saturation too early. If the core is poorly matched, the transformer may run hot, become noisy, or lose efficiency.

Transformer type also changes the decision. A dry-type transformer, oil-immersed transformer, reactor, converter, or instrument transformer may need different core design. The material should match both electrical performance and mechanical structure.

Tip：Before asking for a quotation, define frequency, loss target, flux density, size limits, and application type.



Why Core Structure Matters as Much as Material

Even the best material can perform poorly if the core is processed badly. A transformer iron core depends on both material quality and structure quality.

A wound core uses a continuous magnetic path. This can reduce magnetic gaps and improve flux flow. It is useful when lower joint loss and compact design are important. Winding quality, forming accuracy, and annealing control all affect performance.

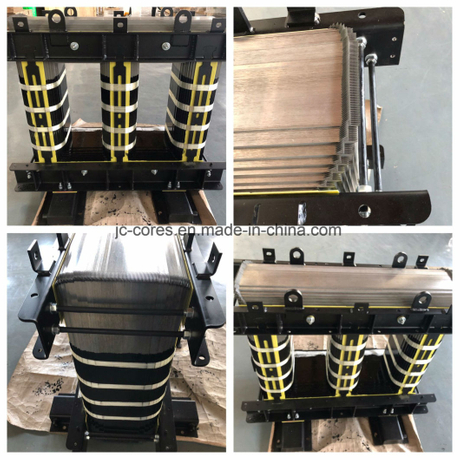

A stacked core uses cut laminations arranged layer by layer. It offers flexible production and easier adjustment for different transformer sizes. Step-lap construction can help reduce local flux disturbance at joints. Good alignment and stable clamping are essential.

Ring cores and special instrument cores serve more specific needs. They may be used where compact shape, measurement accuracy, or special magnetic behavior is required.

The key point is simple. Material selection and core manufacturing cannot be separated. Flatness, burr control, cutting accuracy, stacking precision, and coating protection all influence final core loss and noise.

Note：A premium steel sheet cannot fix poor cutting, rough edges, or loose stacking.



What Buyers Should Check Before Choosing Core Material

Start with the core loss value. This tells you how much energy the core may waste under defined test conditions. Lower values often support better efficiency, but the final choice must still match budget and design.

Next, check thickness. Thinner laminations can reduce eddy current loss. However, thinner material may cost more and may require tighter processing control. The goal is balance, not blind selection.

Surface quality matters too. A smooth and clean surface supports better coating and stacking. Poor surface condition may create gaps, stress, or uneven contact.

Coating performance is another key point. It helps separate laminations and reduce current flow between layers. It also protects the sheet during handling and assembly.

Flatness and dimensional tolerance should not be ignored. Uneven sheets can create air gaps in stacked cores. Air gaps reduce magnetic performance and can increase noise.

Buyers should also ask about processing capability. Slitting, cutting, lamination, stacking, winding, and inspection all affect the finished core. A supplier should understand both material and core manufacturing.



Common Mistakes in Transformer Core Material Selection

One common mistake is choosing only by price. A cheaper material may raise no-load loss. That can increase operating cost for many years. The initial saving may disappear quickly.

Another mistake is choosing a premium material without a real need. If the transformer design does not require very low loss, over-specification may waste budget.

Some buyers focus only on the steel grade. They ignore processing quality. Burrs, poor stacking, weak coating protection, or inaccurate dimensions can reduce performance even when the base material is good.

Application mismatch is also common. A material used for a motor may not suit a transformer. A material used for high-frequency electronics may not suit a distribution transformer. Each design needs its own magnetic logic.

Tip：Evaluate lifecycle cost, not only purchase cost, when selecting transformer core material.



How to Choose the Right Transformer Iron Core Material

First, define the transformer type. Is it for distribution, power equipment, a reactor, a converter, or instrument measurement? The answer will guide the material and structure.

Second, define performance targets. These include no-load loss, exciting current, noise level, temperature rise, and long-term reliability. Clear targets help avoid under-selection or over-selection.

Third, match the material to the core structure. CRGO silicon steel may be used for wound cores, stacked cores, ring cores, or custom laminated cores. The right structure helps the material perform as intended.

Fourth, provide clear technical details to the supplier. Drawings, core dimensions, window size, flux density, frequency, insulation needs, and loss limits all help improve selection accuracy.

Finally, consider production consistency. For repeated orders, stable material supply and controlled processing are as important as the first sample result.



Conclusion

For most low-frequency transformers, CRGO silicon steel is the best practical core material. It gives low loss, high permeability, and stable manufacturing results. JIACHEN POWER provides electrical steel, wound cores, stacked cores, and custom transformer iron core solutions. Its products help improve efficiency, reduce energy waste, and support reliable transformer production.



FAQS

Q: What is the best material for a transformer iron core?

A: CRGO silicon steel is usually best for a transformer iron core in power and distribution use.

Q: Why is silicon steel used in transformer cores?

A: It reduces core loss and helps magnetic flux move efficiently.

Q: Is CRNGO good for a transformer iron core?

A: It can work, but CRGO is usually better for a standard transformer iron core.

Q: Is amorphous alloy better than silicon steel?

A: It can reduce no-load loss, but cost and processing may be higher.

Q: Does core material affect transformer price?

A: Yes. Lower-loss material often costs more, but it can reduce operating cost.

Q: How do I choose a transformer iron core material?

A: Match the transformer iron core material with frequency, loss target, structure, and application.
