In the world of electrical engineering, "loss" is the silent enemy of profitability and sustainability. For years, transformer manufacturers have struggled with energy dissipation, primarily occurring within the magnetic core. As global energy standards become stricter in 2026, the industry is pivoting toward a specific solution: Transformer Loss Reduction Through High-Quality Wound Core Steel.
The core is the heart of any transformer. When we move away from traditional stacked laminations and toward a High efficiency wound core design, we fundamentally change how magnetic flux travels. This guide dives deep into the technical "Expert Insight" of why steel quality and winding techniques are the ultimate levers for performance. Whether you are designing for a High voltage grid or a Custom industrial power supply, understanding the relationship between material science and core geometry is the key to achieving a Low loss footprint.
To understand loss reduction, we must look at how magnetic flux behaves. In a traditional stacked core, the magnetic flux must "jump" across gaps where the steel sheets overlap at the corners. These gaps create resistance and heat. A wound core, however, is created from a continuous strip of silicon steel.
Because the wound core consists of a single, continuous path, there are no joints or air gaps in the main flux path. This physical continuity allows the magnetic field to flow much more smoothly. It reduces "Reluctance," which is the magnetic version of electrical resistance. When we use High efficiency steel in this continuous loop, the transformer runs cooler and quieter.
In a Rectangular or Toroidal wound core, the grain of the silicon steel is always aligned with the direction of the magnetic flux. In stacked cores, the flux occasionally has to travel "against the grain" at the corners. By keeping everything aligned, we minimize "Hysteresis loss," which is the energy wasted as the magnetic domains flip back and forth 50 or 60 times per second.
The steel is the "fuel" for your core's performance. You cannot achieve a Low loss result with mid-grade materials. High-quality Grain-Oriented Electrical Steel (GOES) is the industry standard for any Premium wound core application.
Steel is graded by how many watts of energy it loses per kilogram. Top-tier steel used in High voltage applications often features high silicon content and specialized laser-thinning treatments. These treatments break up magnetic domains, significantly lowering "Eddy current" losses.
Thickness matters immensely. Thinner steel strips reduce the space where circulating "Eddy currents" can form. For a High efficiency wound core, we typically look for strip thicknesses between 0.18mm and 0.23mm. While thinner steel is harder to wind, it is the only way to meet the most demanding Custom industrial energy targets.
| Steel Grade | Typical Thickness | Loss at 1.7T (W/kg) | Best Use Case |
| Standard GOES | 0.30 mm | 1.10 - 1.25 | Standard distribution |
| High Permeability | 0.23 mm | 0.85 - 0.95 | High efficiency units |
| Domain Refined | 0.18 mm | 0.65 - 0.75 | High voltage / Low loss |
The way we wind the steel determines the final mechanical and magnetic integrity of the unit. It isn't just about spinning a coil; it is about tension control and precision.
If the steel is wound too tightly, the mechanical stress actually damages the magnetic properties of the steel. This is known as "Stress-induced loss." A High-quality wound core production line uses Automatic tensioners to ensure the steel is snug but not strained. This balance is crucial for maintaining the Low loss characteristics of the raw material.
A Toroidal wound core is the "perfect" shape for magnetic efficiency. It has no corners at all. Because it is a perfect circle, the flux path is as short as possible. This makes it a favorite for High precision electronics and medical equipment where interference must be zero.

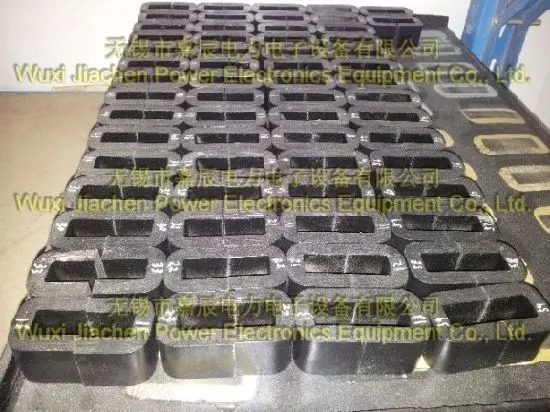

For larger power transformers, a Rectangular wound core is more practical for fitting copper windings. Experts use "Step-lap" winding where the ends of the steel strips are slightly offset. This prevents a single "weak point" in the magnetic circuit and ensures the wound core remains Durable under the high mechanical forces found in High voltage environments.
"No-load loss" is the energy a transformer consumes just by being plugged in, even if no one is using electricity. For a utility company, no-load loss is a pure financial drain.
Because transformers are always energized, a Low loss wound core pays for itself very quickly. Even a 10% reduction in core loss can save thousands of dollars over the 30-year life of a transformer. In the Custom industrial sector, where factories run around the clock, these savings are even more dramatic.
Lower loss means less heat. When a wound core runs cool, the cooling system (like oil or fans) doesn't have to work as hard. This allows for a more compact transformer design. It also extends the life of the paper and oil insulation. By choosing a High efficiency core, you are essentially buying insurance for the entire transformer assembly.
Winding the steel creates physical stress. As mentioned earlier, stress kills magnetic efficiency. To solve this, a High-quality wound core must undergo a process called "Stress-Relief Annealing."
We place the finished wound core into a specialized furnace with an inert atmosphere (usually nitrogen or hydrogen). We heat it to roughly 800°C and then cool it very slowly. This allows the internal atoms of the steel to "relax" back into their optimal positions.
Without proper annealing, a wound core might lose 15-20% of its potential efficiency. After annealing, the Low loss properties are fully restored. For High voltage manufacturers, this step is non-negotiable. It ensures the Custom industrial core meets the exact performance specifications promised during the design phase.
Efficiency isn't just measured in Watts; it's also measured in Decibels. Transformer "hum" is caused by "Magnetostriction"—the way steel slightly changes shape when magnetized.
Stacked cores are notoriously loud because the laminations can vibrate against each other. A wound core, especially a Toroidal one, is much more tightly bound. Because it is a single continuous structure, there is less room for the steel to "buzz."
In modern cities, noise pollution is a major concern. Utilities now specify Low loss and low-noise cores for transformers located near hospitals, schools, or residential towers. A High efficiency wound core is naturally quieter, making it the preferred choice for Custom industrial projects in sensitive areas.
For a procurement officer or engineer, the choice usually comes down to a balance of cost and performance.
| Performance Factor | Stacked Core | Wound Core |
| No-Load Loss | Higher | Low loss (Up to 30% lower) |
| Assembly Labor | High (Hand-stacked) | Low (Automatic winding) |
| Magnetic Efficiency | Moderate | High efficiency |
| Noise Level | Lighter "Hum" | Very Quiet |
| Shape Flexibility | Rectangular only | Toroidal, Rectangular, etc. |
As we can see, while stacked cores are fine for basic applications, the wound core is the clear winner for any project requiring High voltage stability or High efficiency ratings.
As we look toward the end of 2026, the industry is experimenting with "Amorphous" steel. This material has no crystal structure at all, allowing for even lower losses than traditional silicon steel.
An amorphous wound core can reduce losses by another 60-70% compared to standard GOES. However, it is very brittle and difficult to work with. Experts are currently developing new winding machines that can handle these ultra-thin ribbons to create the next generation of High efficiency transformers.
We are also seeing the rise of "Smart Cores." By embedding sensors during the winding process, we can monitor the temperature and magnetic flux of a Custom industrial wound core in real-time. This allows for predictive maintenance, ensuring the High voltage grid stays stable even under extreme loads.
The path to a more efficient power grid runs through the core. By focusing on Transformer Loss Reduction Through High-Quality Wound Core Steel, we address the root cause of energy waste. The combination of High efficiency materials, Toroidal or Rectangular geometries, and precise annealing creates a Low loss component that stands the test of time. Whether you are building for a Custom industrial client or a massive High voltage utility, the wound core is the most effective tool in your engineering arsenal.
Q1: Why is a wound core more efficient than a stacked core?
It is primarily due to the lack of air gaps and the perfect alignment of the steel grain with the magnetic flux path. This reduces reluctance and hysteresis loss significantly.
Q2: Does the shape of the wound core affect its efficiency?
Yes. A Toroidal shape is the most efficient because it has no corners, but a Rectangular wound core is often more practical for large-scale High voltage transformers.
Q3: Can a wound core handle high voltage applications?
Absolutely. In fact, most modern high-efficiency distribution transformers used in the power grid utilize wound core technology to meet strict energy regulations.
