Is Silicon Steel Electrical Steel?

Views: 0     Author: Site Editor     Publish Time: 2026-06-15      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Yes, "silicon steel" and "electrical steel" refer to the exact same high-permeability material. Many engineers use "silicon steel" to describe its metallurgical makeup, which features iron heavily alloyed with silicon. Meanwhile, manufacturers use "electrical steel" to highlight its primary industrial job: optimizing electromagnetic properties. Misunderstanding these standard terms during the Request for Quotation (RFQ) process creates immense risk. It often leads to incorrectly specified grades, excessive core losses in final products, or severe procurement delays. You need precise language to secure the right material for demanding electromagnetic applications.

This guide clarifies the industry terminology you must know. We outline evaluation frameworks for different alloy grades and explore their mechanical behaviors under stress. You will also learn a risk-mitigated approach for sourcing this critical material. Armed with these insights, you can ensure your next high-efficiency motor or transformer project stays on schedule and meets stringent performance targets.

Key Takeaways

  • Silicon steel and electrical steel are interchangeable terms for the same high-permeability iron-silicon alloy.

  • Selection hinges on grain orientation: Grain-Oriented (GOES) is strictly for directional flux (transformers), while Non-Oriented (NOES) supports multidirectional flux (rotating motors).

  • Investing in premium electrical steel with precise insulation coatings directly correlates to meeting stringent global energy efficiency mandates (e.g., IE4/IE5 standards).

  • Procurement bottlenecks—especially for small-batch prototyping—require vetting suppliers based on their slitting, stamping, and metallurgical certification capabilities.

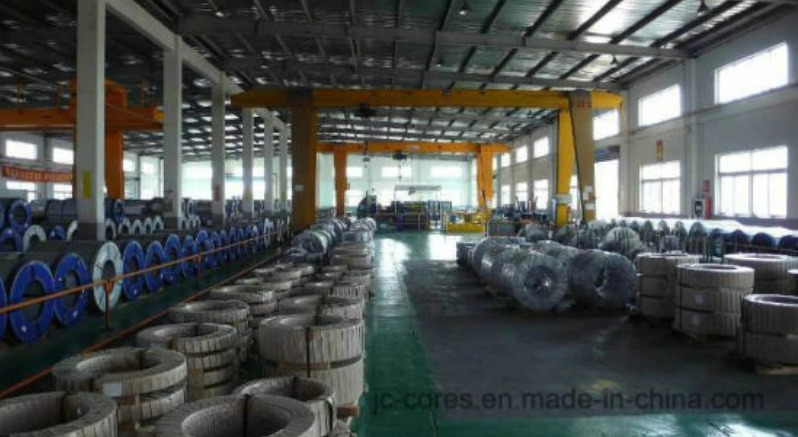

Electrical Steel2.png

The Terminology Overlap: Silicon vs. Electrical Steel

The confusion between these two terms stems from viewing the exact same metal through two different lenses: chemistry and function. When you examine the metallurgical reality of the material, you look at its elemental composition. Pure iron conducts magnetic flux exceptionally well. Unfortunately, pure iron also conducts electricity easily. When magnetic fields alternate rapidly inside pure iron, they generate localized electrical currents called eddy currents. These tiny currents generate massive amounts of waste heat.

To solve this, metallurgists add up to 6.5% silicon to the iron base. This silicon addition drastically increases the electrical resistivity of the metal. Higher resistivity immediately restricts eddy current formation, preventing your motor core from overheating. Because silicon dictates this vital performance upgrade, many mechanical engineers colloquially call the alloy "silicon steel."

However, the application reality dictates a different naming convention. Steel mills engineer this specific alloy exclusively to channel magnetic flux in electrical applications. You will almost never see this material used for structural beams or automotive body panels. Because its sole purpose revolves around electromagnetic efficiency, global standards organizations categorize it formally as electrical steel. Some regions also refer to it as lamination steel or transformer steel.

This distinction matters heavily in a procurement context. When writing material specifications for a manufacturing run, debating the colloquial name wastes time. You must use standard nomenclature. Referencing specific ASTM, EN, or JIS grade designations guarantees you receive the correct material. Simply asking a supplier for "silicon steel" invites ambiguity. A supplier might quote a low-grade, semi-processed alloy when your design actually requires a fully processed, highly refined lamination grade. Always specify the exact international standard code to eliminate supply chain confusion.

Structural Framework: GOES vs. NOES

Choosing the right material variant requires matching the magnetic flux behavior to the mechanical application. If you fail to align these factors, your device will experience severe energy bleed. Engineers divide this alloy into two primary structural categories based on how the internal silicon crystals align during the manufacturing process. These are Grain-Oriented and Non-Oriented variants.

Grain-Oriented Electrical Steel (GOES)

Mills produce Grain-Oriented variants using specialized cold-rolling and annealing techniques. This mechanism forces the silicon crystals to align tightly in one single direction. Think of it like brushing the grain of a heavy fabric. Because the crystals all point the same way, the material offers minimal magnetic resistance along that specific rolling axis. Magnetic flux travels effortlessly down this parallel path.

However, this intense directional alignment makes GOES highly specialized. You cannot use it in rotating applications. Instead, its primary application lies in large stationary equipment where magnetic fields move in fixed, predictable paths. Power transformers, distribution transformers, and large static generators rely entirely on GOES. When evaluating GOES for a project, the primary evaluation metric is the specific core loss measured at high magnetic inductions, typically at 1.5T or 1.7T (Tesla).

Non-Oriented Electrical Steel (NOES)

Unlike its highly aligned counterpart, Non-Oriented variants feature isotropic magnetic properties. During production, mills process the alloy so the crystal structures remain randomly distributed. As a result, magnetic flux can move efficiently in any direction across the two-dimensional plane of the sheet.

This multidirectional capability makes NOES mandatory for rotating machinery. Electric motors, household appliance stators, and EV traction motors constantly shift their magnetic field angles as the rotor spins. The material must accommodate flux approaching from multiple directions simultaneously. The main evaluation metric for NOES involves striking a delicate balance. Engineers must weigh the mechanical yield strength against the overall magnetic permeability. High-speed rotors undergo extreme centrifugal forces, meaning the steel must remain physically strong without sacrificing its ability to conduct magnetic fields.

Comparison Chart: GOES vs. NOES

Feature

Grain-Oriented (GOES)

Non-Oriented (NOES)

Crystal Alignment

Strictly aligned in rolling direction

Randomly distributed (isotropic)

Flux Directionality

Unidirectional

Multidirectional

Primary Application

Transformers, static generators

Electric motors, EV traction motors

Evaluation Metric

Core loss at 1.5T or 1.7T

Yield strength vs. permeability balance

The Business Case for Premium Electrical Steel

Modern engineering projects constantly push for higher power density and stricter efficiency standards. Standard commercial lamination grades often fall short of these new demands. To achieve next-generation performance, design teams must transition to higher-tier materials.

When engineers discuss this top tier, premium electrical steel generally refers to ultra-thin gauges. Standard NOES might measure 0.50mm or 0.65mm thick. Premium grades drop down into the 0.10mm to 0.30mm range. Furthermore, these premium grades feature highly specialized organic or inorganic surface coatings, such as C-5 or C-6 classifications. These thin layers of insulation prevent electrical currents from jumping between stacked laminations.

The performance outcomes and engineering ROI of specifying premium grades are substantial. First, ultra-thin gauges dramatically reduce hysteresis and eddy current losses, particularly at high switching frequencies. As motor controllers utilize faster switching speeds—such as silicon carbide (SiC) inverters—standard thick laminations overheat quickly. Premium thin laminations suppress these high-frequency losses effectively.

This reduction in waste heat creates a cascading design advantage. It enables engineering teams to build smaller, lighter, and cooler motor designs. A cooler motor requires less aggressive liquid cooling infrastructure. A lighter motor improves the thrust-to-weight ratio in aerospace applications. In the electric vehicle sector, cutting motor weight and improving efficiency directly translates to range extension. Consumers demand longer driving ranges, and EV manufacturers rely heavily on premium grades to squeeze every possible mile out of the battery pack.

Manufacturing and Secondary Processing Risks

Specifying the perfect grade on paper represents only half the battle. Processing this material introduces significant challenges on the factory floor. The implementation realities of working with high-silicon alloys catch many inexperienced manufacturing teams off guard. The very element making the metal electrically efficient also makes it notoriously abrasive and brittle.

Stamping out motor laminations reveals the first major risk: rapid tool wear. Higher silicon content degrades stamping dies much faster than standard mild carbon steel. The abrasive nature of the crystals micro-chips the cutting edges of carbide dies. If you fail to anticipate this, you will face unexpected downtime. Production managers must adjust tooling maintenance schedules, planning for more frequent die sharpening when running premium, high-silicon grades.

Cutting-induced stress presents an even stealthier risk. Whether a facility uses laser cutting for prototypes or mechanical shearing for high-volume production, the cutting action introduces severe residual stresses along the edges of the lamination. Stress acts as a physical roadblock to magnetic flux. The cutting process essentially destroys local magnetic properties up to several millimeters inward from the cut edge. In small motor designs where narrow stator teeth carry the bulk of the magnetic field, this degraded edge zone can ruin the motor's efficiency.

To secure performance, engineering teams must implement a strict mitigation strategy. Follow these critical steps when processing silicon-heavy lamination materials:

  1. Factor in post-process stress-relief annealing: Expose the stamped laminations to a carefully controlled thermal cycle. This high-temperature baking process relaxes the disrupted grain structures, restoring the original magnetic permeability along the cut edges.

  2. Verify coating thermal stability: Ensure the chosen surface insulation coating can survive the specific annealing temperature. An incorrect organic coating will vaporize or break down during annealing, destroying the insulation layer and causing catastrophic short circuits in the final core assembly.

  3. Optimize cutting clearances: If using mechanical stamping, adjust die clearances specifically for brittle materials. Tighter clearances prevent excessive edge rollover and minimize the depth of the stress zone.

  4. Monitor laser heat-affected zones: If prototyping with lasers, use fiber lasers with assist gases to minimize the heat-affected zone (HAZ) on thin-gauge materials.

Supplier Evaluation and Sourcing Strategy

Navigating the supply chain for specialized metal alloys requires strategic foresight. Many engineering teams hit a massive roadblock before they even finalize a design: the prototyping hurdle. Finding small-quantity stock for R&D represents a well-known industry pain point. Engineering forums frequently feature frantic posts from developers looking for just fifty kilograms of ultra-thin NOES to build a single test motor.

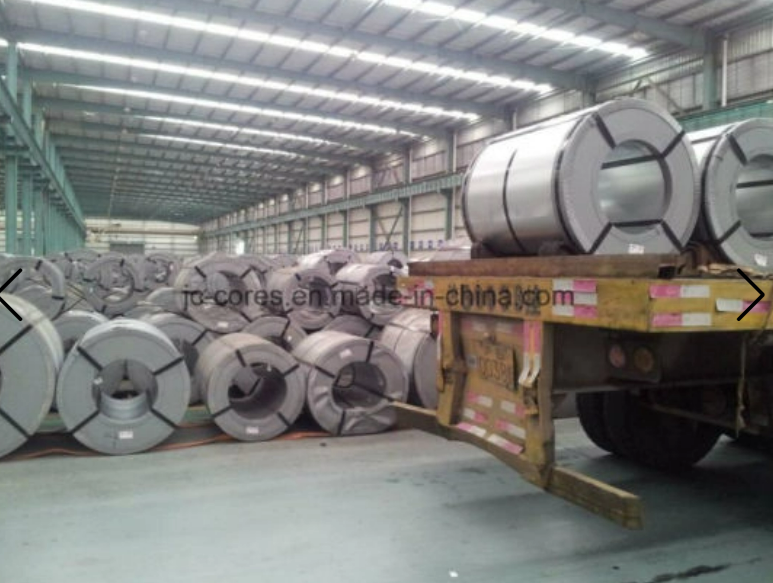

Steel mills produce these advanced alloys in massive master coils weighing several tons. They rarely deal directly with R&D departments. Finding the right intermediate supplier determines how quickly your project moves from CAD to reality. You must vet secondary processors and service centers rigorously.

Use the following shortlisting criteria to evaluate potential suppliers:

  • Inventory & MOQs (Minimum Order Quantities): Can the supplier support low-volume custom slitting? You need a partner willing to shear master coils into sample sizes for your prototypes, while still holding the capacity to fulfill full-coil bulk orders once you transition to mass production.

  • Traceability and Testing: Demand mandatory provision of Mill Test Certificates (MTC). An MTC proves the material matches your exact RFQ. It details critical metrics like the exact core loss measured in watts per kilogram (W/kg), yield strength, and certified coating thickness. Never accept generic uncertified lots.

  • Supply Chain Redundancy: Assess geopolitical risks. Evaluate the balance between domestic stocking programs and reliance on overseas mills. Current geopolitical steel tariffs and shipping delays can cripple a production schedule. A reliable supplier maintains buffer inventory locally to shield your assembly line from international logistical shocks.

  • In-house Processing Capabilities: Prioritize suppliers offering in-house slitting and precision leveling. Moving raw coils between a storage facility and a separate slitting contractor increases the risk of edge damage and introduces unnecessary delays.

Conclusion

Silicon steel is electrical steel. While the semantics might vary depending on whether you talk to a metallurgist or a motor designer, the underlying material remains the same. The success of your project does not depend on debating terminology. Instead, success relies entirely on specifying the exact grade, precise thickness, and appropriate surface coating required for your specific electromagnetic environment.

Your immediate next step action should focus on procurement documentation. Engineers and buyers must audit their current RFQ templates. Stop sending requests asking vaguely for "silicon steel." Update your documentation to explicitly state the required core loss limits, the specific grain orientation (GOES or NOES), and acceptable surface insulation classes. By implementing standard international designations and actively managing manufacturing risks like cutting stress, you protect your design intent from prototype to final production.

FAQ

Q: Can I use mild carbon steel instead of electrical steel for low-budget prototypes?

A: While possible for crude, low-efficiency models, carbon steel suffers from massive core losses and lacks long-term magnetic stability. It generates excess heat and cannot channel flux efficiently. Using mild steel will yield highly skewed test results, meaning it cannot provide accurate performance data for commercial motor or transformer designs.

Q: Why is it hard to buy electrical steel in small quantities?

A: Mills produce these high-performance alloys in massive master coils weighing several tons to maximize factory efficiency. They do not sell direct to small buyers. Finding small quantities requires sourcing through specialized service centers or secondary processors who are willing to slit or shear master coils into smaller R&D sample sizes.

Q: What do the coating classifications (C-3, C-4, C-5) on electrical steel mean?

A: They define the chemical makeup, thickness, and thermal resistance of the thin insulation layer applied to the steel surface. Choosing the wrong coating classification can lead to catastrophic short circuits between stacked laminations or result in toxic off-gassing and coating failure during post-process stress-relief annealing.
