The efficiency of a modern power system starts at its heart: the magnetic core. For engineers and procurement officers, selecting the right wound core is a critical decision that dictates the lifespan, heat dissipation, and energy consumption of a transformer. While traditional laminated cores have served the industry for decades, the shift toward a High efficiency wound core has revolutionized how we manage energy in High voltage and Custom industrial applications.
This guide provides an "Expert Insight" into how specific core materials—ranging from Grain-Oriented Silicon Steel (CRGO) to Amorphous alloys—directly influence transformer performance. We will explore the physics of magnetic flux, the reduction of eddy currents, and why a Toroidal or Rectangular wound core design might be the superior choice for your next project. By the end of this article, you will understand how material science translates into measurable energy savings and operational stability.
To understand performance, we must first look at how a wound core handles magnetic flux. Unlike stacked cores, which have tiny air gaps at every corner joint, a wound core is made from a continuous strip of magnetic steel. This structural difference fundamentally changes how the transformer operates.
In a standard stacked core, the magnetic flux must jump across joints. This creates resistance (reluctance) and generates heat. A High efficiency wound core eliminates these gaps. Because the material follows the natural path of the flux, the transformer requires less "magnetizing current" to start up. This means the unit runs cooler and quieter, solving the common problem of "transformer hum" that plagues urban power grids.
When we use a Toroidal wound core shape, the magnetic field is contained perfectly within the ring. There is almost zero "stray flux" escaping into the surrounding environment. It makes the transformer much more compact. For Custom industrial equipment where space is at a premium, this allows for a smaller overall footprint without sacrificing power output.
Most High voltage transformers rely on Cold-Rolled Grain-Oriented (CRGO) steel. This material is specially processed to align its crystal structure in the direction of the rolling. When we build a wound core, we ensure the magnetic flux travels exactly along this "easy" direction.
High permeability is the goal. CRGO steel in a wound core configuration allows for a higher "saturation induction." This means the core can handle more magnetic power before it "maxes out." For High voltage applications, this allows the transformer to handle sudden surges in load without failing. It provides a level of ruggedness that is essential for industrial power stability.
While CRGO is more expensive than non-oriented steel, its Low loss properties make it a smart long-term investment. Over a 20-year lifespan, the energy saved by a High efficiency wound core made of CRGO easily offsets the initial purchase price. It is the gold standard for balancing initial capital expenditure with operational efficiency.
If your primary goal is the absolute minimum energy waste, Amorphous metal is the "Expert Insight" you need. This material lacks a structured crystalline form—it is essentially "metallic glass." This unique atomic structure makes it incredibly easy for magnetic fields to flip back and forth.
The biggest drain on a utility's budget is "no-load loss"—the energy a transformer wastes just by being plugged in. An Amorphous wound core can reduce these losses by up to 70% to 80% compared to traditional silicon steel. This makes it a Premium choice for green energy projects and high-efficiency power grids.
Amorphous ribbon is extremely thin (about 0.025mm) and brittle. Designing a wound core with this material requires specialized winding machines that tension the ribbon perfectly without snapping it. Despite these manufacturing hurdles, the result is a Low loss transformer that meets the most stringent environmental regulations. It is particularly effective in Rectangular wound core shapes used in pole-mounted distribution transformers.
The physical geometry of a wound core—whether it is Toroidal, Rectangular, or an "Unicore" design—impacts how the transformer sheds heat and how much noise it creates.
A Toroidal wound core is a continuous circle. This shape has the lowest magnetic leakage of any design. It is also the quietest. Because there are no corners, there is no place for the magnetic forces to cause the steel to vibrate significantly. We often use these in Custom industrial medical devices or audio equipment where electrical "noise" would interfere with sensitive signals.

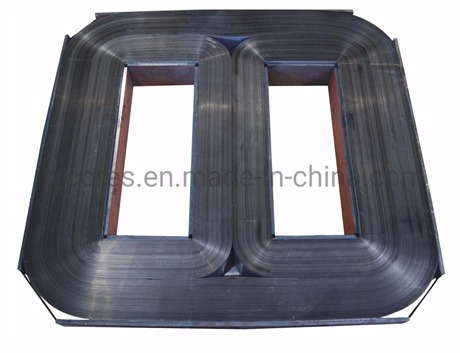

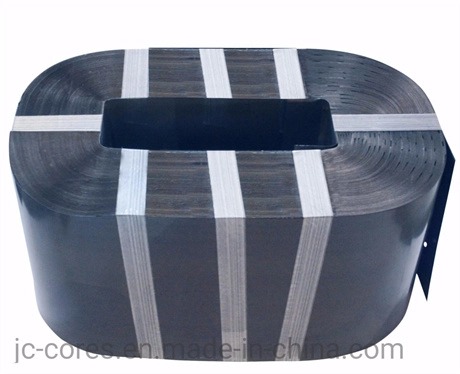

For larger power distribution, a Rectangular wound core is more practical. It allows for easier installation of the copper or aluminum windings. High-efficiency Rectangular designs use "step-lap" joints or continuous winding to maintain a Low loss profile while allowing for the massive scale required in High voltage substations.
Eddy currents are small loops of electrical current that form inside the core material. They act like tiny heaters, wasting energy and damaging the transformer over time.
Every layer of a wound core must be perfectly insulated from the next. We use specialized inorganic coatings (like C-5 insulation) that are only microns thick. This prevents eddy currents from jumping between layers. In a High efficiency wound core, this insulation must be able to withstand the high temperatures of the "annealing" process without breaking down.
In Custom industrial environments, transformers often face "harmonics"—dirty power that causes extra heat. A High-quality wound core with superior insulation handles these thermal stresses better. It prevents "hot spots" from forming, which are the leading cause of internal core melting and catastrophic failure.
In High voltage scenarios, the insulation must also act as a physical barrier against mechanical stress. As the magnetic field pulses 50 or 60 times a second, the core layers actually try to vibrate against each other. High-density winding and superior insulation ensure the wound core remains a solid, Durable block for its entire service life.
When you bend or "wind" steel into a wound core shape, you introduce mechanical stress. This stress ruins the magnetic properties of the steel. To fix this, we use a process called "Stress-Relief Annealing."
The completed wound core is placed in a nitrogen-protected furnace and heated to roughly 800°C. This allows the atoms in the steel to "relax" into their optimal positions. Without this step, even the best CRGO steel would perform poorly. A High efficiency core must be annealed with precision—if the temperature is off by even a few degrees, the Low loss properties are lost.
During annealing, we must remove all oxygen from the furnace. If the steel oxidizes, it creates a layer of "rust" between the windings, which increases resistance and noise. Experts look for a wound core with a clean, blue-grey finish, which indicates a perfect annealing cycle. This attention to detail ensures the transformer achieves its rated efficiency the moment it is energized.
To make an informed procurement decision, you need to see how a wound core stacks up against the old-fashioned alternatives.
| Performance Metric | Stacked Laminated Core | High Efficiency Wound Core |
| No-Load Loss | Higher (due to corner joints) | Low loss (continuous path) |
| Magnetizing Current | High | Low |
| Noise Level (Hum) | Moderate to High | Low (Toroidal is quietest) |
| Weight | Heavier | Lighter (more compact) |
| Customization | Standard shapes only | Custom industrial shapes |
| Voltage Capacity | Standard | High voltage optimized |
As the table shows, the wound core excels in every category related to energy conservation and physical size. This is why it has become the standard for modern, eco-friendly power infrastructure.
Not every transformer fits a "standard" mold. Many High voltage or specialized manufacturing plants require Custom industrial wound core designs that fit into unique enclosures or handle non-standard frequencies.
When we design a Custom industrial core, we look at the specific "load profile." Does the factory have a lot of motors that start and stop? Does it use robotic welders that create electrical spikes? We can adjust the thickness of the steel or the tension of the wound core to dampen these specific stresses.
A professional manufacturer can produce everything from a tiny Toroidal core for a circuit board to a massive Rectangular wound core for a city's power grid. The key is consistency. Using High-quality automated winding machines ensures that the first core is identical to the thousandth, providing predictable performance across your entire fleet of transformers.
The impact of wound core materials on transformer performance cannot be overstated. From the high permeability of CRGO steel to the extreme Low loss nature of Amorphous alloys, the materials you choose define your energy footprint. By moving away from stacked joints and embracing the continuous, High efficiency design of the wound core, you ensure a cooler, quieter, and more Durable power system. Whether your project is High voltage or a highly specific Custom industrial application, the "Expert Insight" points to the wound core as the future of magnetic engineering.
Q: Can a wound core be repaired if it is damaged?
Generally, no. Because the wound core is a continuous, annealed unit, you cannot simply "replace a layer" like you can with a stacked core. However, their Durable design means they rarely fail unless the transformer is severely overloaded or hit by lightning.
Q: Why is a Toroidal core more expensive than a Rectangular one?
The Toroidal shape requires more complex winding machinery to wrap the copper wire through the center of the ring. However, the energy savings and noise reduction often make it the more cost-effective choice for High efficiency electronics.
Q: Is Amorphous metal better than Silicon Steel?
It depends on the application. Amorphous is better for "No-Load" efficiency (standing idle). Silicon steel is often better for "Full-Load" efficiency in very large, High voltage power transformers because it has a higher saturation point.
