A transformer may look simple from outside. Yet much of its efficiency starts inside the core. A distribution transformer core guides magnetic flux, controls loss, and affects noise, heat, and service life. In this article, you will learn its purpose, main types, construction methods, and key buying checks.
● A distribution transformer core gives magnetic flux a controlled path, so voltage can transfer efficiently between windings.
● The core strongly affects no-load loss, no-load current, heat, noise, vibration, and long-term transformer stability.
● Wound cores use continuous electrical steel strips. They usually support low loss, compact structure, and smooth magnetic flow.
● Stacked cores use layered laminations. They offer flexible sizing, easier customization, and practical capacity options.
● CRGO silicon steel is widely used because its grain direction helps magnetic flux move efficiently.
● Construction quality matters as much as material. Cutting accuracy, winding tension, stacking alignment, annealing, and insulation all affect final performance.
A distribution transformer core is the magnetic center of the transformer. Its job is to carry magnetic flux from one winding to another. Without this magnetic path, the transformer would waste more energy and perform poorly.
The core is usually made from thin electrical steel sheets or strips. These thin layers help reduce eddy current loss. The better the material and structure, the easier magnetic flux can move through it.
For distribution transformers, this is important because they often stay energized all day. Even when the load is low, the core still uses energy. This is why no-load loss becomes a serious operating cost over time.
The core also affects temperature. Higher core loss creates more heat. More heat can shorten insulation life and increase maintenance risk. A well-built core helps the transformer stay cooler and more stable.
Noise is another concern. Transformer hum often comes from magnetostriction and mechanical vibration. If the core has loose laminations, poor joints, or uneven stress, noise can rise. A precise core structure helps reduce this issue.
Tip：Always evaluate core loss and no-load current together, because both affect real operating cost.
The most common options are wound cores and stacked cores. Both can work well, but they serve different design priorities. The best choice depends on capacity, phase type, loss target, space limit, and production requirements.

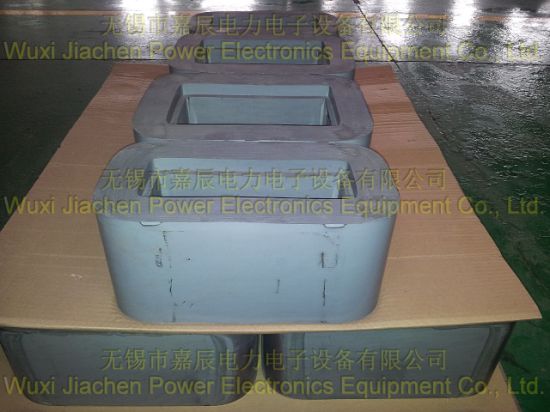

A wound core is made by winding electrical steel strip into a closed magnetic path. The strip is kept flat and tight during winding. This structure helps reduce gaps in the magnetic circuit.
Because magnetic flux can move through a more continuous path, wound cores often support lower loss and lower noise. They are also useful when compact transformer design matters.
Wound cores are often selected for distribution transformers where energy efficiency and stable performance are important. They can be used in both single-phase and three-phase designs.
A single-phase pole-mounted transformer usually needs a compact and reliable core. It may serve residential or rural distribution networks. Space, weight, and long service life often matter in this setting.
A wound core can be a good fit here because it supports a tight structure and efficient magnetic flow. It also helps control no-load loss during long daily operation.
A three-phase wound core is used for three-phase distribution transformer designs. It supports balanced magnetic performance across three phases. This type is common in commercial, industrial, and utility distribution systems.
The design must control symmetry, winding position, and magnetic path balance. Small construction errors can affect no-load current, loss, and noise.

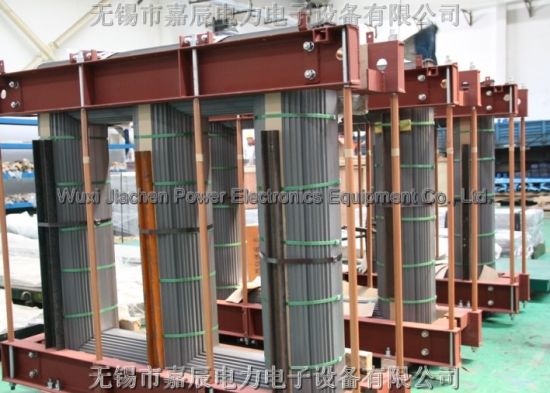

A stacked rectangular core is made from layers of cut electrical steel. The sheets are stacked into a designed core shape. This type is practical when transformer size, window dimensions, or custom drawings vary.
Stacked cores offer design flexibility. They are easier to adjust for different capacity levels and transformer structures. They are also useful when a project needs specific dimensions or assembly conditions.
Step-lap construction uses staggered joints instead of a simple straight joint. This can improve flux transition across the joint area. It can also help reduce local magnetic resistance.
A good step-lap structure may improve loss and noise performance. However, it needs accurate cutting and careful assembly. Poor alignment can reduce the benefit.
Factor | Wound Core | Stacked Core |
Magnetic path | More continuous | Jointed laminated path |
Loss control | Often strong | Depends on material and joint design |
Noise control | Often lower when tightly built | Good if stacking and joints are precise |
Custom sizing | Possible, but process dependent | Usually more flexible |
Compact design | Strong advantage | Depends on structure |
Best fit | Low-loss and compact transformers | Custom capacity and dimensional needs |
Note：A lower initial core price does not always mean lower transformer cost, because energy loss continues for years.
A high-quality core depends on every process step. Material grade is important, but construction quality decides whether the material can perform as expected.
The process starts with electrical steel. For many distribution transformer cores, CRGO silicon steel is used. The steel is slit or cut into the required width and shape.
Cutting quality matters. Burrs, rough edges, and dimensional errors can increase local stress and damage insulation. They can also make assembly harder.
For wound cores, the strip must stay flat. Waviness, overlap, and uneven tension may create internal stress. These problems can increase loss after production.
In a wound core, the steel strip is wound into the designed shape. Tension must stay steady. If the strip is too loose, the core may vibrate. If it is too tight, stress may rise inside the steel.
In a stacked core, sheets are placed layer by layer. The joint position, step-lap pattern, and stacking pressure must stay consistent. Small errors can create air gaps and uneven magnetic paths.
Mechanical processing creates stress in electrical steel. Stress can reduce magnetic performance. Annealing helps remove this stress and restore better magnetic properties.
The heating, holding, cooling, and atmosphere must be controlled. If annealing is poor, the final core may show higher loss or unstable excitation performance.
Each steel layer needs proper insulation. This insulation helps limit eddy current flow between layers. Poor insulation can create extra heat and reduce efficiency.
Curing and final assembly also matter. The core should keep stable dimensions. It should not loosen easily during transport, installation, or operation.
A finished core should pass dimensional inspection. It should also be checked for appearance, insulation, and magnetic performance.
Excitation characteristic testing is useful because it shows whether the core meets the expected no-load current and loss level. This test helps confirm real performance, not only visual quality.
Tip：Ask for both dimensional data and excitation test results before confirming batch production.
The core material must support efficient magnetization. It must also reduce loss under repeated magnetic cycles. This is why electrical steel selection is a major design decision.
CRGO means cold-rolled grain-oriented silicon steel. Its grain direction helps magnetic flux move more easily in one direction. This makes it suitable for transformer cores.
CRGO steel is valued because it can support low core loss and good magnetic permeability. It is often used in distribution transformer cores, power transformer cores, and reactor cores.
Material thickness affects loss. Thinner electrical steel often helps reduce eddy current loss. However, thinner material can be harder to process and may increase cost.
The right grade depends on transformer design. A small single-phase transformer may not need the same material as a larger three-phase unit. Buyers should match the grade to the loss target, capacity, and operating condition.
A good steel grade cannot fix poor production. If cutting, winding, stacking, or annealing is weak, the core may fail to reach its expected performance.
This is why buyers should review supplier process control, not only material names. Stable processing is often the difference between a good design and a reliable product.
A distribution transformer core should be judged by measurable performance. Shape and material are only part of the decision.
Core loss is the energy lost in the core when the transformer is energized. It includes hysteresis loss and eddy current loss. Lower core loss means less wasted energy.
For distribution transformers, this matters because the unit often runs continuously. Even small loss differences can add up during years of service.
No-load current shows how much current the transformer needs to magnetize the core. A high value may suggest poor magnetic performance, poor joints, or process problems.
Buyers should check whether no-load current meets the design limit. They should also compare it with core loss data.
Core dimensions must match the transformer drawing. Window size, stacking thickness, core height, and joint accuracy all affect coil assembly.
Poor dimensional control can slow production. It may also create winding fit problems or increase mechanical stress.
Interlayer insulation helps prevent circulating currents inside the core. If insulation is damaged, eddy current loss and heating may rise.
This is especially important for long-life distribution transformers. Heat can weaken nearby insulation systems and reduce reliability.
A core must remain stable after transport and installation. Loose parts can cause vibration, noise, and performance drift.
Mechanical stability is also important during fault conditions. A stronger core assembly helps the transformer resist stress during short-circuit events.
Different distribution networks need different core priorities. The same core type may not suit every transformer design.
Residential distribution transformers often serve steady daily loads. Low no-load loss is important because the transformer remains energized even when demand is light.
A compact wound core can be useful in this case. It helps reduce loss and supports stable long-term operation.
Pole-mounted transformers must balance size, weight, loss, and reliability. Installation space can be limited. The transformer may also face outdoor conditions for many years.
A single-phase wound core is often considered when compact structure and low loss are important. The final choice should match local design rules and transformer capacity.
Commercial and industrial sites may need higher capacity and strong reliability. Three-phase cores are common in these systems.
For this use, buyers should focus on balanced magnetic performance, dimensional accuracy, and heat control. Noise may also matter in buildings or urban areas.
Some projects need special window size, special capacity, or special assembly conditions. A stacked rectangular core may offer more flexibility.
In custom projects, drawings should be clear. Tolerances should be confirmed early. Material grade, joint type, and test requirements should also be fixed before production.
Note：Custom core design should start from the transformer drawing, not from a general catalog shape.
Before ordering, buyers should define the technical target. A vague request can lead to the wrong core structure, wrong material, or wrong loss level.
First, confirm transformer capacity and phase type. A single-phase pole-mounted transformer and a three-phase distribution transformer need different core designs.
Second, confirm the loss level. If the transformer must meet an energy-saving target, the core must be designed for that target from the start.
Third, confirm the noise requirement. If the transformer will operate near homes, offices, or public areas, noise control should be part of the design discussion.
Fourth, check drawing tolerance. Core suppliers need clear dimensions, window size, stacking thickness, and assembly requirements.
Finally, ask about test items. Useful checks include dimensional inspection, insulation quality review, excitation testing, and appearance inspection. These checks help reduce risk before the core enters transformer assembly.
Topic | What to Check | Why It Matters |
Core type | Wound or stacked | Affects loss, size, flexibility, and cost |
Material | CRGO grade and thickness | Affects magnetic efficiency and core loss |
Construction | Winding, stacking, step-lap, annealing | Affects performance and stability |
Testing | Loss, no-load current, dimensions, insulation | Confirms real product quality |
Application | Residential, pole-mounted, industrial, custom | Helps match the core to the transformer design |
A distribution transformer core shapes the transformer’s efficiency, noise, heat, and service life. Wound cores support compact, low-loss designs, while stacked cores offer flexible customization. JIACHEN POWER provides wound and laminated core solutions, CRGO materials, and controlled processing to help transformer manufacturers build stable, efficient, and reliable products.
A: A distribution transformer core guides flux between windings.
A: It affects energy cost during daily operation.
A: A tightly built wound core often runs quieter.
A: It uses loss, current, dimension, and insulation checks.
A: It may reduce cost for custom sizes.
A: Choose it for compact, low-loss transformer designs.
