Do Transformers Have an Iron Core?

Do transformers need iron to work well? In most power systems, the answer is yes. A transformer iron core guides magnetic flux and helps transfer energy. In this article, we will explain what the core does, when iron-based cores are used, and how core design affects performance.

Key Takeaways

● Most power and distribution transformers use an iron-based magnetic core because it gives magnetic flux a controlled path.

● A transformer iron core is usually not pure iron. It is often made from laminated electrical steel or silicon steel to reduce losses.

● The core affects efficiency, heat, noise, size, voltage stability, and long-term reliability.

● Stacked cores, wound cores, ring cores, and instrument cores serve different transformer and reactor needs.

● Air-core transformers exist, but they are mainly used where frequency, size, or magnetic saturation concerns are different.

● For industrial buyers, the right core should match voltage level, power rating, frequency, loss target, and drawing requirements.

● Core material and processing quality matter as much as transformer winding design.



Do Transformers Have an Iron Core?

Yes, most power transformers have an iron-based core. This includes many distribution transformers, power transformers, electronic transformers, reactors, and converters. The core sits inside the transformer and links the primary and secondary windings through magnetic flux.

However, the phrase “iron core” can be misleading. In modern transformer design, it rarely means a solid piece of pure iron. A transformer iron core is usually made from thin sheets or strips of electrical steel. These layers help reduce energy loss and heat during operation.

The main reason is simple. Air is a poor magnetic path. Iron-based magnetic material has much higher permeability, so it can carry magnetic flux more easily. This allows the transformer to transfer energy more efficiently and remain compact.

Some transformers do not use an iron core. Air-core transformers are used in some high-frequency circuits and special electrical systems. Ferrite cores may also be used in high-frequency electronics. Still, for low-frequency power distribution, a transformer iron core remains the common choice.

Note：When people say “iron core,” they usually mean an engineered magnetic core made from electrical steel, not raw iron.



Why a Transformer Iron Core Matters

The core is not just a support structure. It is the magnetic path of the transformer. When current flows through the primary winding, it creates magnetic flux. The core guides this flux toward the secondary winding, where voltage is induced.

Without a strong magnetic path, much of the flux would leak into the air. This would reduce energy transfer and increase waste. A good transformer iron core keeps the flux concentrated, which improves efficiency and voltage performance.

The core also helps reduce transformer size. Since electrical steel conducts magnetic flux better than air, the transformer can deliver useful power in a smaller structure. This matters in power equipment, industrial cabinets, energy systems, and compact electrical designs.

Core quality also affects heat and sound. Poor core material or poor assembly can increase core loss, vibration, and operating noise. A carefully processed core helps the transformer run cooler and more quietly.



What Is a Transformer Iron Core Made From?

A transformer iron core is often made from silicon steel, also called electrical steel. This material is used because it supports strong magnetic performance and lower core loss. It is designed for electromagnetic equipment, not general structural use.

Cold-rolled grain-oriented steel is common in many transformer cores. Its grain direction helps magnetic flux move more efficiently along a preferred path. This makes it useful for power and distribution transformers where flux direction is controlled.

Cold-rolled non-grain-oriented steel may be used where magnetic flux moves in more than one direction. It is often selected for broader electromagnetic applications. The right material depends on the transformer design and working conditions.

The core is usually laminated. This means it is made from many thin layers instead of one solid mass. Lamination helps limit eddy currents, which are circulating currents that create heat and waste energy.

Tip：When comparing core options, ask for material grade, thickness, core loss target, and drawing tolerance before focusing only on price.



Common Types of Transformer Iron Core Construction

Transformer cores can be built in several ways. The right structure depends on power rating, transformer type, space, efficiency needs, and production requirements. The most common forms include stacked cores and wound cores.

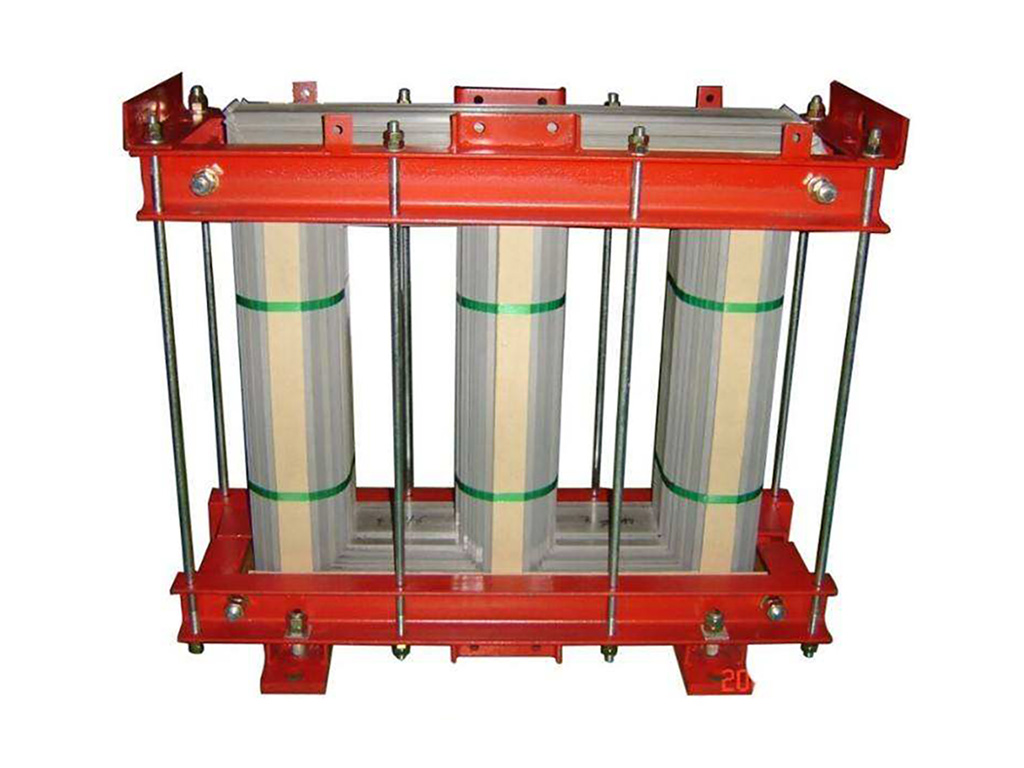

A stacked core is made by cutting electrical steel sheets and stacking them according to the transformer drawing. This type is widely used in distribution and power transformer applications. It allows flexible design and can meet different size requirements.

A wound core is made by slitting steel strip, winding it into shape, molding it, and applying heat treatment. This design can help create a smooth magnetic path. It is often used where lower loss and stable magnetic performance are important.

Other designs include ring cores, uni-core cores, and instrument cores. These are used when the transformer or reactor has a specific shape, current range, or installation requirement. Custom core design becomes valuable when standard sizes cannot meet the project.



Iron Core vs Air Core Transformers

An iron-core transformer and an air-core transformer work on the same basic principle. Both use electromagnetic induction. The difference is the magnetic path between the windings.

A transformer iron core provides a strong path for magnetic flux. This improves coupling between the primary and secondary windings. As a result, it is more suitable for many power systems, especially at lower frequencies.

An air-core transformer does not use iron-based magnetic material. It avoids core loss and saturation, but it has weaker magnetic coupling. To reach the same effect, it may need more turns, larger space, or a different operating frequency.

This is why air-core designs are not the normal choice for common power distribution. They are useful in special circuits, radio-frequency systems, and applications where iron losses or magnetic saturation are a concern.

Note：Iron-core transformers are usually chosen for power efficiency, while air-core transformers are chosen for special frequency or saturation needs.



How Core Quality Affects Transformer Performance

Core quality has a direct effect on transformer efficiency. Poor material can increase hysteresis loss. Poor lamination can increase eddy current loss. Both losses create heat and reduce useful energy output.

Noise is another important factor. Transformer hum often comes from magnetic vibration inside the core. Better material selection, accurate cutting, proper stacking, and stable joints can help reduce vibration.

Core accuracy also affects assembly. If sheets are cut poorly or stacked unevenly, magnetic gaps may increase. These gaps disturb flux flow and can reduce performance. This is why drawing tolerance and process control matter.

In industrial projects, a core is not chosen by shape alone. Buyers should evaluate material source, lamination thickness, loss level, short-circuit resistance, noise expectation, and service support. A good transformer iron core protects the whole transformer design.



How to Choose the Right Transformer Iron Core

The best core starts from the transformer’s working conditions. Power rating, voltage level, frequency, insulation needs, and load profile all matter. A core for a distribution transformer may not suit a reactor or instrument transformer.

Material selection should follow the loss target. If the project needs high efficiency, low-loss electrical steel may be worth the higher cost. If the project needs a custom size, drawing-based processing becomes more important.

Core type should match the magnetic path. Stacked cores offer flexible design. Wound cores may support smooth flux flow. Ring and instrument cores fit more specialized electrical uses.

It also helps to work with a supplier that can support customization. Projects often need specific widths, thicknesses, dimensions, packing methods, and technical drawings. This reduces mismatch risk during transformer assembly.

Tip：For custom orders, provide drawings, dimensions, capacity needs, and loss requirements early to avoid redesign delays.



Conclusion

JIACHEN POWER provides transformer and reactor core solutions for demanding electrical systems. Its products include stacked, wound, ring, uni-core, and instrument core options. These cores help improve magnetic performance, reduce core loss, and support stable operation. For teams choosing a transformer iron core, JIACHEN POWER offers material selection, processing support, and customized service.



FAQS

Q: Do all transformers have a transformer iron core?

A: No. Most power transformers use a transformer iron core, but air-core types also exist.

Q: Why do transformers use iron cores?

A: They guide magnetic flux and improve energy transfer.

Q: Is a transformer iron core pure iron?

A: No. A transformer iron core is usually laminated electrical steel.

Q: Does core quality affect price?

A: Yes. Better material and tighter processing often cost more.

Q: Which is better, iron core or air core?

A: Iron cores suit power use. Air cores suit special frequencies.
