What is the Core of a Distribution Transformer?

A transformer may look simple from outside. Yet its real performance depends on one hidden part. That part is the distribution transformer core.

It guides magnetic flux, supports voltage conversion, and affects daily energy loss. In this article, we will explain what it is, how it works, and how to judge core quality before buying.



Key Takeaways

● A distribution transformer core is the magnetic path inside the transformer. It guides flux between windings and helps transfer electrical energy efficiently.

● The core affects no-load loss, noise, heat, voltage stability, and long-term reliability.

● Common core structures include wound cores and stacked laminated cores. Each one fits different transformer designs.

● Electrical steel is widely used because it supports efficient magnetic flow and controlled core loss.

● Core quality depends on material grade, lamination or winding accuracy, insulation, annealing, and final inspection.

● Buyers should not judge a core by shape alone. They should check drawings, tolerance, core loss targets, phase type, and transformer capacity.

● A good distribution transformer core helps reduce wasted energy, improve quiet operation, and support stable service life.

What Is the Core of a Distribution Transformer?

The core of a distribution transformer is its main magnetic structure. It is usually made from thin layers or wound strips of electrical steel. Its job is to give magnetic flux a low-resistance path.

When alternating current enters the primary winding, it creates changing magnetic flux. The core carries this flux through a controlled path. Then the flux links to the secondary winding and induces voltage.

This process allows the transformer to step voltage up or down. In distribution transformers, the most common purpose is stepping medium voltage down for local use. Homes, factories, farms, and commercial sites all depend on this process.

A distribution transformer core does not work alone. It must match the windings, insulation system, clamping structure, tank design, and cooling method. Still, the core has a major role because it controls the magnetic behavior of the transformer.

If the core is poorly designed, the transformer may waste more energy. It may also create more heat and noise. If the core is accurate and stable, the transformer can run more efficiently over many years.

Many people think the core is only a metal frame. That is not correct. It is a precision magnetic component. Its material, shape, thickness, cutting quality, and assembly process all matter.

Note：A transformer core should be judged by magnetic performance, not only by size or weight.



Why the Distribution Transformer Core Matters

Distribution transformers often stay energized all day. Even when the load is low, the core still produces no-load loss. This makes core quality important for operating cost.

Core loss is not always easy to see. It happens inside the magnetic material. Over months and years, however, it becomes real energy waste. A lower-loss core can help reduce long-term power consumption.

Noise is another concern. Transformer hum often comes from magnetic vibration inside the core. Good material selection and accurate assembly can help reduce this sound.

Heat also matters. When core loss rises, more energy becomes heat. Extra heat can stress insulation and shorten service life. This is why the core must be selected carefully.

For outdoor pole-mounted units, compact structure and reliability matter. For ground-mounted or industrial units, capacity, noise, and customization may become more important. The right core depends on the transformer design.



Main Types of Distribution Transformer Core Structures

Distribution transformer cores are commonly made as wound cores or stacked cores. Both designs can perform well when they are manufactured correctly.

A wound core is made by winding electrical steel strip into a closed magnetic path. This structure can reduce joint gaps and support smooth magnetic flow. It is often used when compact design, low loss, or quiet operation is important.

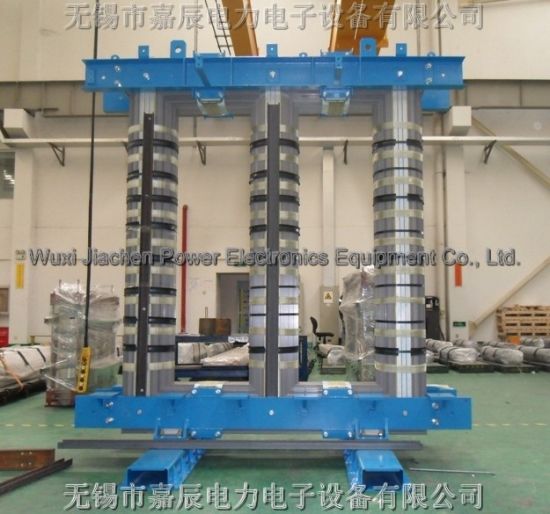

A stacked core is made from cut laminations. These laminations are placed in layers to form the core structure. Stacked cores give manufacturers more design flexibility. They are useful when the transformer needs specific dimensions or capacity ranges.

Rectangular stacked cores are common in many distribution transformer designs. They can be customized according to drawings. This makes them useful when the window size, stack height, and outer dimensions must meet a specific transformer structure.

Some stacked cores use step-lap construction. This means lamination joints are arranged in a stepped pattern. The goal is to improve flux distribution and reduce local magnetic gaps. It may also help lower vibration and operating noise.

Here is a simple comparison:

Tip：Choose the core structure after confirming transformer capacity, phase type, and drawing requirements.



What Materials Are Used in a Distribution Transformer Core?

Most distribution transformer cores use electrical steel. This material is selected because it can carry magnetic flux efficiently. It also helps control core loss when processed correctly.

Grain-oriented silicon steel is widely used in transformer cores. Its magnetic properties work best along the rolling direction. This makes it suitable for designs where flux follows a controlled path.

Material thickness also matters. Thinner steel sheets can help reduce eddy current loss. However, the final choice depends on the required core loss, cost target, and manufacturing process.

A good supplier should not choose material by habit alone. The selected steel grade must match the customer’s drawings and technical parameters. These may include dimensions, capacity, voltage class, loss target, and operating frequency.

Amorphous alloy can also be used in some energy-saving transformer designs. It can support very low no-load loss. However, it may involve different processing needs and cost considerations. It should be selected based on project requirements.

In practice, material selection is a balance. The lowest-loss material is not always the best choice for every project. The right choice depends on transformer design, operating environment, and budget.



How Core Design Affects Transformer Performance

A distribution transformer core affects several performance areas. The first one is energy efficiency. Lower core loss means less wasted energy when the transformer is energized.

The second area is noise. A poorly assembled core may vibrate more. The result can be a louder transformer. This matters in residential areas, commercial buildings, and urban substations.

The third area is heat. Core loss becomes heat during operation. Excess heat can affect insulation, oil temperature, and service stability. A stable core helps reduce this risk.

The fourth area is short-circuit strength. The core is not the only factor here. Windings, clamping parts, and full transformer structure also matter. Still, accurate core assembly supports better mechanical stability.

Voltage behavior is also linked to core quality. A core with better magnetic performance can support more stable operation. This is especially important for transformers used under continuous service.

Note：Core performance should be reviewed together with the full transformer design.



Key Manufacturing Factors That Define Core Quality

Core quality begins with material. Electrical steel must meet the required magnetic properties. If material quality changes from batch to batch, transformer performance may also change.

Cutting quality is also important. Burrs, rough edges, and poor dimensions can affect assembly and insulation. In stacked cores, each lamination must fit the design. In wound cores, strip quality and winding tension matter.

Dimensional accuracy is critical. The core must match the transformer drawings. Key dimensions include window size, stack thickness, leg width, yoke size, and outer frame size.

Annealing may be needed for some wound cores. This process helps reduce internal stress from manufacturing. Lower stress can help restore magnetic performance.

Insulation between layers also matters. Good insulation helps reduce unwanted current paths. It also supports safer and more stable operation.

Final inspection should include both dimensional checks and performance checks. A core may look correct but still perform poorly. This is why core loss, excitation behavior, and assembly condition should be reviewed.



How to Evaluate a Distribution Transformer Core Before Ordering

The first step is to define the transformer design. Is it single-phase or three-phase? What is the capacity? What are the loss targets? These details affect core selection.

Next, review the core type. A wound core may suit compact and energy-saving designs. A stacked core may suit customized dimensions or larger design flexibility. Neither type is always better.

Then check the material. Ask whether the steel grade, thickness, and magnetic properties fit your loss target. Do not rely only on a general material name.

Tolerance is also important. If the core does not match drawings, assembly problems may appear later. Poor fit can affect winding placement and production efficiency.

Noise requirements should be discussed early. If the transformer will work near people, lower noise may matter more. Core structure and assembly quality should support that target.

Finally, review supplier capability. A reliable supplier should support customization, material matching, stable processing, inspection, and clear technical communication.

A buyer can use this checklist:



Wound Core vs Stacked Core: Which One Is Better?

The better choice depends on the transformer. A wound core is often attractive when compact design and lower loss are priorities. Its continuous magnetic path can help reduce magnetic discontinuity.

It may also support quieter operation when processed well. For single-phase pole-mounted transformers, wound cores can be a strong option. They can help meet energy-saving and compact structure goals.

A stacked core is often better when design flexibility matters. It can be made in many sizes and shapes. It is useful for projects requiring specific dimensions or custom drawings.

Stacked cores can also perform very well. The key is precise lamination cutting, clean stacking, accurate alignment, and good insulation. Step-lap construction can further improve magnetic flow.

So the question should not be, “Which type is always better?” A better question is, “Which type fits this transformer design?” That answer depends on loss, capacity, cost, dimensions, noise, and production needs.



Conclusion

The core is the magnetic center of a distribution transformer. It guides flux, supports voltage conversion, and affects loss, noise, heat, and reliability. A good core must match material, structure, tolerance, and transformer design. JIACHEN POWER provides wound and laminated transformer core solutions with low core loss, stable magnetic performance, drawing-based customization, and reliable service for transformer manufacturers.



FAQS

Q: What is a distribution transformer core?

A: A distribution transformer core is the magnetic path that transfers flux between windings.

Q: Why does the distribution transformer core affect efficiency?

A: The distribution transformer core affects no-load loss, heat, and long-term energy waste.

Q: Is a wound core better than a stacked core?

A: It depends on capacity, noise target, loss target, and drawing requirements.

Q: What material is used for a distribution transformer core?

A: A distribution transformer core often uses grain-oriented electrical steel.

Q: Does core quality affect transformer noise?

A: Yes. Better material, alignment, and assembly can reduce operating hum.

Q: Does a better core cost more?

A: Often yes, but lower losses may reduce lifetime operating cost.
