What Is the Most Common Type of Core Material for a Distribution Transformer?

The core is not just a metal part. It decides how well a transformer saves energy. For most units, the common answer is clear: a distribution transformer core usually uses laminated silicon steel, especially CRGO silicon steel.

In this article, you will learn why it is common, how it compares, and when other materials make sense.



Key Takeaways

● The most common material for a distribution transformer core is laminated silicon steel.

● CRGO silicon steel is widely used because it guides magnetic flux in one main direction.

● Thin laminations help reduce eddy current loss and heat.

● Amorphous alloy can reduce no-load loss, but it is not always the default choice.

● CRNGO steel is useful in some magnetic products, but it is less common for standard transformer cores.

● Core material, core structure, cutting accuracy, and assembly quality all affect efficiency.

● Buyers should not choose by material name alone. They should check loss values, drawings, tolerance, coating, and test data.

The Most Common Core Material Is CRGO Silicon Steel

The most common core material for a distribution transformer is cold-rolled grain-oriented silicon steel. It is often called CRGO silicon steel. This material is widely used because it offers a good balance between efficiency, cost, supply stability, and manufacturing control.

A distribution transformer core needs a material that can carry magnetic flux with low energy loss. CRGO silicon steel does this well because its grain structure is aligned. This helps magnetic flux move more smoothly in the rolling direction of the steel.

For distribution transformers, this matters a lot. These transformers often stay energized for years. Even when load is low, the core still consumes energy. Lower core loss means lower long-term operating cost.

CRGO silicon steel also works well in common core structures. It can be used in stacked laminated cores, wound cores, and other transformer core designs. This makes it flexible for different transformer capacities and layouts.

Tip：Ask suppliers for tested core loss values, not only the material name.



Why Silicon Steel Works Well in a Distribution Transformer Core

Silicon steel is used because it has high magnetic permeability. In simple terms, it allows magnetic flux to pass through the core more easily. This helps the transformer transfer energy between windings with less waste.

The silicon content also increases electrical resistance inside the steel. Higher resistance helps reduce eddy currents. Eddy currents are small circulating currents created inside the core during operation. They produce heat and waste energy.

A distribution transformer core is not made from one solid steel block. It is made from thin sheets, or laminations. Each lamination has an insulating coating. This design helps break up eddy currents and reduce losses.

The material also needs stable mechanical behavior. If the steel is poorly cut, stressed, or assembled, the final transformer may have higher noise and higher loss. That is why core manufacturing quality matters as much as material selection.

Note：Good silicon steel can still perform poorly if cutting and stacking quality are weak.



CRGO vs CRNGO: Which One Is More Common?

CRGO and CRNGO are both electrical steels, but they are not used in the same way.

CRGO means cold-rolled grain-oriented steel. Its magnetic properties are strongest in one direction. This fits transformer cores because the magnetic flux usually follows a defined path.

CRNGO means cold-rolled non-grain-oriented steel. Its magnetic properties are more uniform in different directions. This makes it useful for motors, generators, and other equipment where the magnetic field changes direction.

For a standard distribution transformer core, CRGO is usually the better match. It reduces core loss when the flux follows the designed path. It also supports efficient operation in wound and stacked core designs.

CRNGO may still appear in some special magnetic components. But it is not the typical first choice for common distribution transformer cores.



Silicon Steel vs Amorphous Alloy

Amorphous alloy is another important core material. It has a non-crystalline structure. This structure can reduce no-load loss more than traditional silicon steel in many designs.

For energy-saving distribution transformers, amorphous alloy can be a strong option. It is often considered when the project has strict loss targets or long operating hours at light load.

However, amorphous alloy is not always the most common material. It can be more difficult to process. It may also require different design methods, special handling, and suitable manufacturing equipment.

CRGO silicon steel remains common because it is mature and reliable. It is easier to source, cut, wind, stack, inspect, and customize. For many projects, it gives the best balance between performance and cost.

The better material depends on the goal. If the priority is proven performance and flexible production, CRGO is usually practical. If the priority is very low no-load loss, amorphous alloy may deserve review.

Tip：Compare total lifetime cost, not only the purchase price.



Core Structure Also Affects Material Performance

Core material is only one part of the answer. The structure of the distribution transformer core also affects loss, noise, and stability.

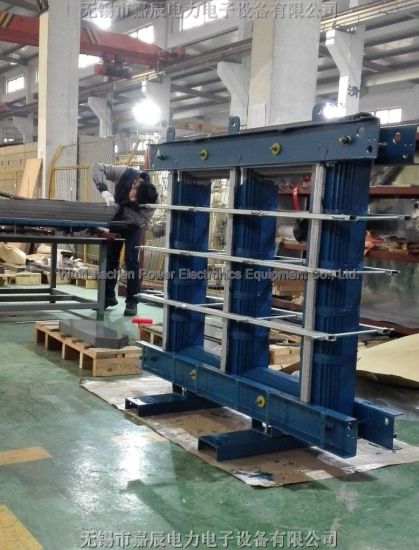

A stacked core is made from many cut laminations. These sheets are stacked into the required shape. This structure is flexible for many transformer designs. It supports different sizes and custom dimensions.

A wound core uses a continuous strip of magnetic material. The strip is wound into a closed magnetic path. This can reduce joint gaps and help magnetic flux move more smoothly.

Step-lap construction is also important in stacked cores. It improves the joint area between laminations. Better joint design can lower noise, reduce local flux disturbance, and support stable performance.

The final result depends on several factors:

● Material grade

● Lamination thickness

● Cutting accuracy

● Burr control

● Insulation coating

● Annealing process

● Core assembly pressure

● Final core loss testing

This is why two cores made from the same material may perform differently.



How Buyers Should Evaluate Core Material

When choosing a distribution transformer core, do not only ask, “What material is used?” A better question is, “Does this material match my transformer design and efficiency target?”

Start with the transformer type. Is it single-phase or three-phase? Is it pole-mounted or pad-mounted? What is the rated capacity? What frequency will it use? These factors affect the core design.

Then check the required loss level. A lower-loss core may cost more at first, but it can save more energy over time. This is especially true for transformers that stay energized all day.

Buyers should also ask for clear technical details. These may include material grade, lamination thickness, core dimensions, window size, tolerance, insulation coating, and test reports.

For custom projects, drawings are important. The supplier needs accurate drawings to control dimensions and fit the core into the transformer structure.

Note：A low-loss material cannot fix a poor core design.



When CRGO Silicon Steel Is the Best Choice

CRGO silicon steel is often the best choice for standard distribution transformer projects. It is suitable when the buyer needs stable performance, predictable cost, and easier customization.

It also fits projects where proven production matters. Many transformer manufacturers already understand how to design around CRGO. They know how it behaves during cutting, winding, stacking, annealing, and assembly.

For pole-mounted transformers, wound CRGO cores can support compact structure and efficient flux flow. For larger transformer units, stacked laminated cores can provide flexible sizing and easier design adjustment.

CRGO silicon steel is not the newest material. But it remains widely used because it solves the main problem well. It reduces loss, supports reliable production, and fits many transformer designs.

That is why it remains the most common answer to this question.



Conclusion

The most common material for a distribution transformer core is laminated CRGO silicon steel. It gives stable magnetic performance, low core loss, and practical manufacturing control. JIACHEN POWER supplies electrical steel, wound cores, stacked cores, and amorphous transformer cores. Its products help transformer makers improve efficiency, control loss, and match custom project needs.



FAQS

Q: What material is most common in a distribution transformer core?

A: CRGO silicon steel is the most common distribution transformer core material.

Q: Why is CRGO used in transformer cores?

A: It carries magnetic flux efficiently and helps reduce core loss.

Q: Is amorphous alloy better than silicon steel?

A: It can lower no-load loss, but it may cost more.

Q: Does core material affect transformer price?

A: Yes. Material grade, loss level, and processing all affect cost.

Q: How do I choose a distribution transformer core material?

A: Match the distribution transformer core to load, loss target, and design.

Q: Can CRNGO be used in a distribution transformer core?

A: It can, but CRGO is more common for transformer flux paths.
