Look inside any modern motor or transformer, and you will find a highly engineered core driving its performance. This core relies on a very specific material to function effectively without immediately overheating. Engineers cannot treat this material like basic structural metal. Slight variations in chemical composition and manufacturing dictate core loss, regulatory compliance, and thermal management. Subpar metal batches waste energy and doom hardware to premature failure before ever hitting field operations. We will break down exactly what goes into electrical steel. You will learn how metallurgical processes shape its capabilities and which critical evaluation criteria guarantee top-tier performance. Procurement teams and designers can use this comprehensive guide to source highly efficient materials confidently for their most demanding applications.
Core Composition: Electrical steel is primarily an iron alloy containing up to 6.5% silicon to increase electrical resistivity and reduce eddy current losses.
Impurity Control: The defining factor of premium electrical steel is the rigorous elimination of impurities like carbon and sulfur during the melting phase.
Structural Alignment: Application dictates choice—Grain-Oriented (GOES) for static transformers, and Non-Grain-Oriented (NGOES) for rotating motors.
Procurement Trade-offs: Higher silicon content improves magnetic efficiency but increases material brittleness, requiring specialized tooling for stamping and manufacturing.
You must understand the raw chemistry to appreciate the final performance. Iron serves as the foundational base metal. Iron carries magnetic flux exceptionally well. It provides massive flux density. However, pure iron conducts electricity too efficiently for alternating current applications. Alternating magnetic fields induce stray voltages inside the core material. These voltages push eddy currents through the metal. The currents circulate aimlessly and generate severe waste heat. Heat degrades insulation and destroys overall system efficiency.
To solve this thermal problem, metallurgists introduce a critical additive. They add silicon. Silicon acts as a powerful electrical resistor inside the iron matrix. It strictly limits the internal flow of eddy currents. By adding anywhere from 0.5% to 4.5% silicon, steelmakers minimize wasted energy dramatically. Some highly specialized core grades even push silicon up to 6.5%. This high silicon content boosts electrical resistivity, keeping the core cool under heavy loads.
Silicon alone does not complete the recipe. Manufacturers add minute trace enhancers. They introduce controlled quantities of manganese and aluminum. These elements assist during the cooling and heating phases. They help form the correct internal grain structure. They also improve the long-term metallurgical stability of the final coil.
Conversely, certain elements act as the absolute enemy of efficiency. Impurities ruin magnetic performance. Factories must aggressively purge carbon, sulfur, and oxygen. Carbon poses the most severe threat. It acts like a time bomb inside the metal. Over months of operation, residual carbon slowly precipitates out of the solid solution. This creates a phenomenon known as magnetic aging. The magnetic properties degrade over time. Core loss creeps higher year after year. Cheap, unverified steel batches often hide high carbon levels. If you purchase them, your hardware will rapidly lose its efficiency rating.

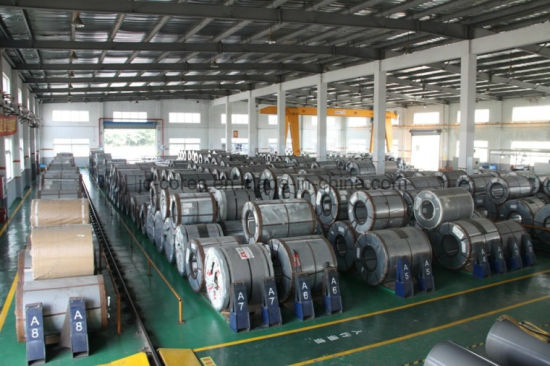

Producing this material requires immense precision. Raw chemistry only dictates the potential limits. The physical manufacturing process unlocks the actual performance you need. Sourcing teams must understand how factories transform rough slabs into delicate, highly magnetic sheets.
Basic furnaces melt the scrap and raw iron. Then, secondary refining takes over. This initial stage defines the ultimate quality of the batch. Factories use vacuum degassing stations to boil off trapped oxygen. They pull carbon down to microscopic parts-per-million levels. They achieve exact chemical tolerances here.
Hot rolling mills thin the massive slabs down into rough strips. Acid pickling cleans the oxidized surface. Cold rolling follows immediately. This step translates the rough alloy into its final required thickness. Precision matters heavily during cold rolling. Accurate thickness dictates your final lamination stacking factor. If sheets vary in thickness, you cannot pack them tightly. Air gaps will form. These gaps ruin your motor's power density.
Cold rolling crushes the internal crystal structure. It induces massive internal mechanical stress. Stressed metal cannot conduct magnetic flux efficiently. Annealing solves this problem completely. It acts as the critical differentiator between raw steel and true electrical grades. Continuous annealing lines heat the steel strips to extreme temperatures. This specialized thermal cycle relieves all internal mechanical stresses. It allows new, optimal magnetic crystals to grow freely.
Finally, the strip receives a chemical bath. Rollers apply organic or inorganic insulation coatings. These microscopic layers prevent electrical short circuits between stacked laminations. Without coatings, a stacked core would act like a solid block of metal. Eddy currents would flow freely across the layers. Coatings block these paths entirely.
Application type dictates your material choice. You cannot use these grades interchangeably. Their internal grain structures behave fundamentally differently under magnetic loads.
Manufacturers force the crystals to align perfectly. They point in a single, parallel rolling direction. This orientation creates an ultimate path of least resistance. Performance skyrockets along this specific axis. The material achieves exceptional magnetic permeability in one direction. Use cases revolve around static applications. Power transformers and distribution lines use GOES exclusively. The magnetic field in a transformer never changes its directional path. It flows in a constant loop. GOES maximizes efficiency for these static grid components.
Here, the metallurgical focus shifts completely. The manufacturing process encourages a random crystal arrangement. The structure exhibits isotropic magnetic properties. You get highly consistent magnetic behavior in all directions. Performance does not spike in one single path. It remains stable everywhere. Use cases center on rotating machinery. EV traction motors, industrial pumps, and generators require NGOES. As the motor rotor spins, the magnetic field direction constantly shifts. NGOES handles this multidirectional flux beautifully.
Feature | GOES (Grain-Oriented) | NGOES (Non-Grain-Oriented) |
|---|---|---|
Crystal Alignment | Single rolling direction | Random, isotropic arrangement |
Magnetic Performance | Exceptional in one specific axis | Consistent across all directions |
Primary Application | Static hardware (Transformers) | Rotating hardware (Motors, Generators) |
Manufacturing Focus | Complex secondary recrystallization | Careful primary annealing processes |
Sourcing correctly requires rigorous evaluation. Procurement teams must scrutinize technical datasheets. You want to source premium electrical steel reliably and repeatedly.
This serves as your primary metric. Engineers evaluate performance in watts-per-kilogram (W/kg). Laboratories test samples at specific frequencies, usually 50Hz or 60Hz. A lower core loss number commands a higher market premium. Lower loss directly dictates the final energy efficiency rating of your assembled machine.
Permeability defines how easily the material accepts a magnetic field. Saturation limits indicate the absolute peak flux density the metal can handle. Once saturated, adding more current yields zero extra magnetic force. The metal simply overheats. You need materials offering high saturation limits to build compact, powerful motors.
Evaluate thickness variation strictly. Check the flatness across the entire coil width. Poor flatness creates severe manufacturing headaches. It leads to a low lamination factor. You end up creating bulky, inefficient final products because you cannot compress the sheets effectively.
Verify the applied insulation layer. Manufacturers usually request standardized coating classes based on their manufacturing environment.
Coating Type | Composition | Key Benefits & Resistance |
|---|---|---|
C3 | Organic enamel | Good punchability, low curing temperatures. Best for simple stators. |
C4 | Inorganic/Organic mix | Improves weldability. Withstands moderate stress-relief annealing. |
C5 | Inorganic layer | Excellent heat resistance. Survives high-temperature die-casting processes safely. |
C6 | Heavy organic polymer | Maximum insulation resistance. Used in massive hydro-generators. |
The coating must resist extreme heat during die-casting. It must survive high pressure during core stacking. It must resist chemical degradation from lubricants. If the coating fails, the core shorts out entirely.
Pushing for maximum efficiency brings inherent manufacturing risks. Engineers must balance magnetic performance against physical workability on the factory floor.
Silicon improves magnetic efficiency massively. But it fundamentally alters the mechanical properties of the iron. Pushing silicon content past 3% or 4% makes the steel exceptionally brittle. Acknowledge this manufacturing reality. Brittle material shatters inside stamping presses. It causes accelerated wear on expensive stamping dies. Punching tools degrade rapidly. You often need to upgrade to tungsten carbide tooling. Carbide handles the abrasive nature of high-silicon grades better.
Why accept these manufacturing difficulties? Tightening global energy standards force the industry forward. The Department of Energy (DOE) continuously updates transformer efficiency rules. Industrial motor manufacturers face strict IE4 and IE5 regulatory mandates. Premium materials cost more upfront. However, they guarantee your final product meets these stringent regulatory benchmarks. Failing to meet efficiency mandates locks your products out of major markets completely.
Laboratory claims mean nothing without physical proof. You must actively audit supplier testing data. The Epstein frame test remains the global standard. This apparatus measures core loss and permeability under strictly controlled conditions.
Best Practices for Verification:
Demand Epstein frame test reports for every batch delivered.
Ensure the physical material on your loading dock matches the laboratory claims exactly.
Conduct spot-checks for edge burrs caused by dull stamping dies.
Reject coils showing visible edge wave or center buckle.
Electrical steel functions as a finely tuned iron-silicon alloy. You cannot treat it like standard sheet metal. Manufacturing precision influences performance just as heavily as raw chemistry. Proper sourcing requires aligning grain structure directly to your specific application. Vacuum degassing, precise cold rolling, and tailored annealing cycles define the final capability of the coil.
Technical buyers must act strategically. Align your specific motor or transformer efficiency targets with exact core loss limits. Do this before issuing any Request for Quotation (RFQ). We highly recommend requesting physical sample batches. Test these samples on your actual stamping presses. Always demand exhaustive Epstein frame test reports from all prospective suppliers. Securing verified material guarantees your hardware performs exactly as designed.
A: Regular steel focuses on structural strength and load-bearing capacity. It often contains higher carbon levels. Electrical steel prioritizes magnetic permeability. It features precise silicon additions and requires a strict absence of carbon. Factories use specialized annealing processes to optimize its magnetic crystal structure rather than its physical hardness.
A: Solid metal cores allow eddy currents to circulate freely, generating massive heat. Lamination solves this completely. Manufacturers slice the material into thin, individually insulated layers. This physical separation effectively cuts off the conductive path for eddy currents. It drastically reduces heat loss and boosts overall machine efficiency.
A: Yes, but you must proceed cautiously. The intense heat from welding alters the localized grain structure. It also destroys the surface insulation coatings. This damage increases core loss significantly at the weld site. Engineers prefer interlocking laminations or highly controlled, specialized laser welding to minimize this thermal degradation.
A: Manufacturers can push silicon to around 6.5%. This level offers zero magnetostriction, effectively eliminating the humming noise in transformers. However, 6.5% silicon makes the metal incredibly brittle. It shatters under normal rolling. Producing it requires highly specialized, expensive manufacturing techniques like chemical vapor deposition (CVD).
