Three-Phase Wound Core Transformer: Low Loss, High Stability & Energy Saving

Core Keywords: Three-phase wound core transformer, wound core transformer, low loss power transformer, energy efficient distribution transformer, compact three-phase transformer

Looking for a high-performance, cost-effective three-phase transformer for power distribution, industrial equipment, and commercial power systems? Our three-phase wound core transformer adopts integral continuous winding core technology, completely upgrading the traditional stacked core structure. With ultra-low no-load loss, minimal electromagnetic interference, compact size and long service life, it has become the preferred energy-saving power equipment for global industrial and power engineering projects.

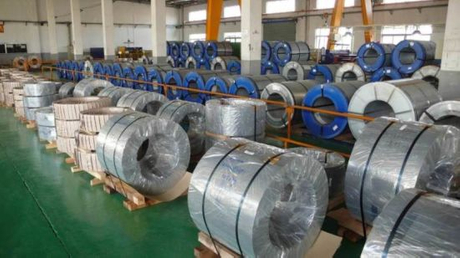

Different from conventional laminated iron core transformers, the three-phase wound core is formed by integrally winding high-permeability grain-oriented silicon steel sheets without cutting and splicing. This seamless closed magnetic circuit structure eliminates air gaps in the magnetic path fundamentally, realizing far better electrical performance than traditional products and solving the pain points of high energy consumption, large noise and unstable operation of ordinary transformers for a long time.

Core Advantages of Three-Phase Wound Core Transformer

1. Ultra-Low Energy Loss & Higher Energy Efficiency

The continuous closed magnetic path design maximizes the utilization rate of silicon steel sheets and optimizes magnetic flux transmission. Compared with traditional stacked core transformers, its no-load loss is reduced by 15%-20%, and no-load current is cut by 50%-75% . It effectively reduces reactive power loss in the power grid, greatly lowers long-term operation and power consumption costs, and perfectly meets the energy-saving and emission-reduction standards of European, American and Southeast Asian power projects. The high-quality laser-thinned silicon steel material further suppresses eddy current loss, ensuring stable high-efficiency operation throughout the equipment life cycle .

2. Compact Structure & Cost Saving

The integrated winding process makes the core structure more precise and compact. The overall volume of the transformer is20%-25% smaller than traditional models, with 10% less copper material consumption . It saves installation space and infrastructure investment, and reduces transportation and on-site installation costs. Meanwhile, the material utilization rate of wound core reaches more than 95% (far higher than 75% of laminated cores), effectively controlling manufacturing costs and bringing higher cost performance for customers .

3. Stable Operation & Strong Anti-Short Circuit Capability

The three-phase magnetic circuit of the wound core is completely symmetrical, with uniform axial electromagnetic force during operation and balanced stress on windings . It significantly improves the transformer’s ability to withstand short-circuit impact and avoids deformation and damage caused by unbalanced force. The integral structure has no loose core pieces, ensuring no magnetic leakage or performance attenuation during long-term continuous operation. It is suitable for harsh industrial environments and stable power supply scenarios with high load fluctuation.

4. Low EMI & Low Noise Operation

The seamless closed magnetic path effectively restrains magnetic flux leakage and electromagnetic interference (EMI) . It will not cause signal interference to surrounding precision equipment, instrumentation and communication systems, making it applicable for medical equipment supporting, precision industrial electronics, and urban commercial power distribution. At the same time, the integrated core eliminates vibration noise caused by lamination gaps, achieving ultra-low noise operation and complying with international environmental protection noise standards.

5. Eco-Friendly & Long Service Life

Optimized production processes and reduced material consumption greatly lower the full-cycle carbon emissions of the equipment, in line with global green power development trends . Adopting high-temperature resistant insulation materials and strict production and testing processes, the wound core transformer features strong corrosion resistance, aging resistance and stable physical properties . The service life is far longer than ordinary transformers, reducing equipment replacement and maintenance costs for enterprises.

Wide Application Scenarios

Our three-phase wound core transformers are widely used in industrial power distribution, commercial building power supply, new energy power generation, municipal grid transformation, factory complete equipment, and precision electrical systems. Whether it is conventional civil power supply or high-standard industrial power supply projects, it can provide stable, efficient and low-consumption power conversion support.

Custom & OEM Support

As a professional wound core transformer manufacturer, we support customized voltage, capacity, size and structural parameters according to customer drawings and project requirements. All products strictly comply with IEC, ISO and international electrical standards, with complete test reports and certification documents. We provide one-stop services including product design, production, testing and after-sales support, and support global bulk export and fast delivery.
