Manufacturing motor and transformer cores involves much more than standard metallurgy. It represents a critical variable dictating efficiency, performance, and overall project returns. Procurement and engineering teams frequently face a sharp disconnect in the industry. You often see design specifications demanding ultra-low core loss and superior magnetic permeability. However, actual mill production capabilities sometimes fall terribly short of these ideals.
This gap between engineering dreams and manufacturing reality leads to underperforming products. It also creates frustrating supply chain headaches. Understanding exactly how mills craft these metals changes everything for your procurement strategy. It enables much better supplier evaluation and mitigates severe supply chain risks. You gain the technical leverage needed during complex vendor negotiations. This knowledge ensures you can secure verifiable, high-performance materials reliably. We will walk you through the distinct metallurgical processes involved. You will learn to navigate the sourcing complexities and secure the best materials for your project.
The control of silicon content (typically 1% to 6.5%) during the crafting process dictates the balance between magnetic efficiency and material brittleness.
Evaluating a supplier requires looking beyond theoretical specs to their specific annealing and cold-rolling capabilities.
Choosing between Grain-Oriented (GOES) and Non-Grain Oriented (NGOES) electrical steel depends entirely on the directional magnetic requirements of the end application.
Procurement success hinges on verifying mechanical tolerances, coating uniformity, and rigorous adherence to international testing standards (e.g., ASTM, IEC).
How exactly does metallurgy influence your bottom line? The process of creating electrical steel dictates the ultimate energy efficiency of your end products. We must connect metallurgical features directly to tangible business outcomes.
When a mill aggressively reduces carbon and precisely alloys silicon, it minimizes hysteresis. It also dramatically cuts eddy current losses. These reductions translate directly into highly efficient motors and transformers. End-users demand equipment that meets stringent global energy regulations. If your material drops too much energy as heat, your product fails these certifications. Precise chemical control during crafting prevents these costly compliance failures.
We must also address the reality of upfront costs versus long-term performance trade-offs. Higher-grade materials demand a larger initial investment. However, these superior grades deliver massive operational energy savings over a product's lifespan. High-efficiency transformers rely on this upfront investment to function properly without overheating. You will easily justify the initial premium through elevated product reliability and market competitiveness. Do not confuse this specialized procurement with standard commodity purchasing.
A common mistake involves assuming standard steel mills can transition easily to specialized production. You should never assume all mills producing standard carbon steel can handle these requirements. Achieving the precise thickness and uniform magnetic properties is incredibly difficult. Ordinary facilities lack the rigorous climate control required. They also lack the specialized continuous annealing lines needed to relieve internal stress. Standard mills simply cannot guarantee the tight tolerances necessary for advanced electrical applications.
The production of premium electrical steel involves highly controlled manufacturing stages. Each step requires absolute precision to guarantee magnetic stability. Let us examine the four core phases of this specialized crafting process.
Alloying and Melting: This stage establishes the foundational chemistry. The process requires extreme purity. Mills face the massive challenge of removing impurities like carbon, sulfur, and oxygen. Residual carbon causes a severe issue called magnetic aging. This aging degrades efficiency over time. Mills utilize advanced vacuum degassing to lower carbon levels to near zero.
Hot and Cold Rolling: After casting slabs, hot rolling performs the initial gauge reduction. It thins the material while it remains highly malleable. Cold rolling follows as the most critical step. It achieves the exact final lamination thickness. More importantly, cold rolling induces the necessary grain structure. The mill must perform this without fracturing the silicon-rich alloy, which is inherently brittle.
Continuous Annealing: Cold rolling introduces intense mechanical stress into the metal. This stress ruins magnetic performance. Continuous annealing fixes this problem. The mill passes the metal through massive, precisely heated furnaces. This heat treatment relieves mechanical stress completely. It also encourages the optimal crystal size to grow, maximizing magnetic permeability.
Surface Insulation Coating: Bare metal sheets would short-circuit if stacked together. The final step involves applying microscopic surface insulation. Mills apply specialized organic or inorganic coatings to the sheet. These coatings improve the lamination factor. They effectively prevent destructive short circuits between stacked sheets in a motor core.
Always ask your supplier about their decarburization process. You want evidence showing they monitor carbon levels continuously during the melting phase. You should also request documentation on their cold rolling reduction ratios. Inconsistent rolling speeds lead to thickness variations, ruining your final core stacking factor.
You cannot buy these materials based on thickness alone. You must match the internal grain structure to your specific magnetic field application. The industry divides these materials into two primary categories: Grain-Oriented (GOES) and Non-Grain Oriented (NGOES).

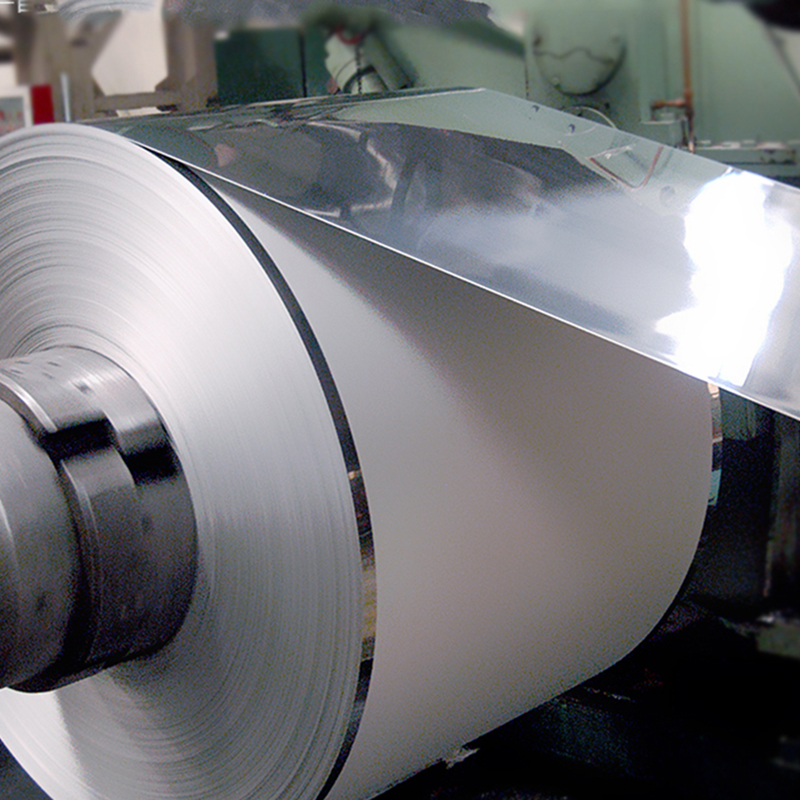

GOES requires an incredibly complex manufacturing route. The mill uses a process called secondary recrystallization. This technique forces the metallic crystals to align perfectly in one single direction. We call this the Goss texture. Because the grains face the same way, the material offers exceptional magnetic properties along that specific rolling direction.
You use GOES primarily for static, highly directional magnetic fields. Power transformers and distribution transformers rely heavily on GOES. In these static machines, the magnetic flux travels in predictable, straight paths. The aligned grains guide the flux with minimal energy loss.
NGOES undergoes a different annealing strategy. The mill processes the metal to ensure uniform magnetic properties in all directions. The crystals remain randomly oriented. Therefore, the material responds equally well to magnetic fields approaching from any angle.
You use NGOES exclusively for rotating machinery. Electric vehicle (EV) traction motors, industrial generators, and fluid pumps require NGOES. In a rotating motor, the magnetic field changes direction constantly. You need a truly isotropic material to handle these dynamic, rotating magnetic forces efficiently.
Engineers can use a simple decision matrix to select the right material. This selection logic prevents catastrophic design failures.
Selection Logic Chart: GOES vs. NGOES | ||
Feature / Requirement | GOES (Grain-Oriented) | NGOES (Non-Grain Oriented) |
|---|---|---|
Magnetic Field Type | Static and unidirectional | Dynamic and multi-directional |
Primary Application | Power & Distribution Transformers | EV Motors, Generators, Pumps |
Core Loss Characteristics | Ultra-low in the rolling direction | Balanced across all directions |
Manufacturing Complexity | Extremely high (secondary recrystallization) | Moderate (standard uniform annealing) |
Sourcing these materials requires rigorous technical scrutiny. You cannot rely on marketing brochures. You must demand hard data. Here are the key dimensions you must evaluate when vetting a new supplier.
Never accept theoretical data sheets as proof of quality. You must demand verifiable testing data for core loss (measured in W/kg) and magnetic polarization. Insist on seeing Epstein frame test data for standard evaluations. For broader validation, request single-sheet tester (SST) results. These standardized tests ensure the material performs exactly as promised under real electrical loads.
Mechanical precision matters just as much as magnetic properties. Evaluate suppliers thoroughly on their dimensional tolerances. They must maintain strict thickness consistency across the entire width of the coil. Pay close attention to a metric called "edge drop." Edge drop refers to the thinning of the steel near the edges of the roll. Severe edge drop directly damages your stacking factor. A poor stacking factor means your motor will lack the necessary steel volume to achieve target power density.
The microscopic insulation layer is mission-critical. You must assess the thermal stability of the applied coatings. Will the coating survive the heat of your manufacturing process? You must also verify punchability. Good coatings act as a lubricant, protecting your stamping dies from rapid wear. Additionally, assess weldability if your core assembly requires laser welding. Finally, verify absolute compliance with environmental standards. Request updated RoHS and REACH certificates to ensure the coatings contain no hazardous chemicals.
A supplier might produce a perfect prototype coil. However, can they produce ten thousand coils with the exact same quality? Confirm the mill's capacity to scale operations. They must transition smoothly from low-volume R&D prototyping runs to high-volume commercial production. Quality degradation during scale-up is a widespread industry problem. You must audit their quality control systems to ensure batch-to-batch consistency.
Core Loss limit: Verify specific W/kg limits at 1.5T or 1.0T (50Hz/60Hz).
Thickness variation: Ensure variation remains within ±0.01mm across the coil width.
Coating type: Specify C-3 (organic), C-4, or C-5 (inorganic) depending on downstream processing.
Stacking factor: Demand a guaranteed stacking factor of at least 95%.
Procuring specialized metallurgical products introduces unique supply chain vulnerabilities. You must proactively manage implementation risks. A structured supplier shortlisting logic prevents production halts and budget overruns.
MOQs represent the most common procurement bottleneck in the steel industry. Primary mills rarely fire up a furnace for a small order. They often demand MOQs exceeding 50 or 100 metric tons. This poses a massive problem for engineering teams needing small amounts for prototyping.
To overcome this, you need strategic workarounds. Consider partnering with specialized steel service centers instead of direct mills for early stages. Service centers buy massive master coils and break them down. They can supply the pilot-run quantities you need without forcing you into a 100-ton commitment.
Relying on single-source overseas mills for highly specialized grades carries enormous risk. Global shipping delays, geopolitical tensions, and raw material shortages disrupt supply chains constantly. Lead times for high-grade silicon alloys can easily stretch from 12 weeks to 30 weeks during shortages. You must diversify your supplier base. Qualify at least one domestic or near-shore supplier as a backup, even if their unit price is slightly higher. This strategy acts as an insurance policy against catastrophic production line shutdowns.
Use this strict checklist before signing any long-term purchasing agreements. These questions reveal the true capabilities of a potential vendor.
Processing Capabilities: Do they have in-house slitting and stamping capabilities? Or do they require third-party processing? In-house processing drastically reduces lead times and improves accountability.
Consistency Tracking: Can they provide comprehensive batch-to-batch consistency reports? Ask for control charts showing their thickness and core loss variations over the last six months of production.
Certifications: Are their quality management certifications entirely up to date? Demand current proof of ISO 9001. If you operate in the mobility sector, IATF 16949 certification is absolutely mandatory.
Claims Resolution: What is their formal process for handling material defect claims? A good supplier offers a transparent, rapid root-cause analysis procedure.
Knowing exactly how a mill crafts these specialized alloys equips you with immense power. It allows buyers to ask the right technical questions during critical vendor negotiations. You no longer have to accept marketing claims at face value. You now understand how carbon reduction, precise cold rolling, and advanced annealing directly influence motor and transformer efficiency. This knowledge bridges the gap between engineering specifications and procurement realities.
Your next steps require decisive action. Advise your decision-makers to conduct physical or virtual audits of potential suppliers' rolling and annealing facilities. Look closely at their climate control and testing labs. Before committing to large commercial contracts, always request representative material samples. Send these samples to an independent laboratory for rigorous magnetic testing. Verifying core loss, dimensional tolerances, and coating integrity upfront will secure your project's success. It ultimately protects your company from costly downstream failures.
A: The silicon content typically caps around 6.5% for commercial viability. Higher levels offer excellent magnetic properties and near-zero magnetostriction. However, exceeding 6.5% causes extreme brittleness. This makes standard cold rolling nearly impossible without shattering the metal. Achieving higher silicon levels usually requires specialized, highly expensive chemical vapor deposition (CVD) processes rather than traditional rolling.
A: The coating type drastically changes downstream manufacturing. Organic coatings generally act as a built-in lubricant. They reduce friction during stamping, which significantly extends your stamping die life. Inorganic coatings, typically used for high-temperature annealing applications, behave differently. They can be much more abrasive and often accelerate tool wear during high-speed punching operations.
A: Magnetic aging increases core loss over time, steadily destroying a motor's efficiency. This happens due to residual carbon precipitating inside the metal lattice. Premium manufacturing prevents this through rigorous decarburization annealing. High-end mills utilize vacuum degassing and specialized furnace atmospheres to actively reduce the carbon content to below 0.005%, effectively eliminating the aging phenomenon.
A: Buying directly from primary steel mills is nearly impossible for R&D due to massive Minimum Order Quantities (MOQs). To source small batches, recommend partnering with specialized steel service centers or prototyping facilities. These intermediary businesses purchase large master coils and break them down. They can slit and shear material to provide you with manageable, pilot-run quantities for your testing.
